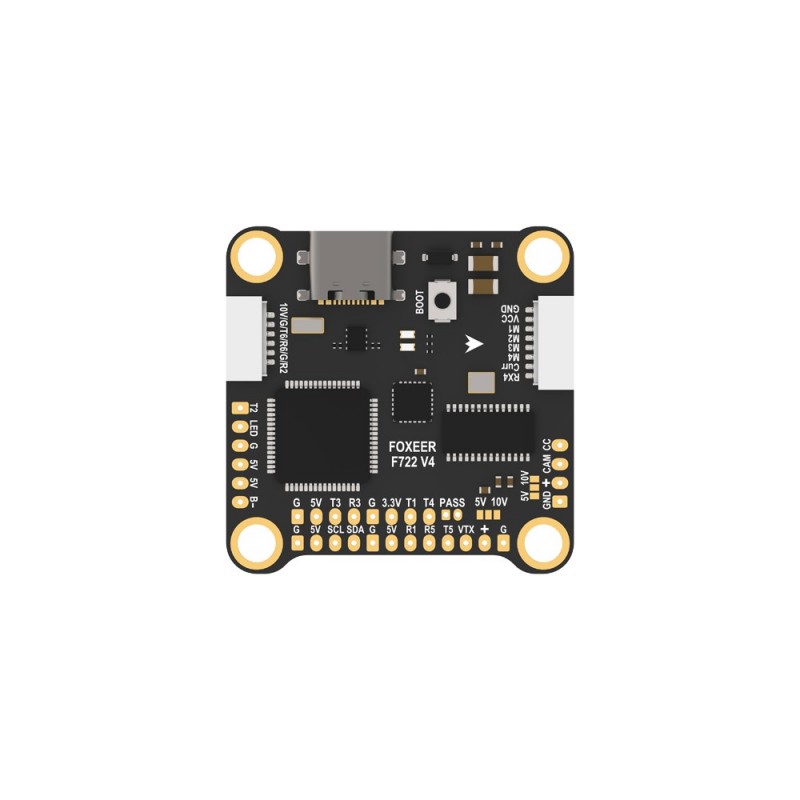

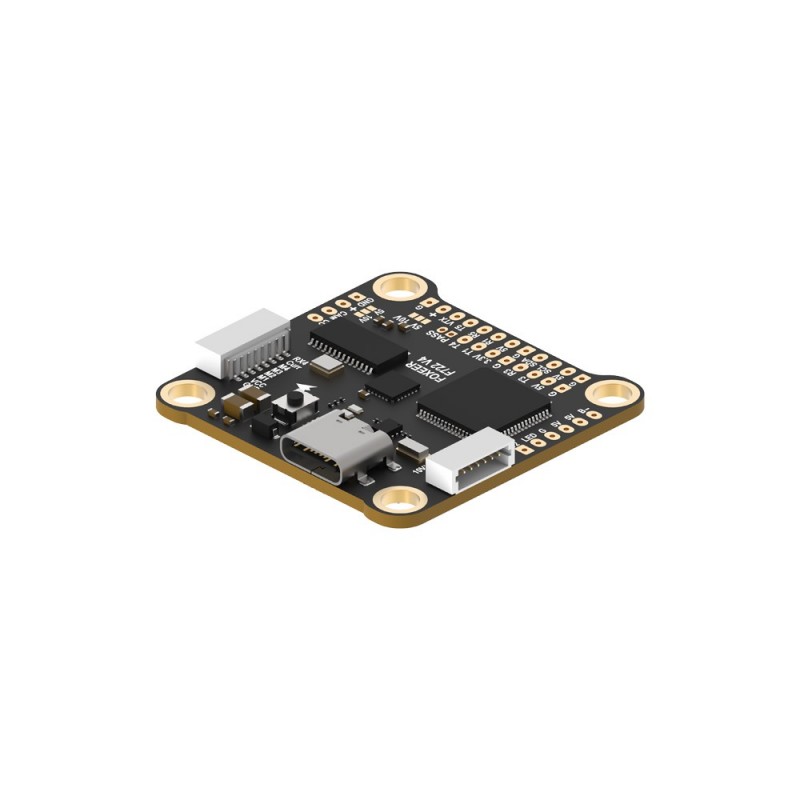

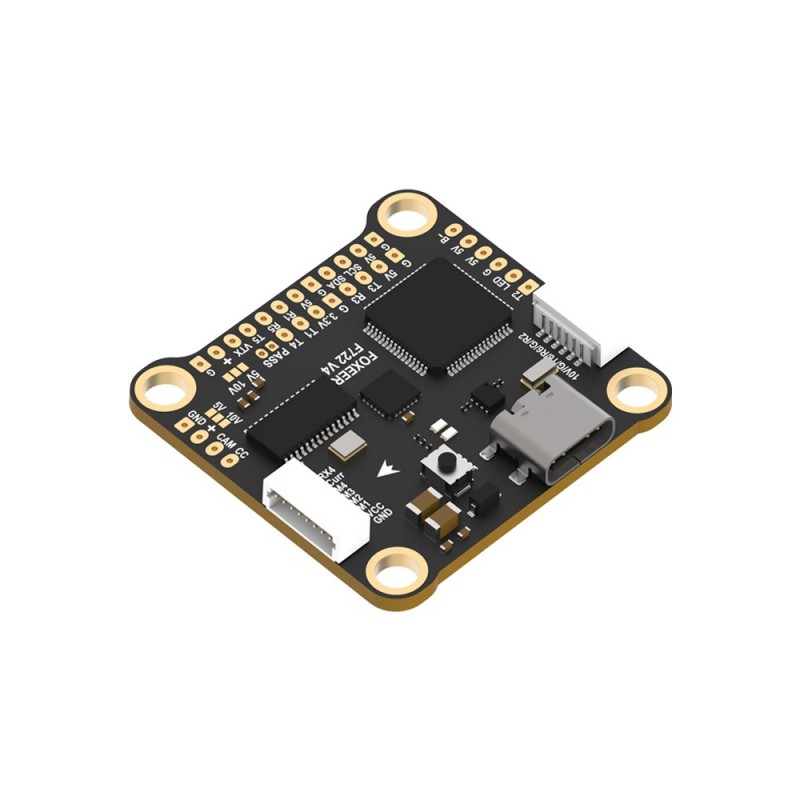

Foxeer F722 V4 MPU6000 8S Dual BEC Barometer X8 Flight Controller
Check out all of our Foxeer Products!
The Foxeer F722 V4 boasts a BEC Output of DC5V/2A and DC10V/2A, providing the necessary power for your additional components. With BetaFlight and Inav firmware, it offers seamless and efficient drone operation.
Enjoy the convenience of the BF OSD and the capacity of a 16M Flash Memory Black Box for storing your flight data. The controller features 5 sets of UART + Rx4 and supports ESC telemetry on RX4. This device is equipped with a DJI/HDzero connector and supports Smart Audio for an enhanced piloting experience.
Customize your flights with 1 set of 2812 LED and enjoy the versatility of a Type-C USB for easy connection. The controller supports X8 and requires CLI. The unit, measuring 37X37mm with a 30.5X30.5mm mounting hole and weighing just 7.7g, is designed for easy installation and lightweight operation.
The Foxeer F722 V4 operates efficiently between -20℃ ~ +55℃, tolerating humidity levels of 20～95%. It comes packaged with the FC, 4 rubber columns, and a cable, ensuring you have everything you need to get started.
Specifications
| Model | F722 V4 MPU6000 |
| CPU | STM32F722RET6 |
| Gyro | MPU6000 |
| Barometer | DPS310 |
| Power Supply | 4~8S Lipo |
| BEC Output | DC5V/2A; DC10V/2A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 5 Sets+Rx4 |
| ESC Telemetry | RX4 |
| Buzzer | YES |
| Connector | DJI/HDzero |
| Smart Audio | YES |
| LED | 1 Set 2812 LED |
| USB | Type-C |
| X8 Supported | Need CLI |
| Firmware | BetaFlight:FOXEERF722V4; Inav:FOXEERF722V4/FOXEERF722V4_X8 |
| Size | 37X37mm |
| Mounting Hole | 30.5X30.5mm,Φ4mm |
| Weight(g) | 7.7g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Package Includes | 1*FC, 4*Rubbers Columns, 1*Cable |
