Flywoo Goku F722 Mini Dual Flight Controller 20×20

Specifications:

FLYWOO F722 FC INAV Firmware Download

• Features

  • Single Gyro
  • Dual BECs (5V 2A & 9V 2A)
  • Dual Camera Switch & Cam Control
  • Barometer
  • 6 Uarts
  • 6 Motor Outputs
  • Supports SBUS, iBUS, Spektrum & Crossfire Receivers

  Specifications

  • Input Voltage: 3-8s (Max voltage 50V input)
  • MCU: STM32F722RET6 216MHz
  • GYRO: MPU6000

  • BARO: BMP280
  • FLASH: 16M
  • BEC: 5V 2A/9V 2A
  • UARTS: 6 (UART1,2,3,4,5,6)
  • Motor Outputs: 6
  • Dual Camera Switch
  • Supports Camera Menu Settings (Cam Control)
  • Firmware: FLYWOOF722DUAL
  • Dimensions: 30x30mm
  • Mounting: 20x20mm, M3
  • Weight:5.3g

  Includes

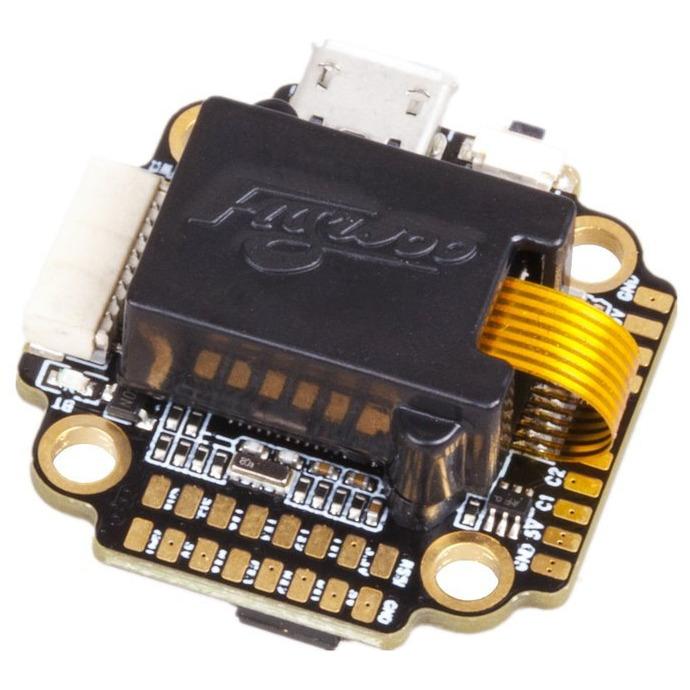

  • 1x Flywoo Goku F722 Mini Dual 20×20 Flight Controller (This Version Has 2 Gryo’s and Contains The Black Box On Top)
