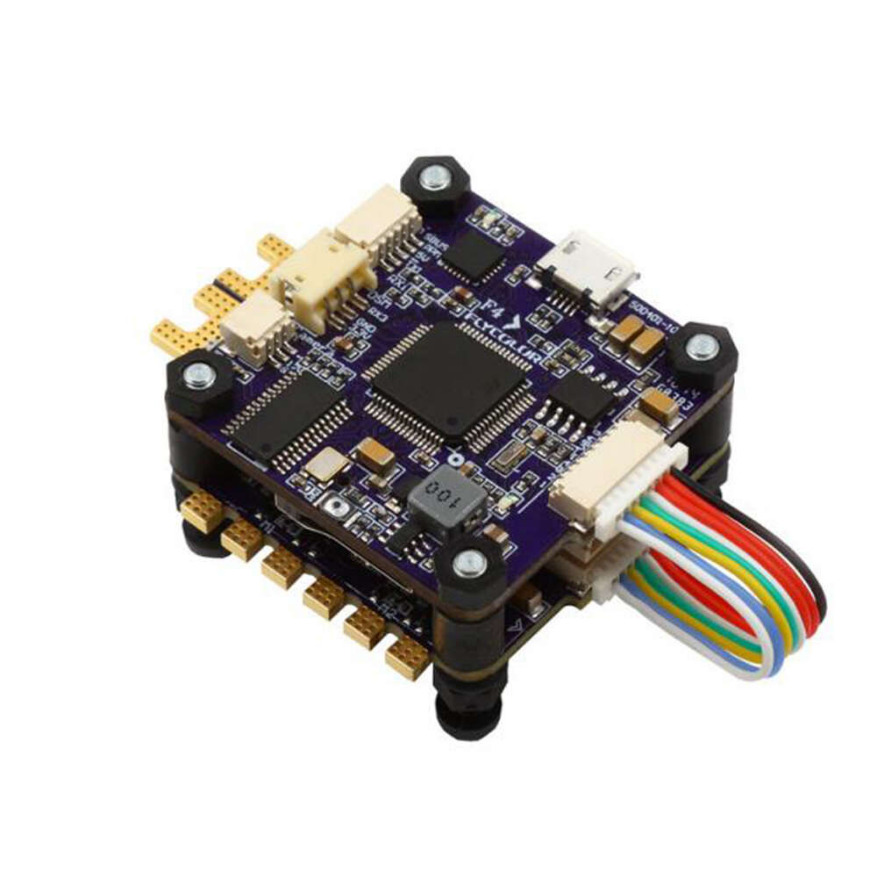

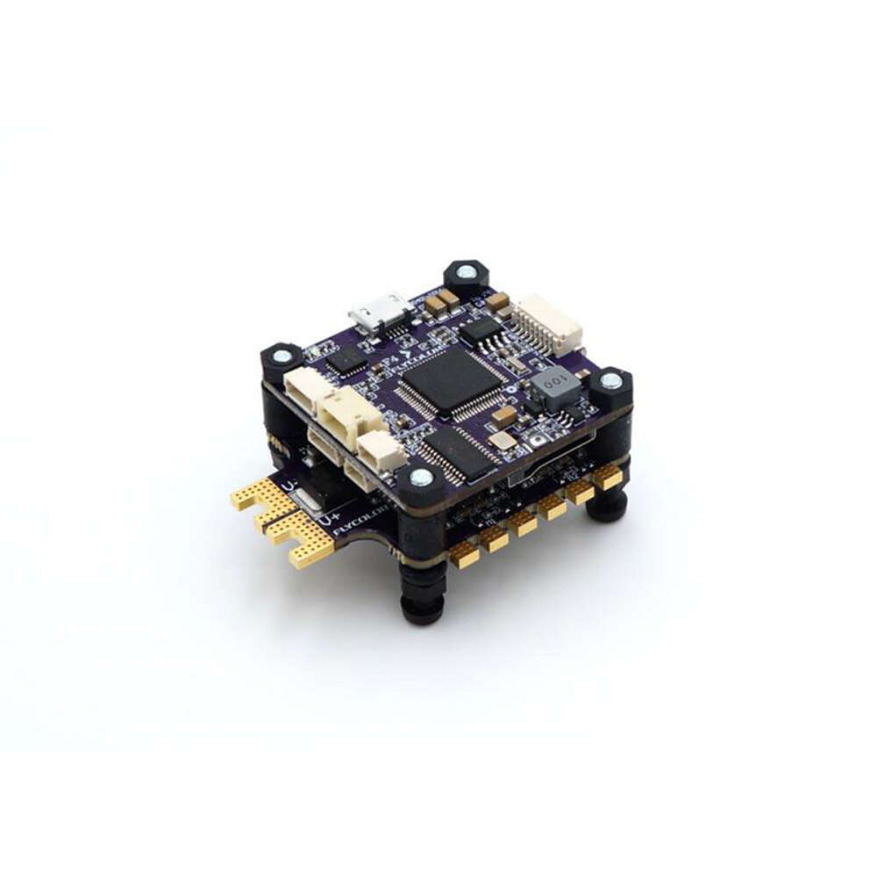

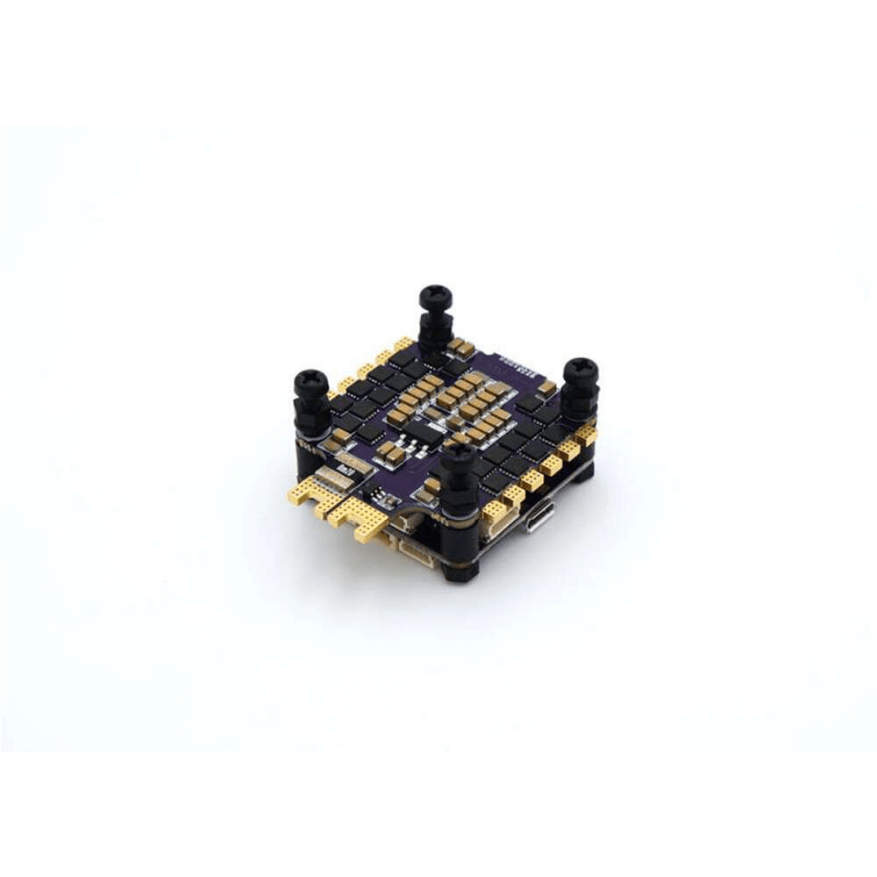

Flycolor X-Tower F4 FC – 40A 4-in-1 ESC 3-6s Stack
Features
- MCU: STM 32 F05, ARM 32 bit Cortex MCU, frequency up to 48 MHz
- ESC firmware: Flycolor_X_Cross_BL_32
- Two layers tower structure between 4 in 1 ESC and FC, using cable for quick connection, using vibration damping screw for supporting, reducing the effect of vibration on Flight Control
- Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
- The code supports regular 1-2ms pulse width input, as well as oneshot125, oneshot42 and multishot
- Dshot signal is supported at any rate up to at least Dshot 1200
- Metalized soldering pad
FC
- MCU: STM32F405
- Gyro: MPU-6000 SPI
- FC Firmware: Betaflight_OMNIBUSF4SD
- Supports PPM, SBUS, SPEKTRUM 1024/2048 etc. Remote control/ receiving mode
- Supports max 32G TF card, which can record and save more flight/ black box data
- FC integrated OSD, users can adjust OSD parameters via Betaflight configuration
- FC integrated 3.3V, 5V, 12V for receiver, VTX, camera, buzzer, LED and other peripheral devices
- Provided several silicone cables for FC, and will give you an unprecedented experience for assembly
- Install holes: 30.5*30.5mm, M3
Specification
- Model: X-Tower F4-40A
- Con.Current: 40A
- Burst(10S): 45A
- FC Vout: 3.3V/5V/12V
- Lipo: 3-6S
- Weight: 20g
- Size(mm): 48.5*41.5*18
