TBS Lucid Freestyle Flight Controller (20×20)
*Early production samples had the UART3 RX and TX markings flipped on the silkscreen. This issue has already been addressed, and the production units will have the corrected, proper markings.

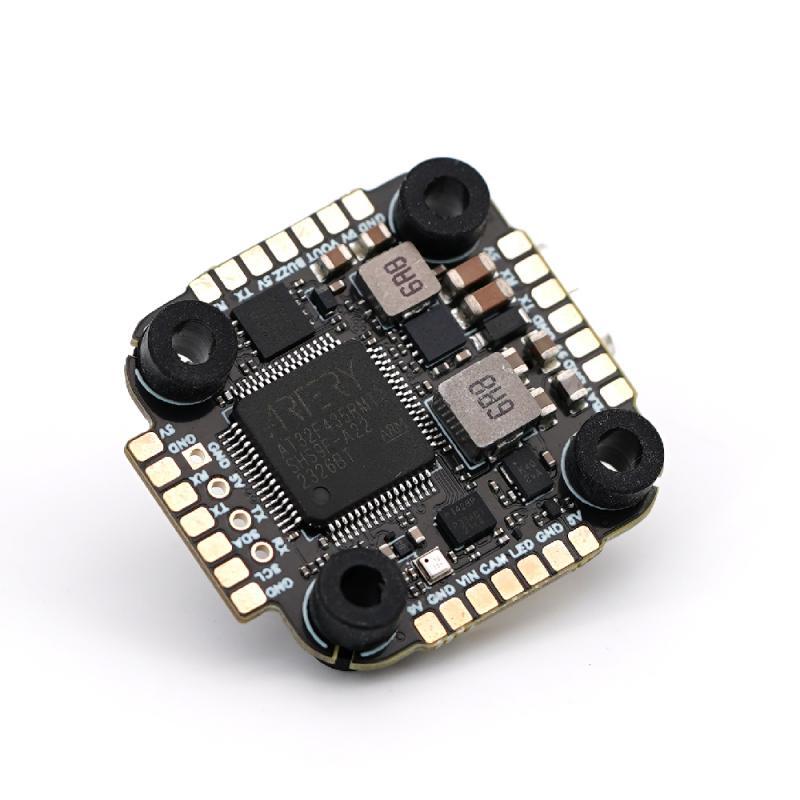

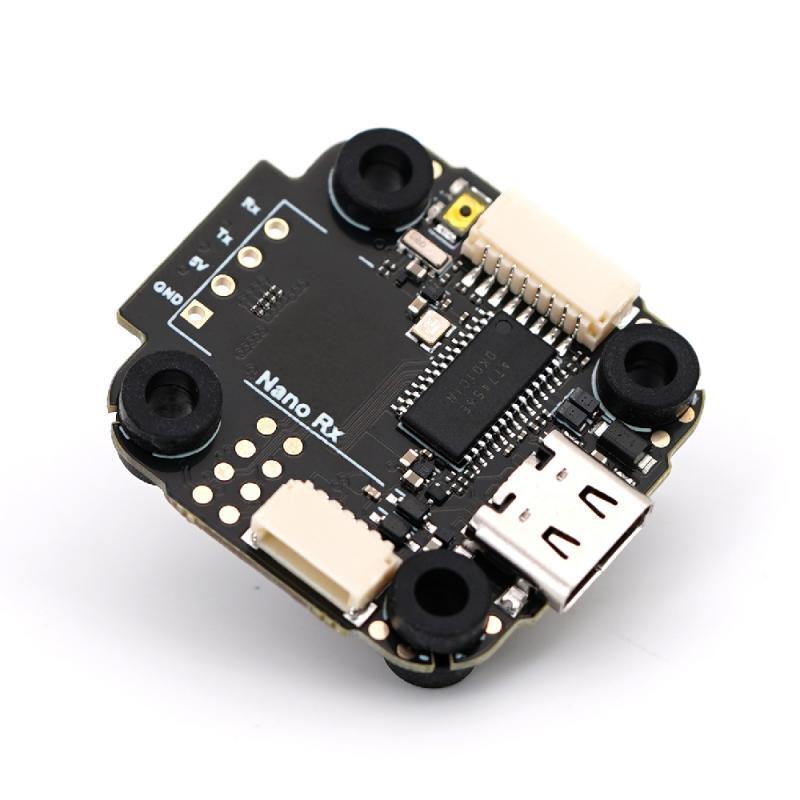

The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.
The TBS Lucid Flight controller is a 20×20 masterpiece that is built for the Lucid flight stack, but compatible with all 20×20 ESCs. It is similarly designed for the TBS Crossfire & TBS Tracer ecosystem, but will work with any radio receiver – we don’t judge 🙂
There are plug & play connectors for the DJI O3 digital system and 4in1 ESCs, following the Betaflight connector standard. The solder pads for auxiliary devices are designed and arranged to be easy to solder and logical for installation in your favorite drone frames, such as the TBS Source One.
For the professional pilot, a MPU6000 (Pro) variant is available (those who know, will know), while the ICM-42688P (Freestyle) based version offers a state-of-the-art gyro solution at a better price.
Specifications
| MCU | AT32F435RMT7, 288MHz |
| Gyro | ICM-42688P |
| Motors | 4 motors, with telemetry and current sensor |
| BEC | 9V, 2.5A. 5V 2A |
| OSD | AT7456E |
| Blackbox | 8M |
| UARTs | 6 (UART1/UART3/UART4/UART5/UART7/UART8) |
| Input | 3S-6S |
| Size: | 31mm*29mm |
| Mounting | 20mm*20mm |
| Weight | 4.51g |
Default/recommended port assignment:
- UART2: ESC Telemetry
- UART3: DJI O3 Air Unit
- UART4: DJI O3 SBus
- UART5: CRSF Rx
- UART7: GPS
- UART8: Smart Audio

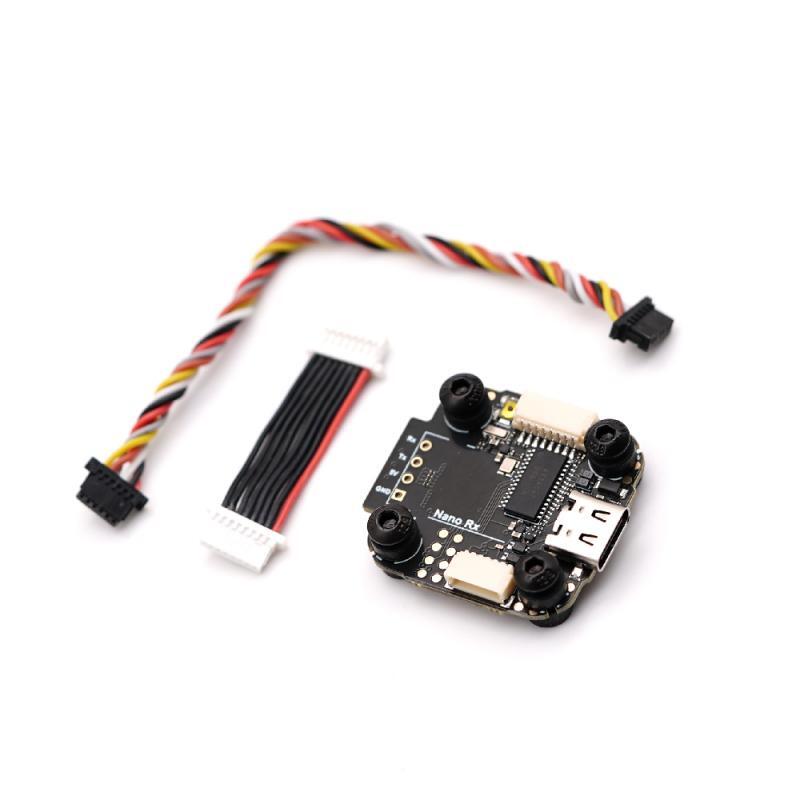

Includes
- TBS Lucid 20×20 FC
- FC-to-ESC cable (plug & play)
- DJI O3 cable (plug & play)
- 4pcs M3 rubber dampers
- 4pcs M3x8 screws
