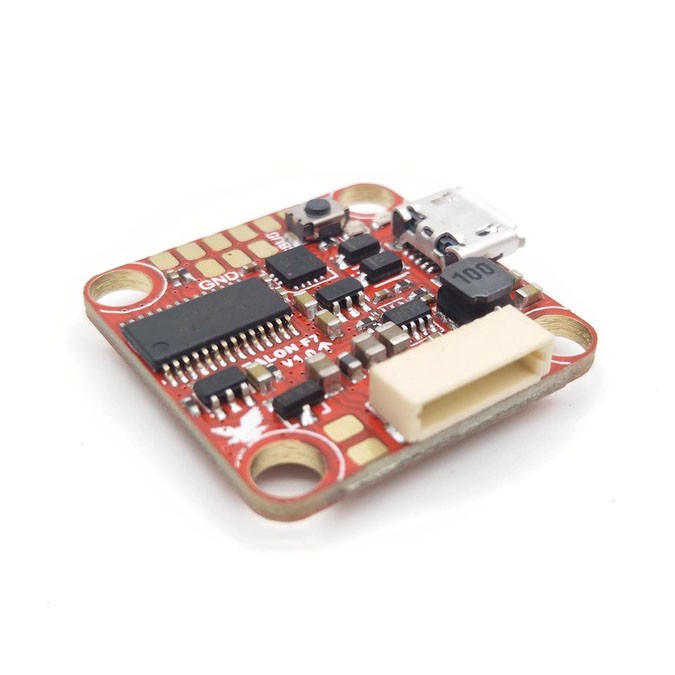

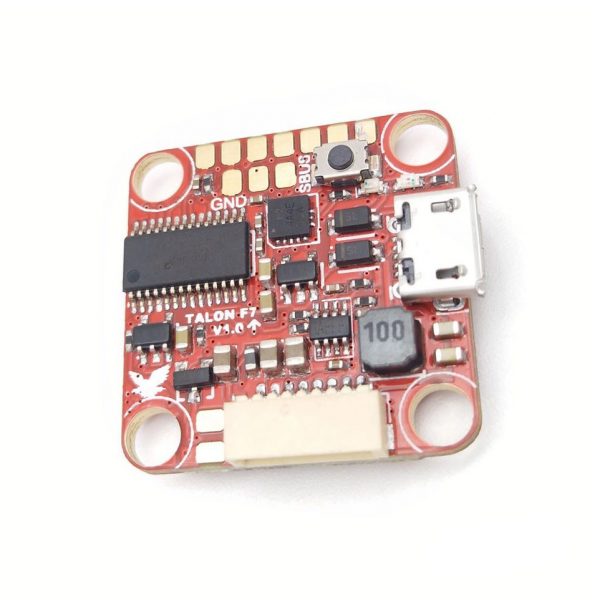

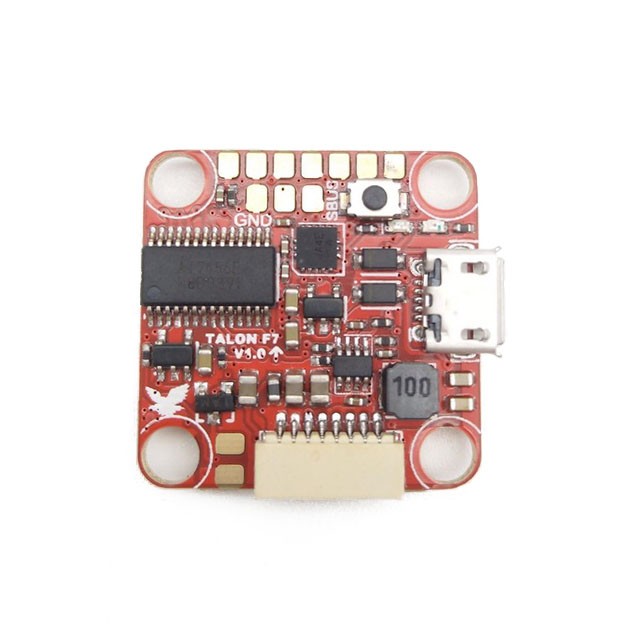

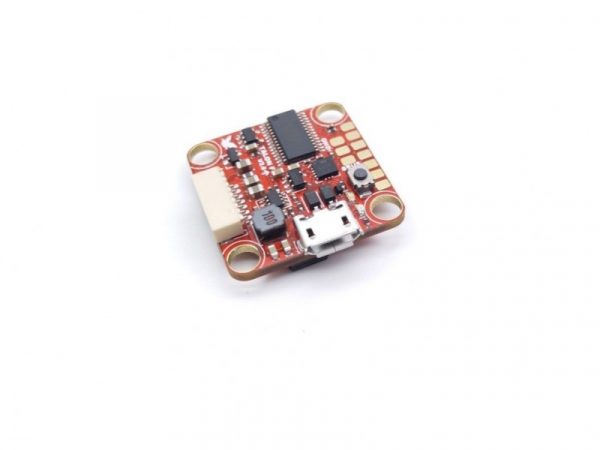

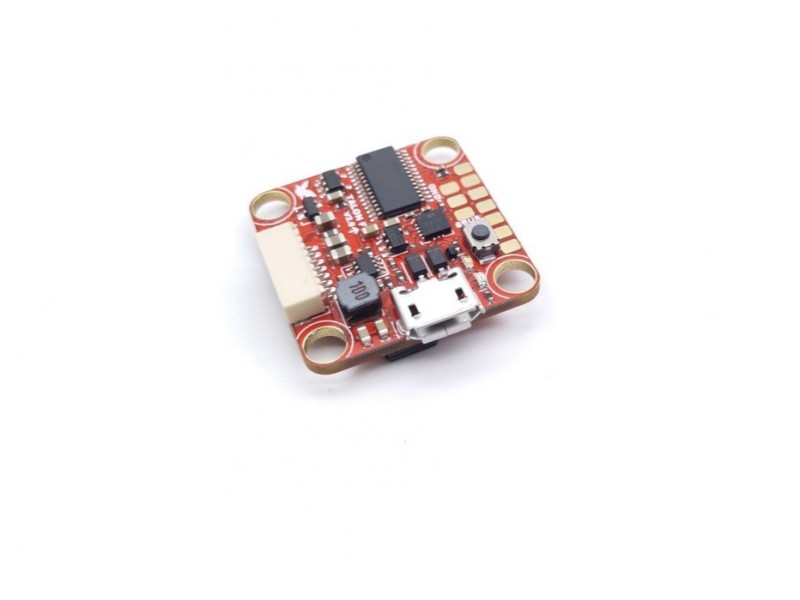

Talon F7 BB 20X20 Flight Controller
Now with Black Box! A new generation of Talon is here. With a F7 processor and 8S capable, Talon is the only 20X20 on the market with a STM32F722RET6 216MHz processor.  Built in Betaflight OSD, 6 UARTS, and dedicated LDOs for cleaner gyro and OSD signals makes Talon F7 the most powerful 20X20 FC on the market. One of the features Talon F4 users praised is the choice of using the 8 pin harness or direct soldering motor ports to the ESC. We’ve kept that option, while still adding more features, by letting you remove the plastic connector to reveal motor ports. Now includes 2 harness cables for direct pin to Spedix GS25A and Airbot Ori32.
Main Features

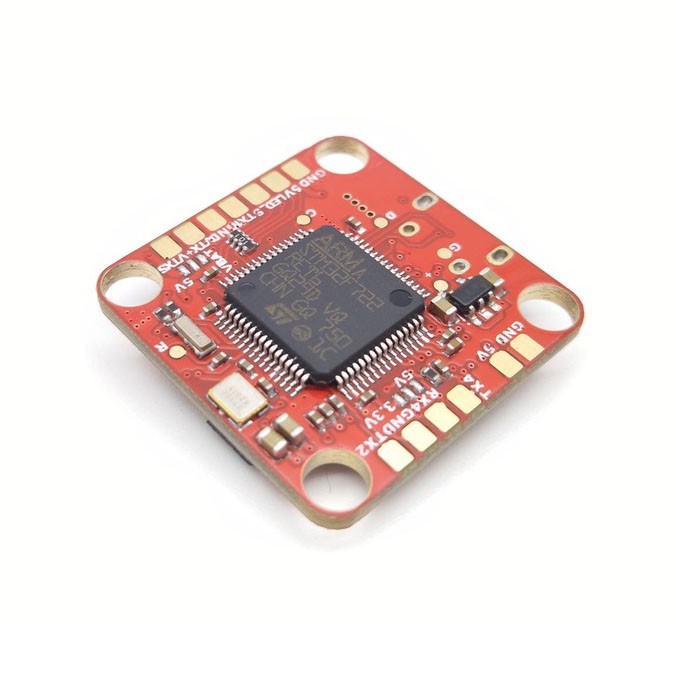

- MCU: STM32F722RET6 216MHz
- 6-Axis ICM20602 32K
- Built in Betaflight OSD
- Up to 8S (36V) direct battery power
- Buzzer pads for external buzzer
- Build in voltage monitoring resistor
- 5V 2A BEC
- 16MB Black Box
- Dedicated LDO for gyro for cleaner gyro signal
- Dedicated LDO for OSD for cleaner OSD signal
- Led strip shares 5V with 5V/2A BEC
- 6 UARTS: UART1, UART2, UART3, UART4, UART5, UART6
- Built in camera control pin with resistor and capacitor
- 4 Full UARTS with RX/TX pins
- Logical pin layout for cleanest build possible
- 8 pin 4 IN 1 ESC plug (Direct solder motor ports underneath)
- Remap able LED pad for additional motor output
- TX3 & RX3 can be used for I2C for external compass
- 5V or 3.3V selectable receiver power
- 5V, VBAT selectable VTX and CAM power

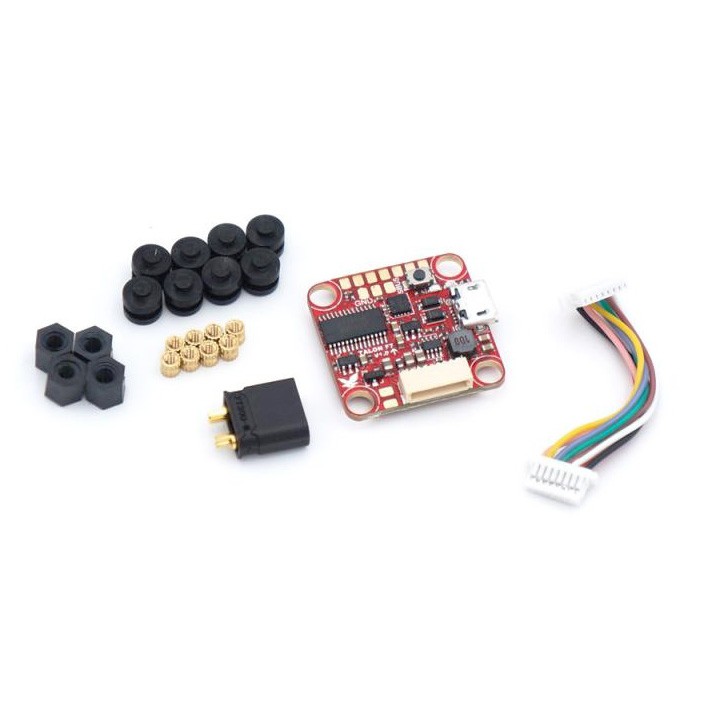

- Includes * 2 pin connector harness cables for direct pin to Spedix GS25A and Airbot Ori32, 8 grommets, M3 to M2 nut adapters, M3X5 standoffs
Betaflight Target: CLRACINGF7
The included Aikon harness is for the Aikon AK32 30X30 ESC. This was a mistake by us and we are very sorry. Please re-pin for the 20X20 Aikon AK32PIN as pictured below.
If there is a delay in startup for the CLF7 target, type the commands below in the CLI
resource i2c_sda 2 none
resource i2c_scl 2 none
save
this will fix the delay start up problem

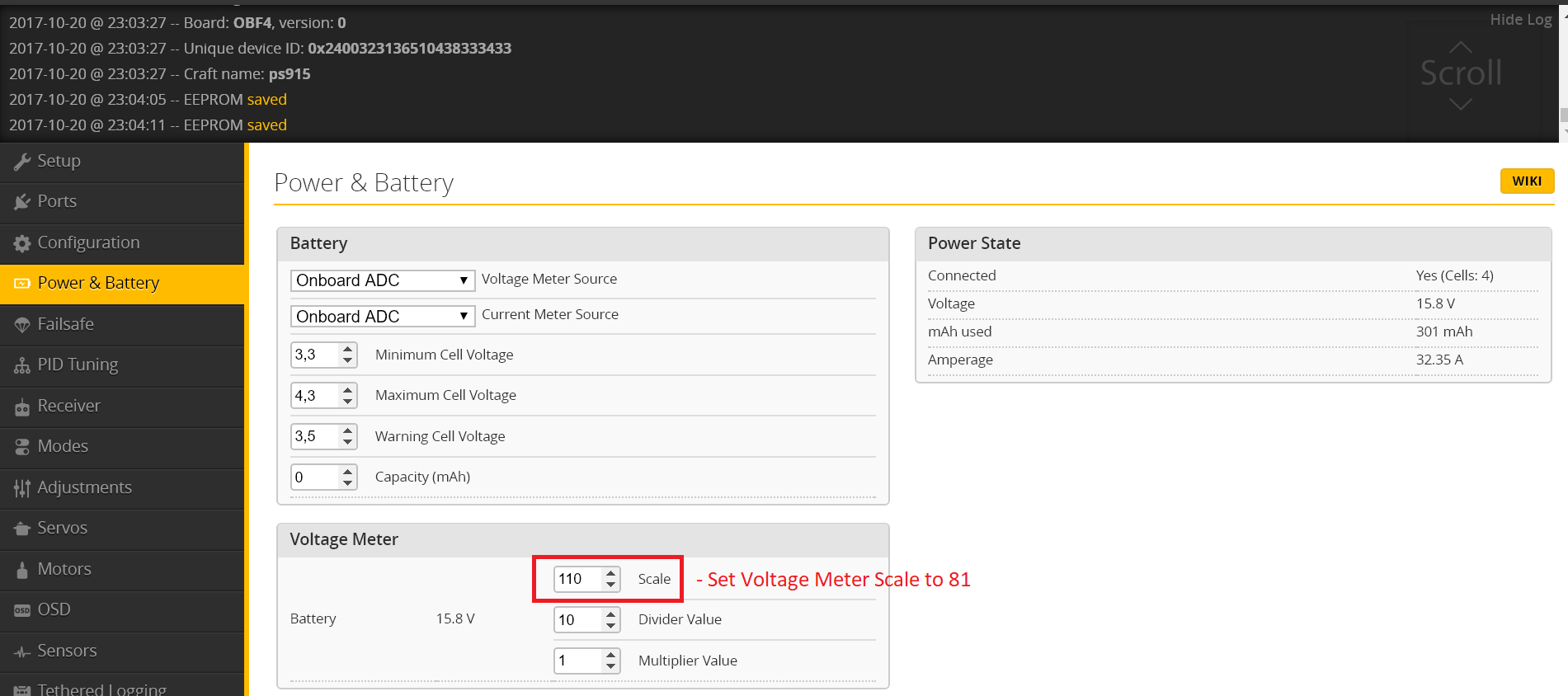

For Talon F7 with Black Box please set your voltage scale to 81 for it to work properly

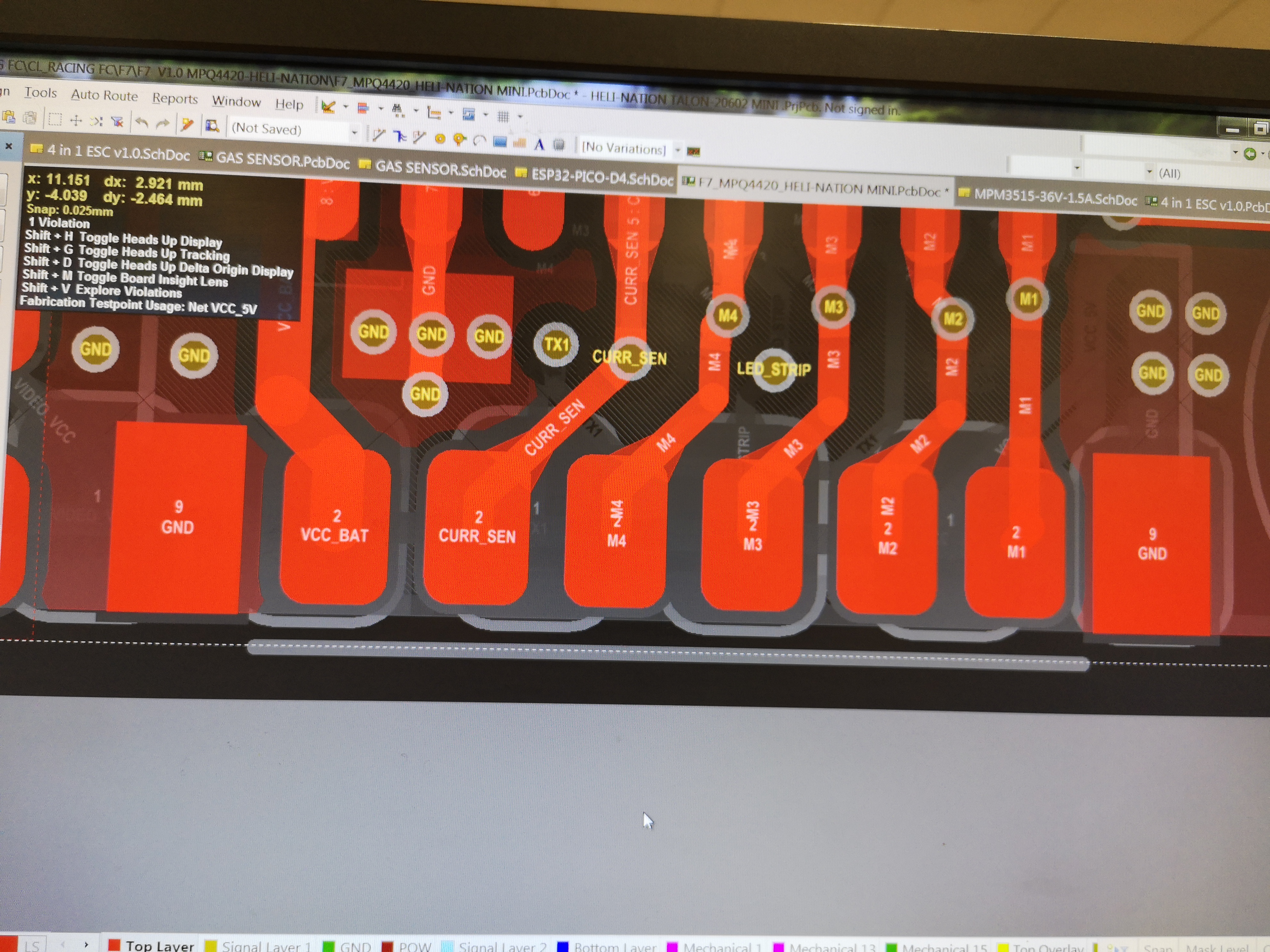

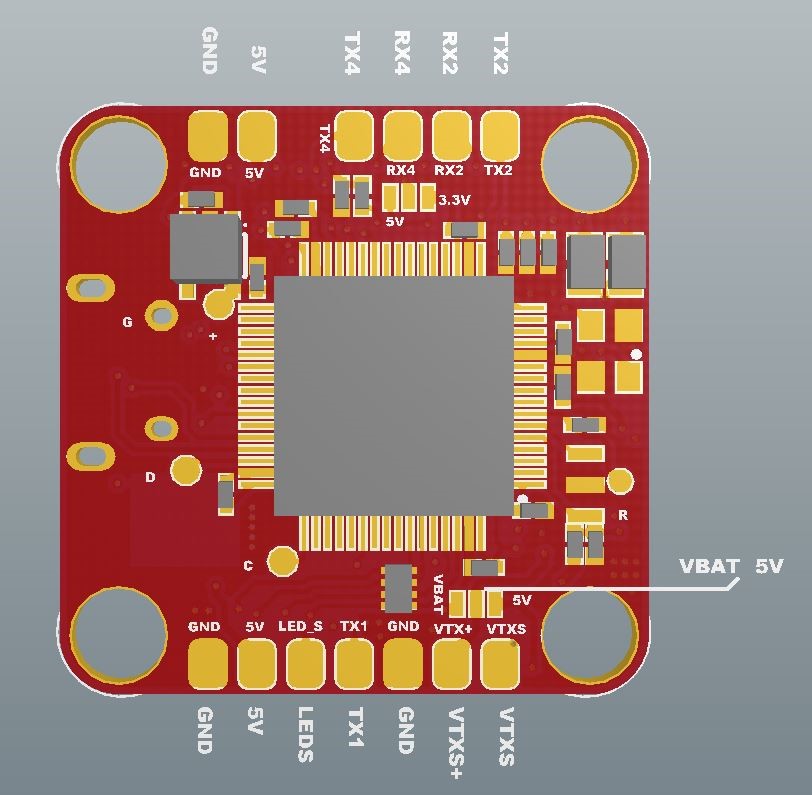

WARNING! If you remove the JST connector to direct solder, the pinout is not the same as the JST connector. Please use the diagram below to see the correct pinout. Please pay attention to VBAT and Ground!
