Hobbywing XRotor G3 Stack ( 60A 4-in-1 ESC + Flight Controller)
This is their newest version, the G3 – It out performs anything we have ever made! Check out the F4 G3 Solo!

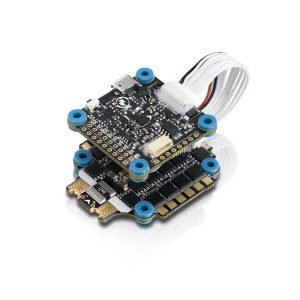

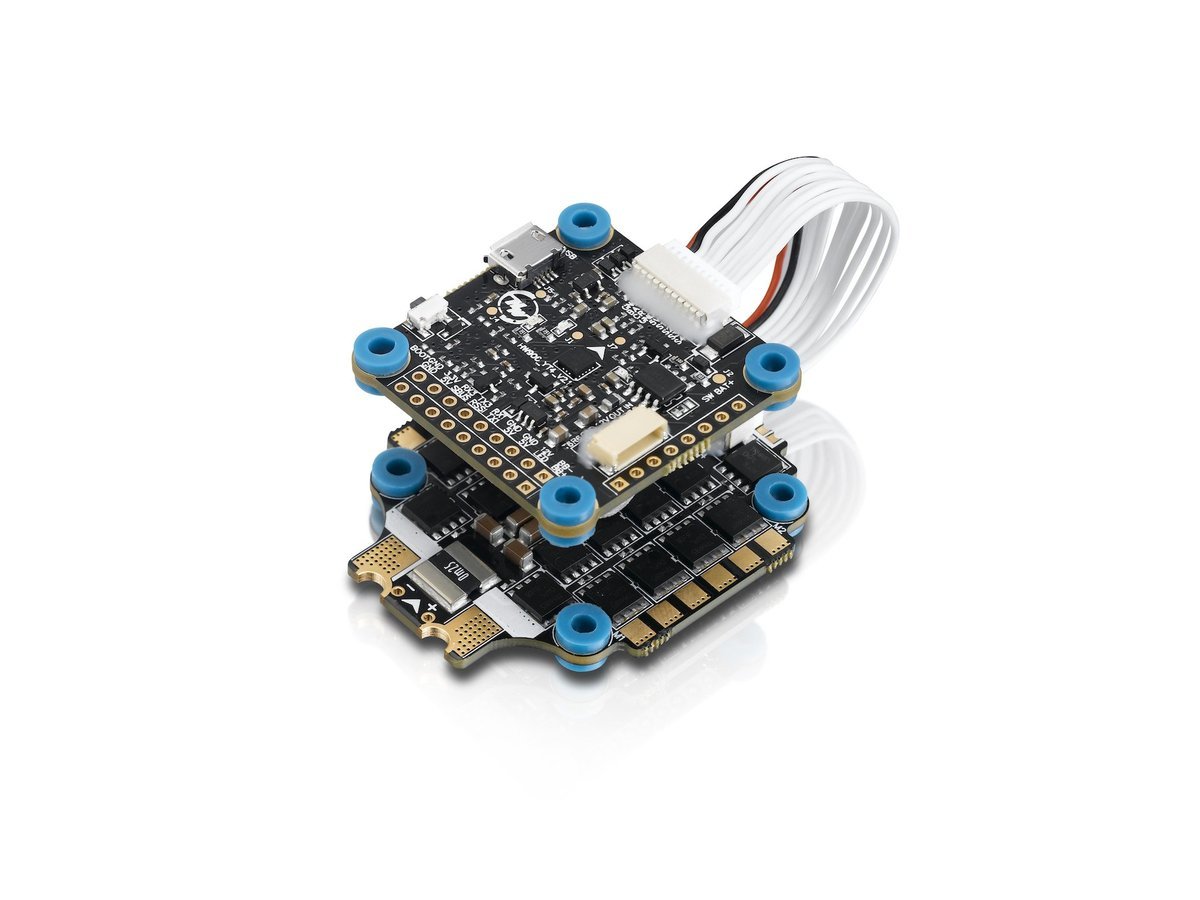

This is the all new XRotor Micro 60 Amp ESC with the G3 stacked on top, A Real Power Sandwich!
Generation 3 Flight Controller Stacked With The Industry’s Leading ESC, We Present The XRotor G3 60Amp Stack!
- High-performance 32-bit microprocessor with the running frequency of up to 48MHz for excellent performance.
- BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S.
- All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
- The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.
- The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
- Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.
- The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.
- Onboard 5V BEC, powering different accessories such as FC, VTXÂ , Camera, LED lights and etc.
- Super-high Running Frequency

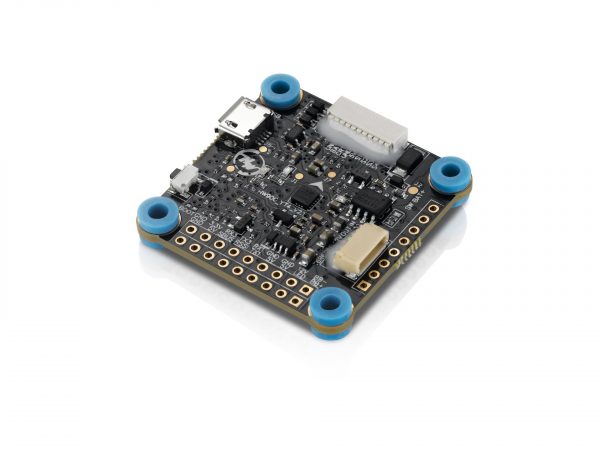

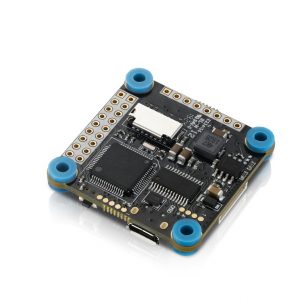

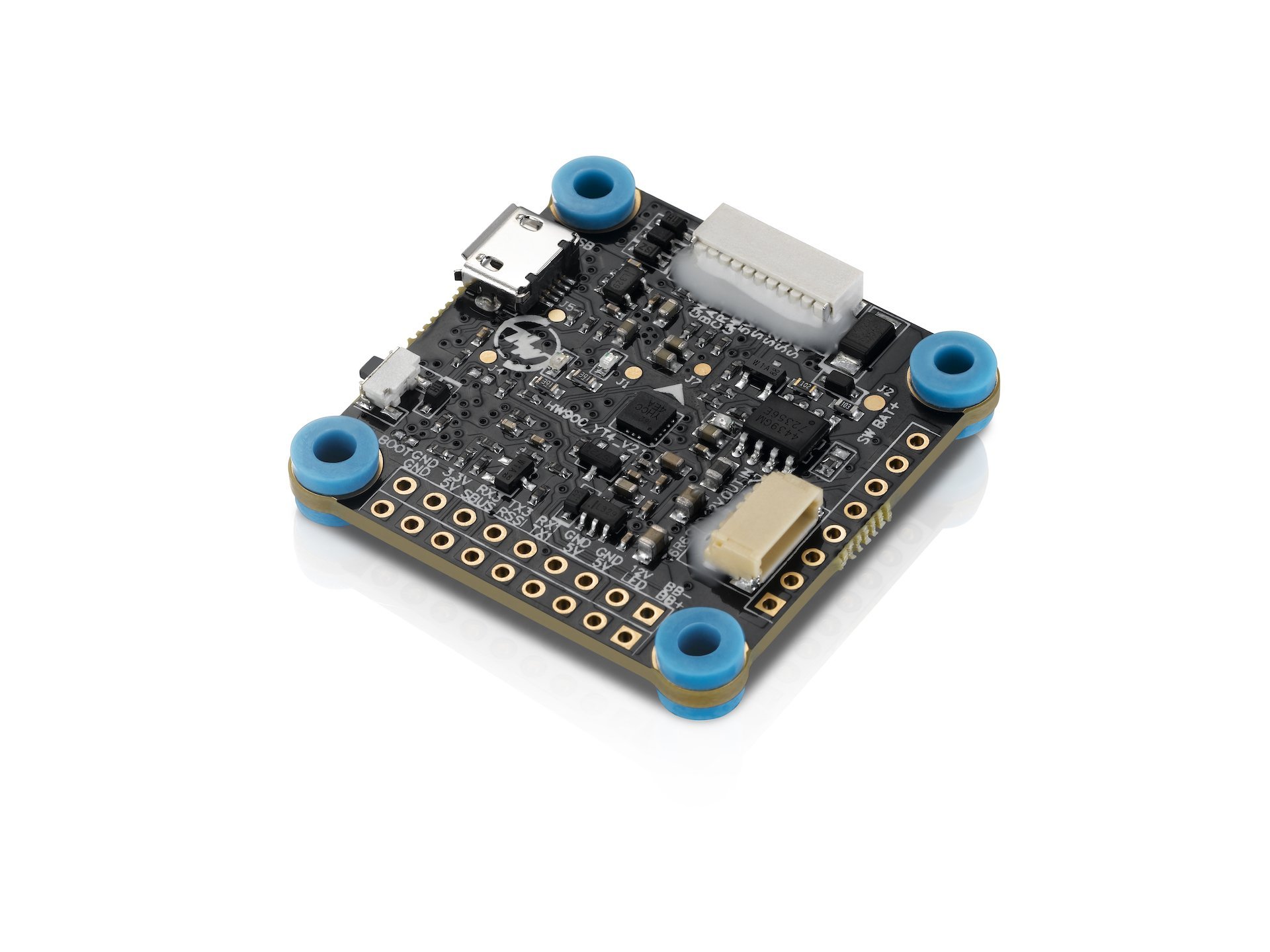

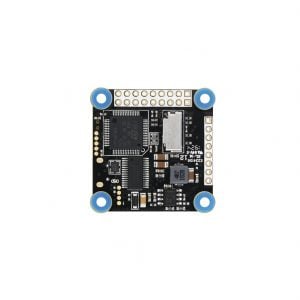

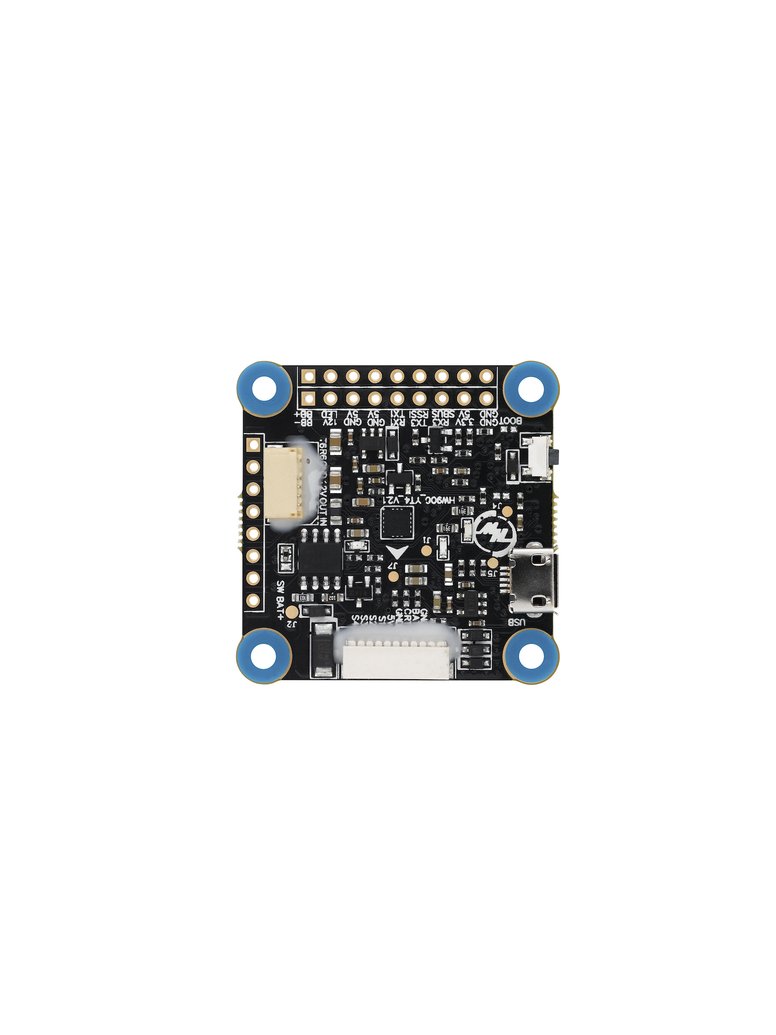

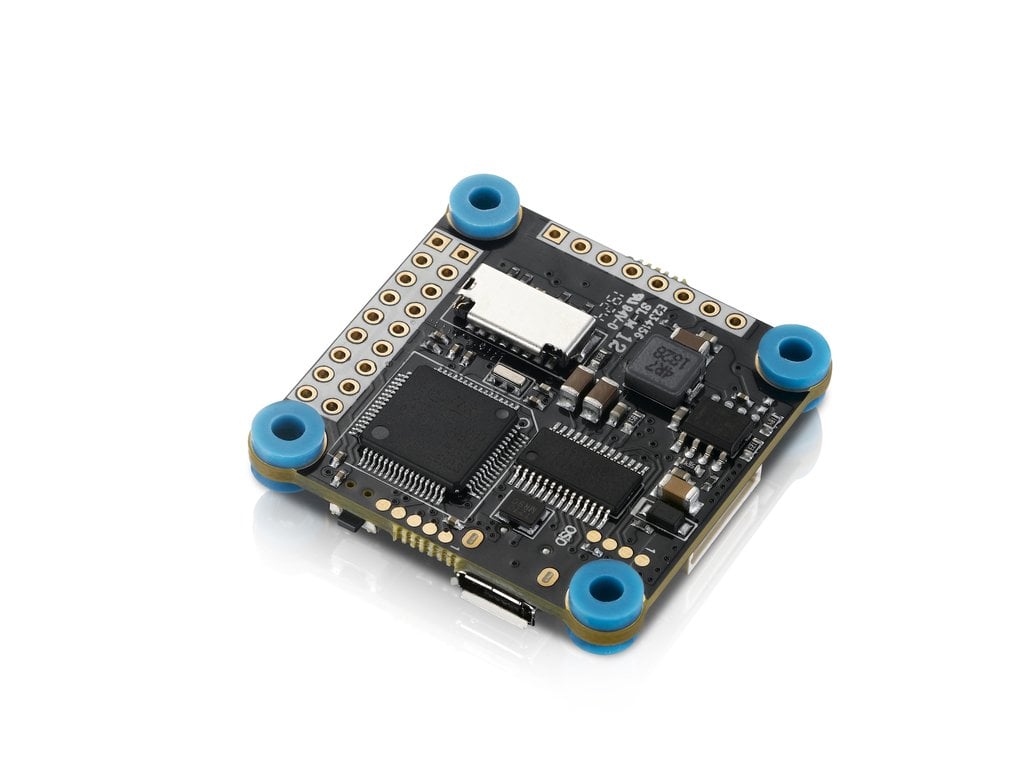

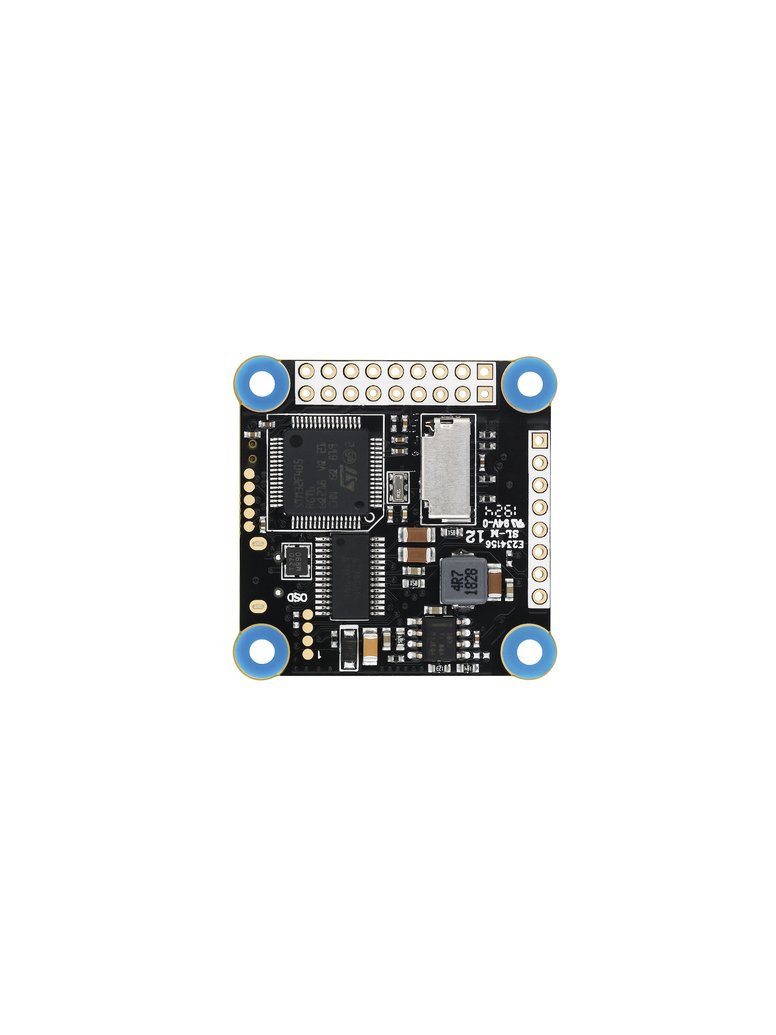

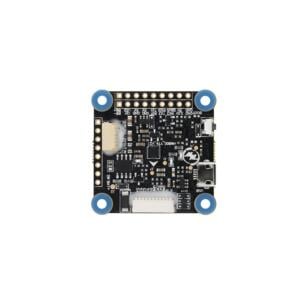

The STM32F405 MCU which features the powerful computing capability and super-high running frequency allows the FC to run the PID and gyro with higher frequency. DS - DShot 150/300/600/1200, Oneshot125, Oneshot42, Multishot Modes Supported
Besides the latest Dshot 150/300/600/1200 mode, the FC also supports the regular PWM mode, Oneshot125 mode, Oneshot42 mode and Multishot mode.
- TF-card Insertion Supported
Onboard OSD microchip allows users to easily adjust various (OSD) parameters via the Betaflight/Cleanflight software.
- Onboard OSD Microchip
Onboard OSD microchip allows users to easily adjust various (OSD) parameters via the Betaflight/Cleanflight software.
- BetaFlight/Cleanflight Firmware Ready
The FC which supports Betaflight/Cleanflight firmware & allows parameter adjustment via Betaflight /Cleanflight software is more applicable to FPV flying & racing.
- Perfectly integrable with the Hobbywing 4IN1 ESC & VTX (video transmitter)
It’s easy to wire and install when pairing the FC with a Hobbywing 4-in-1 tower ESC & HOBBYWING VTX (Video Transmitter).
 Model
|
XRotor Micro 60A 4in1 BLHeli32 6S |
SKU
|
30902063 |
Application | FPVs with 130-280mm Diagonal Wheelbase |
LiPo Power input | 3S-6S |
Cont.Current
|
60Ax4 |
Burst Current | 80Ax4 |
BEC Output |
5V@1.5A
|
Input wires | 12AWG-130mm* (Red/Black) |
Output Wire | No wires but solder tabs |
Connectors (In/Out) |
XT60 (w/ Wires Soldered on) /no |
Weight / Size | 15g / 52x42x6.6mm |
Mounting holes | 30.5×30.5mm |
Throttle Calibration | Supported |
ESC Programming | BLHeliSuite32 |
DEO | Supported |
OneShot Mode | Supported |
Timing | Supported |
Motor Rotation | Supported |
* Note: All the wire length above is the original length, not the length you see from the outside..
Please ensure that you’ll solder the capacitor included in the box onto the ESC when soldering input wires, otherwise, failing to do so ESC will get burnt/damaged.
Manual For This Stack’s FC Board
