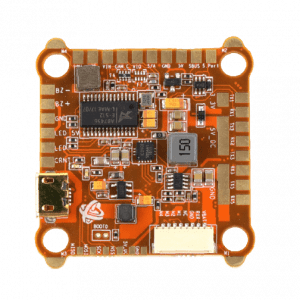

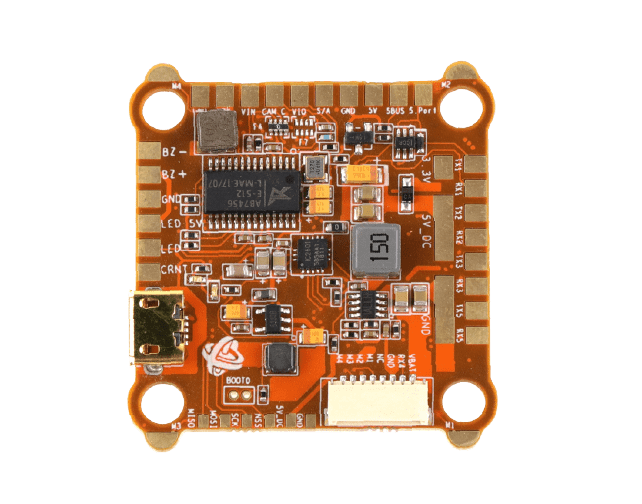

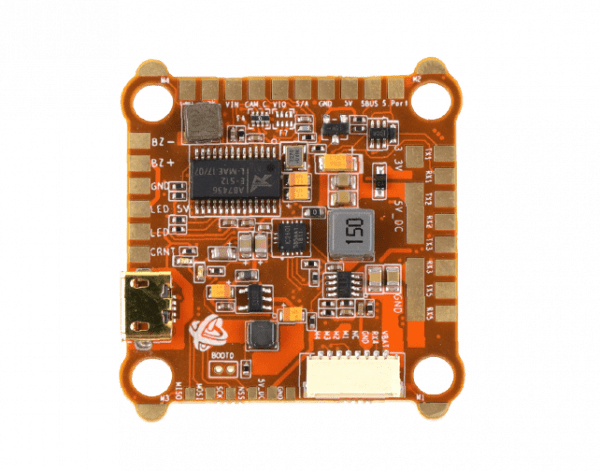

Helio Spring IMU-F V2 Flight Controller

Helio Spring IMU-F V2 Flight Controller

This powerful Flight Controller from Helio uses two processors to boost responsiveness and accuracy. The Spring IMU-F V2 comes preloaded with ButterFlight, an awesome alternative to BetaFlight. Read more about it at http://butterflight.co/.

Butterflight isn’t being updated currently, the platform that works best with these flight controllers is going to be Emuflight!

Check Out The Helio All In One Version!

Truly Freeing

• Supported by multiple open source flight controller software including ButterFlight’s 3.3+ most current technologies, Still BetaFlight Compatible

Natively Fast

• True 32khz processing without overclocking

IMU-F

• Never before seen IMU-f system an advanced inline discrete filtered gyro that is transparent to the flight controller
• With a super clean discrete filtered gyro, more processing power is available for flight controller logic and future feature updates without causing slowdown or issues during flight

Helio Gyro

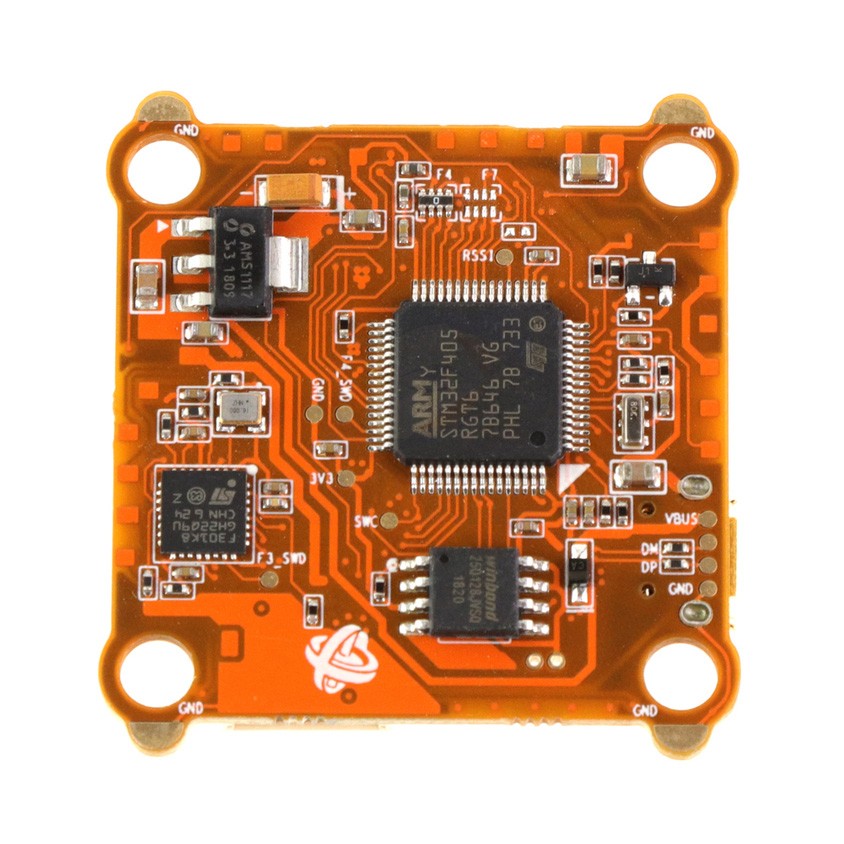

• The hardware contains both an f3 (IMU-F) and an f4. The gyro is a IMU 20601.

Tech Specs

Processors: F4 & F3, STM32F405 & STM32F301
IMU:  ICM 20601
OSD: Full Betaflight OSD support
Motor Outputs: Full DSHOT and MULTISHOT support.
Receiver Support: PPM, S.Bus (inverter built-in), DSM, HoTT,  SRXL, CSRF, FPort ready. 5V or 3.3V supply for receiver.
Telemetry Support: FrSKY Smart Port, FrSKY Sensor Hub, HoTT Telemetry, SRXL, CSRF, FPort ready. Built-in inverter for FrSKY telemetry.
Serial Ports: 5 full serial ports (UARTs). UART1 and UART2 have inverters for S.Bus and SmartPort telemetry.
Buzzer Port: Dedicated port for 5V (100mA max) buzzers.
Analog Inputs: Voltage sensing up to 26V, current and RSSI inputs (3.3V max).
Power: VBAT up to 6s with voltage regulator 2.5A continuous 3.2A burst. Or 5v in (switchable with jumper pads)

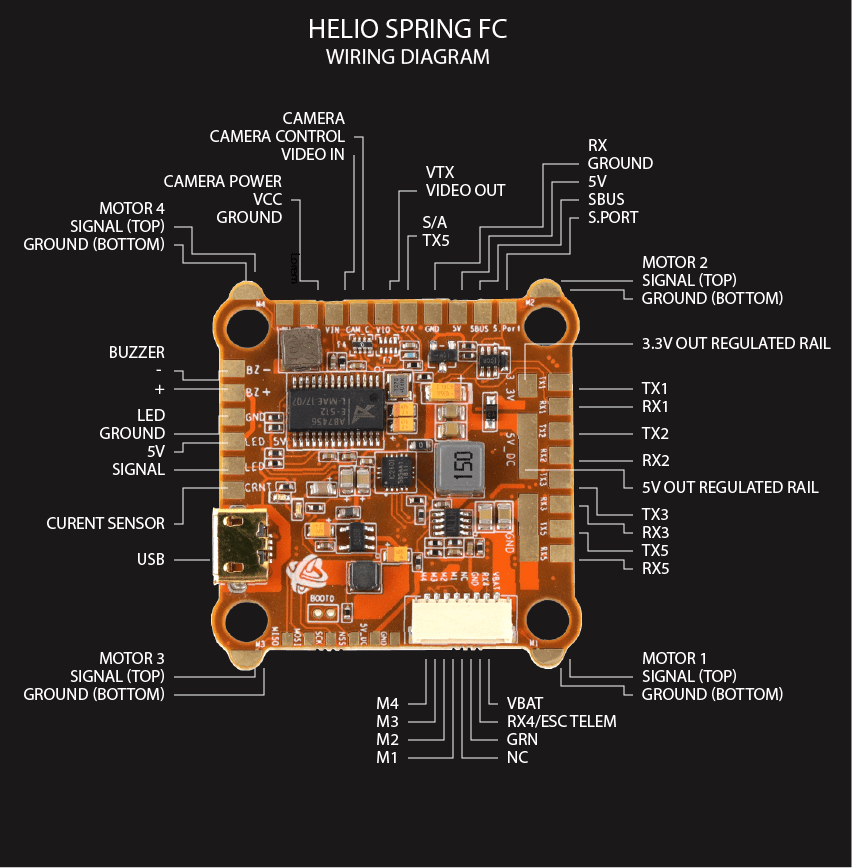

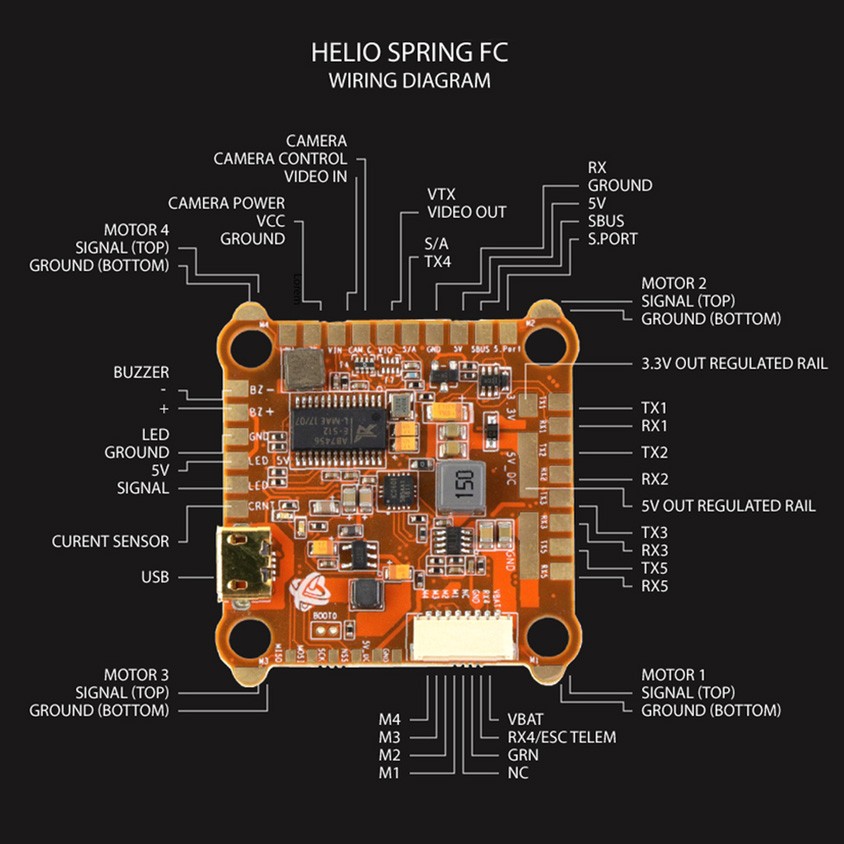

Wiring Plan
