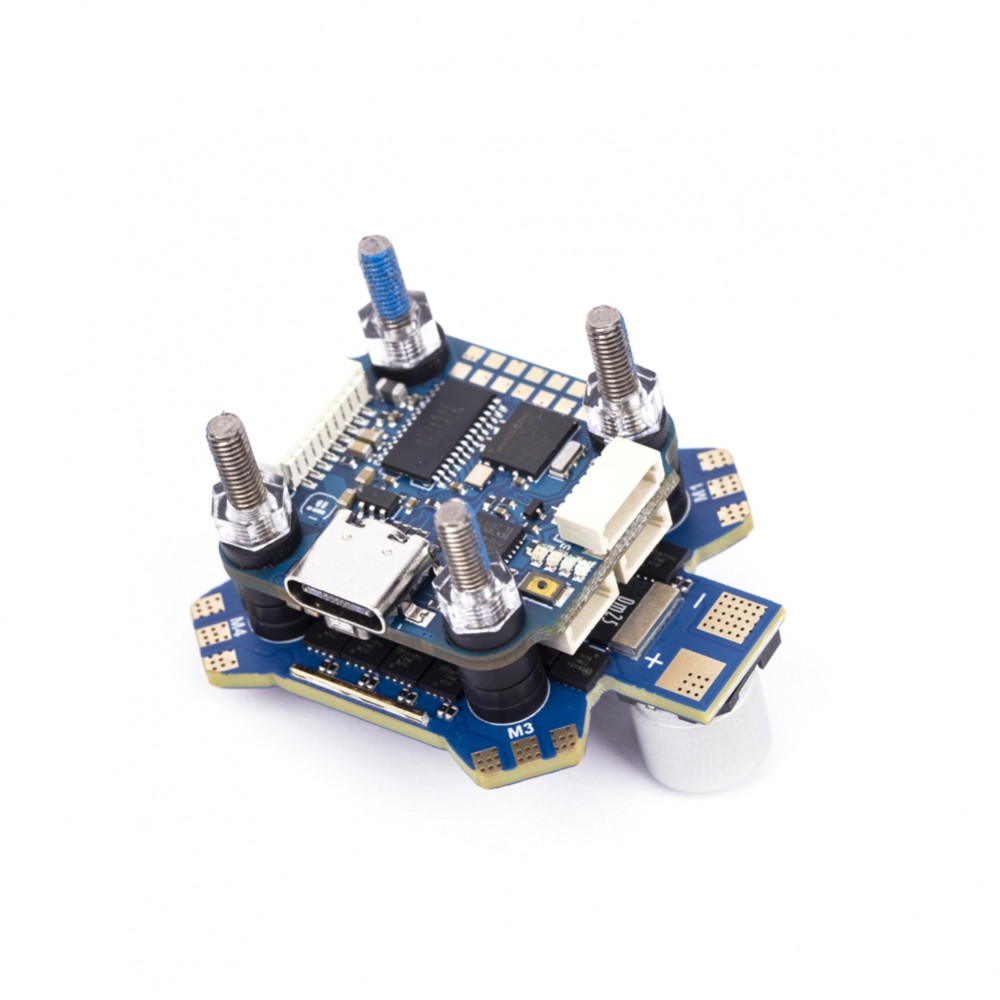

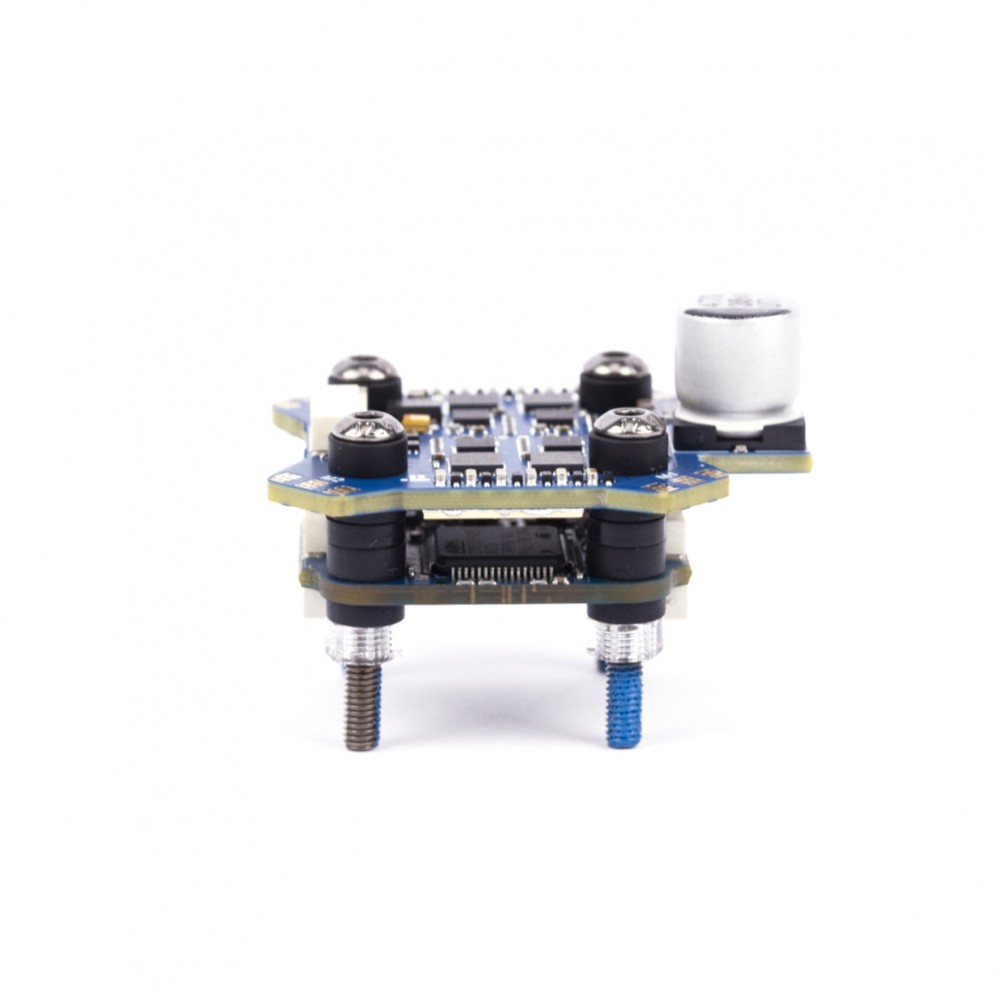

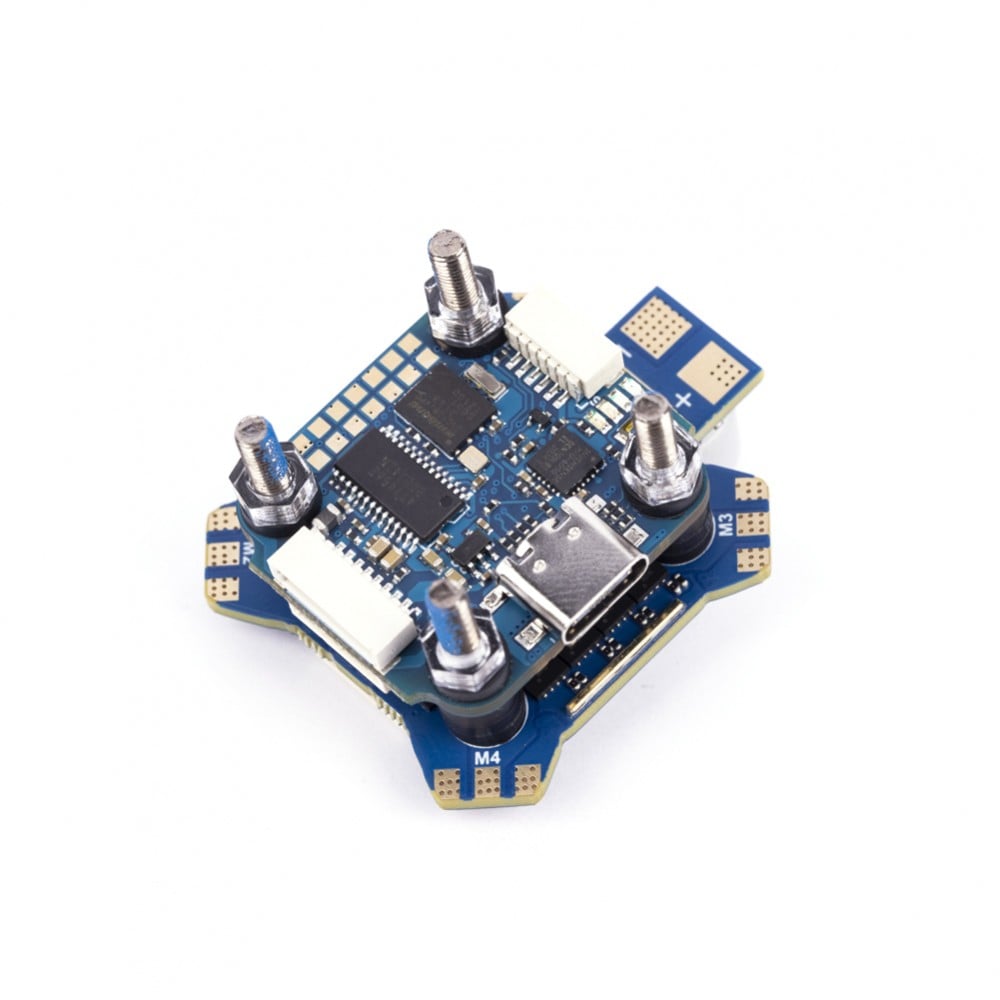

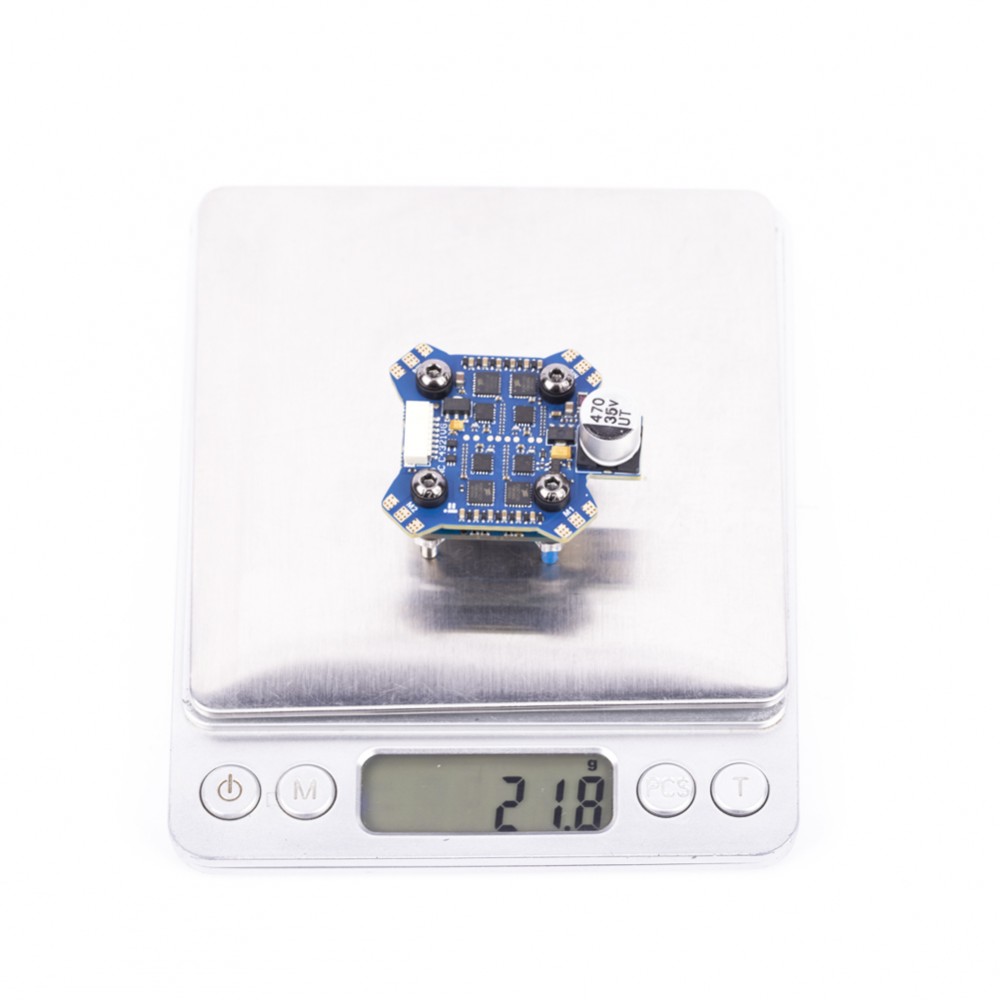

iFlight BLITZ Mini F4 Stack (Mini F4+55A ESC 4-in1)
FC // BLITZ Mini F4 Flight Controller
Top Features:
– Improved circuit design, better components and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)
– FC indicator LEDs for visual debugging
Specs:
– MCU： STM32F405
– Gyro： MPU6000
– Baro: NO
– Betaflight OSD: IFLIGHT OSD （AT7456E)
– Blackbox: 16MB
– UARTS: 6
– I2C serial: SDA / SLA pads
– Smart audio / IRC Tramp VTX protocol supported
– LED controller: Yes
– Beeper pad: Yes
– Firmware target: IFRC-IFLIGHT_BLITZ_F405
– Mounting：20*20mm/φ4
– Dimensions：30.5*27mm
– Weight：5.0g
Wiring suggestion:
– UART 1 for VTX HD / Analog
– UART 2 for a Receiver
– UART 3/4 for GPS or other sensors that require a serial port
– UART 6 for ESC Telemetry
Tips
1. F405 MCU has no inner inverter
2. SBUS、CRSF、ELRS、IBUS、DSM ETC… can be connected to any unused UART_RX, we suggest you connect to Uart_RX2
3. Frsky SmartPort, Tramp & Smart audio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1
4. F.port can be used, need to be connected to UART_TX2 and setup the inner inverter
ESC // BLITZ Mini E55S 4-IN-1 2-6S ESC
Specification:
– Mounting Holes: 20*20mm/Φ4mm
– Weight: 11.3g
– Supports 2-6S lipo input
– MCU： BB21
– Constant: 55 Amps
– Burst: 60 Amps
– Current sensor: Yes
– BEC: No
– Current rate: 100
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
– Target: Q-H-50 16.7 (BlheliS) / Bluejay Q-H-50 (Bluejay)
– Dimension: 35*42mm
Package includes:
– 1pc x BLITZ Mini F4 Flight Controller
– 1pc x BLITZ Mini E55S 4-IN-1 2-6S ESC
– 1set x silicon grommets
– 1set x wire harness for F4 Flight controller
