iFlight BLITZ E55 Single 55A ESC

Check out all of our iFlight Products!

Specification:

Top Features:

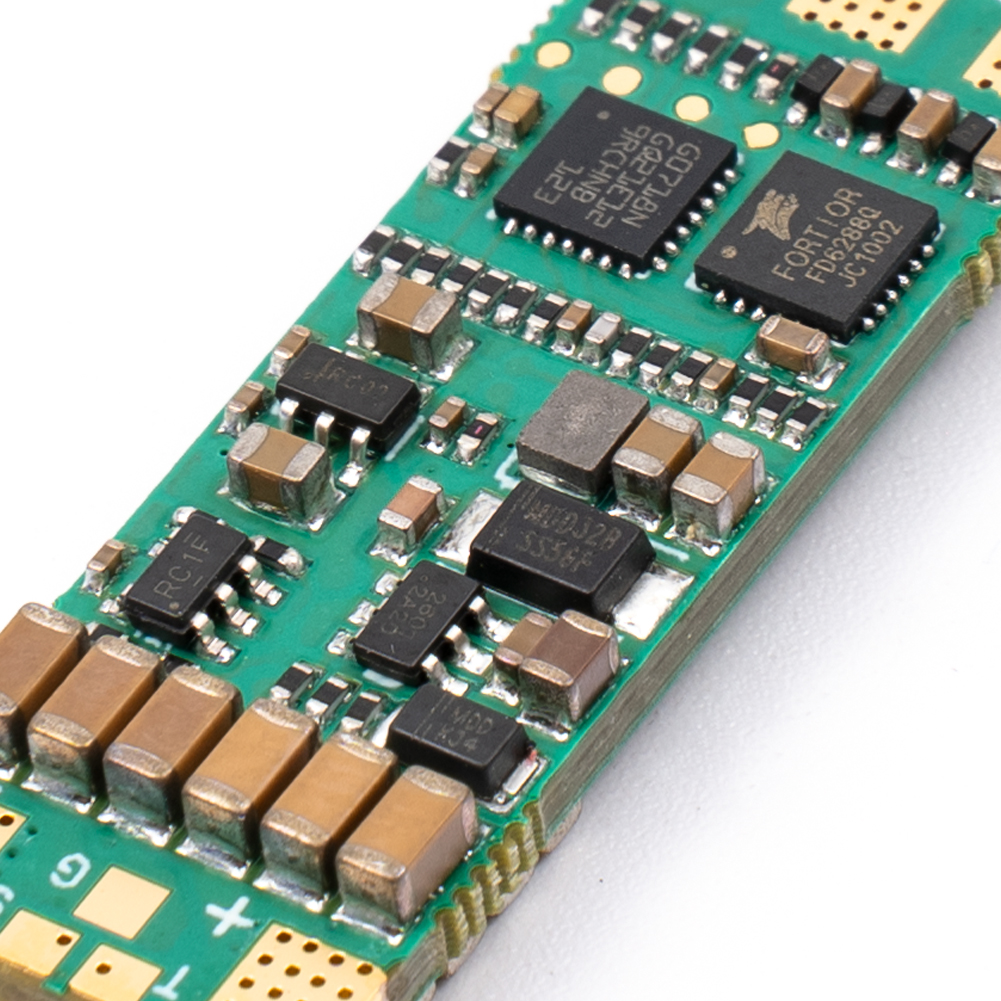

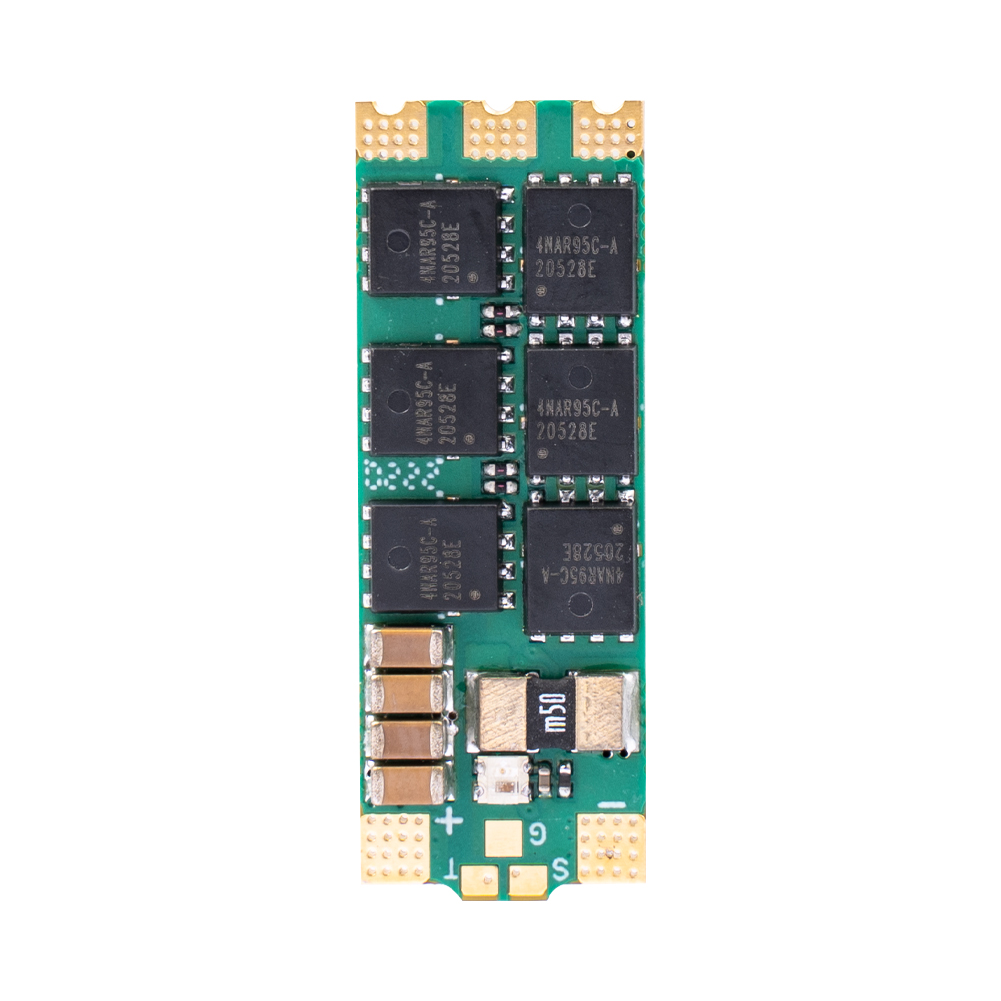

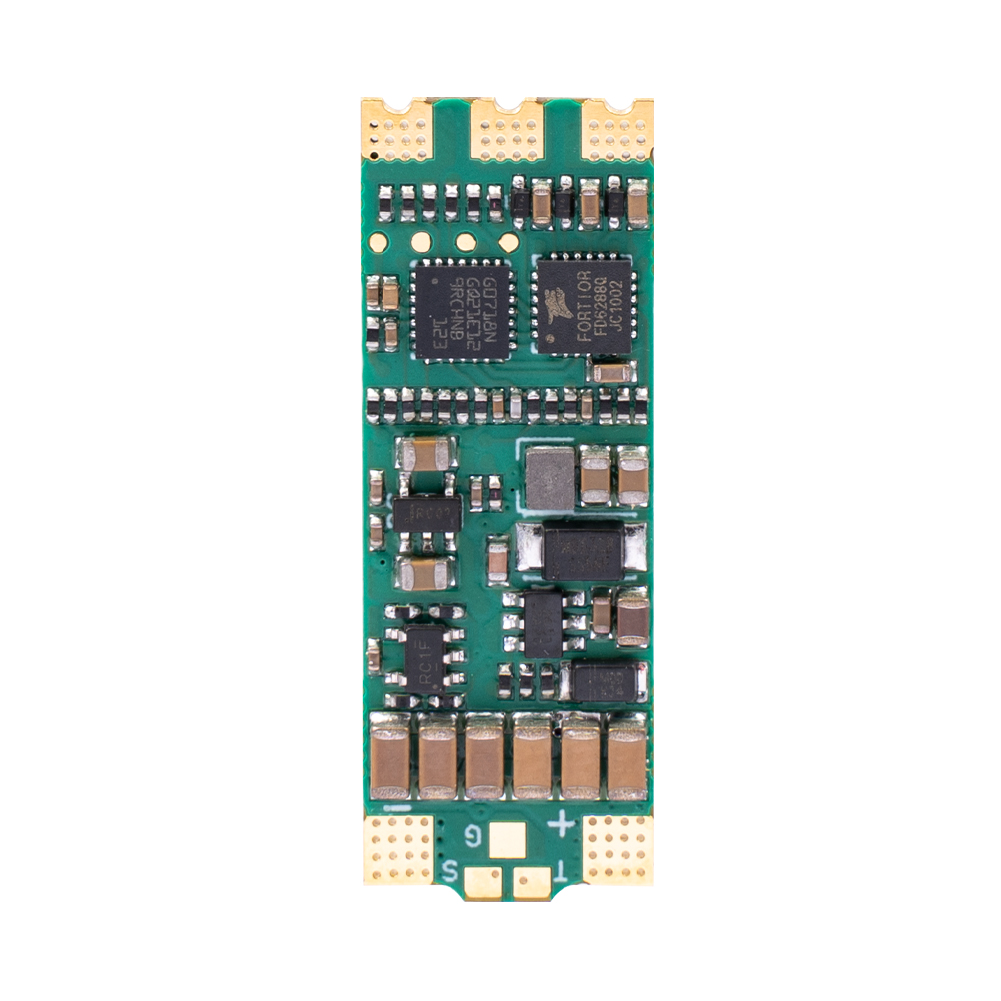

– 8 layers of double-sided PCB board

– 3oz 1.4mm thick power board

– 32bit F051 MCU, 48kHz maximum clock speed

– TDK MLCC Low ESR ceramic capacitors

• Supports up to Dshot600, Proshot, Oneshot, Multishot
• Constant: 55A / Burst: 60A (10S)
• Up to 48kHz PWM frequency
• Target: IFLIGHT_BLITZ_G3
• BlHeli32 telemetry: Yes
• Firmware Version: 32.9
• Dimensions: 35*13mm
• Current Sensor: Yes
• Input: 2-6S LIPO
• RGB LED: Yes

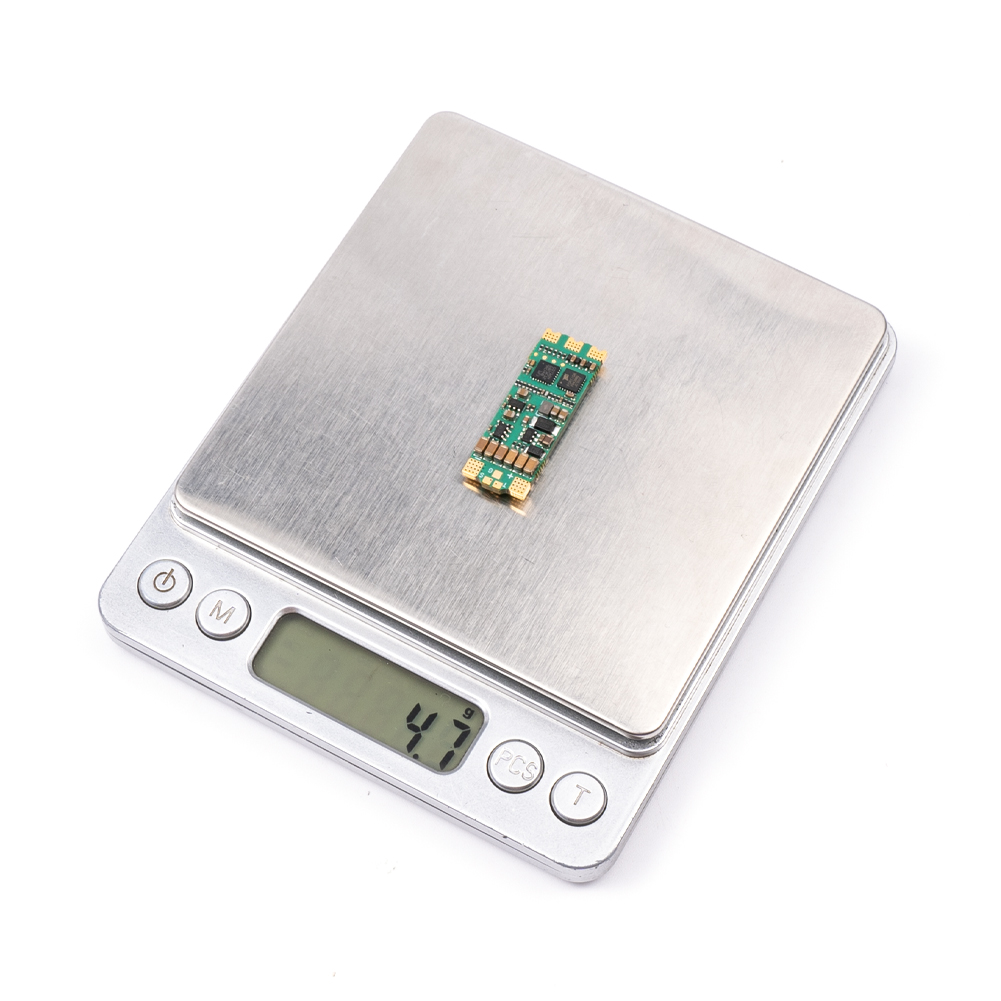

• Weight: 4.7g
• MCU: G071
• BEC: No

RECOMMENDATION:

– No additional capacitor is needed up to 5S!

– But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!

Package Includes:

– BLITZ E55 55A Single ESC *1pc
