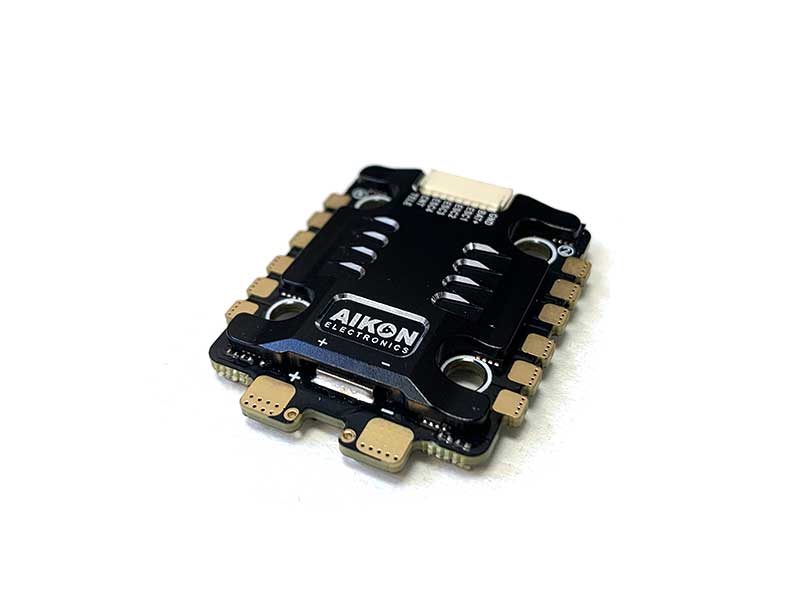

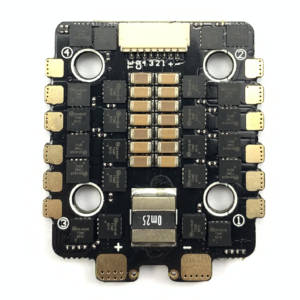

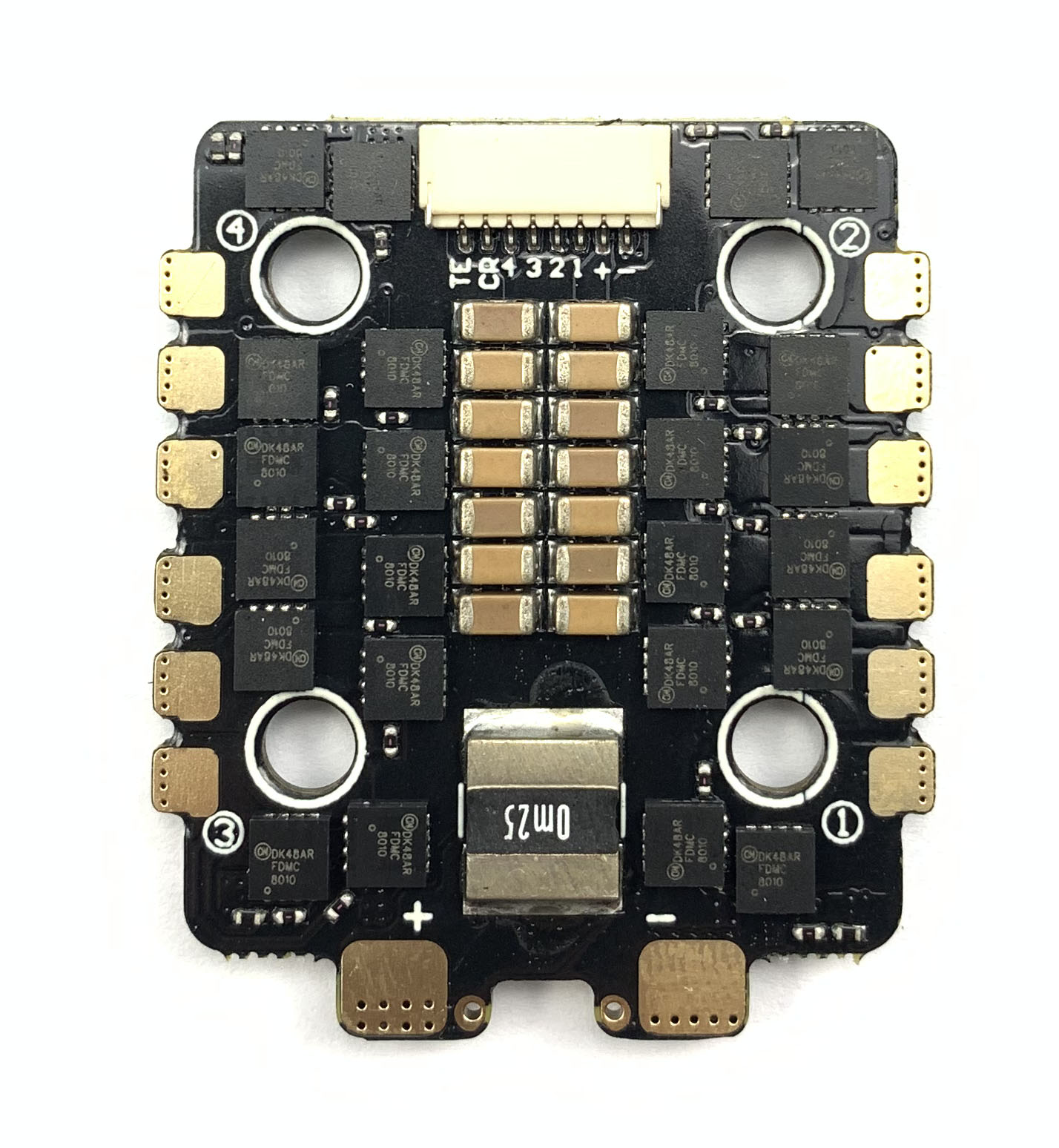

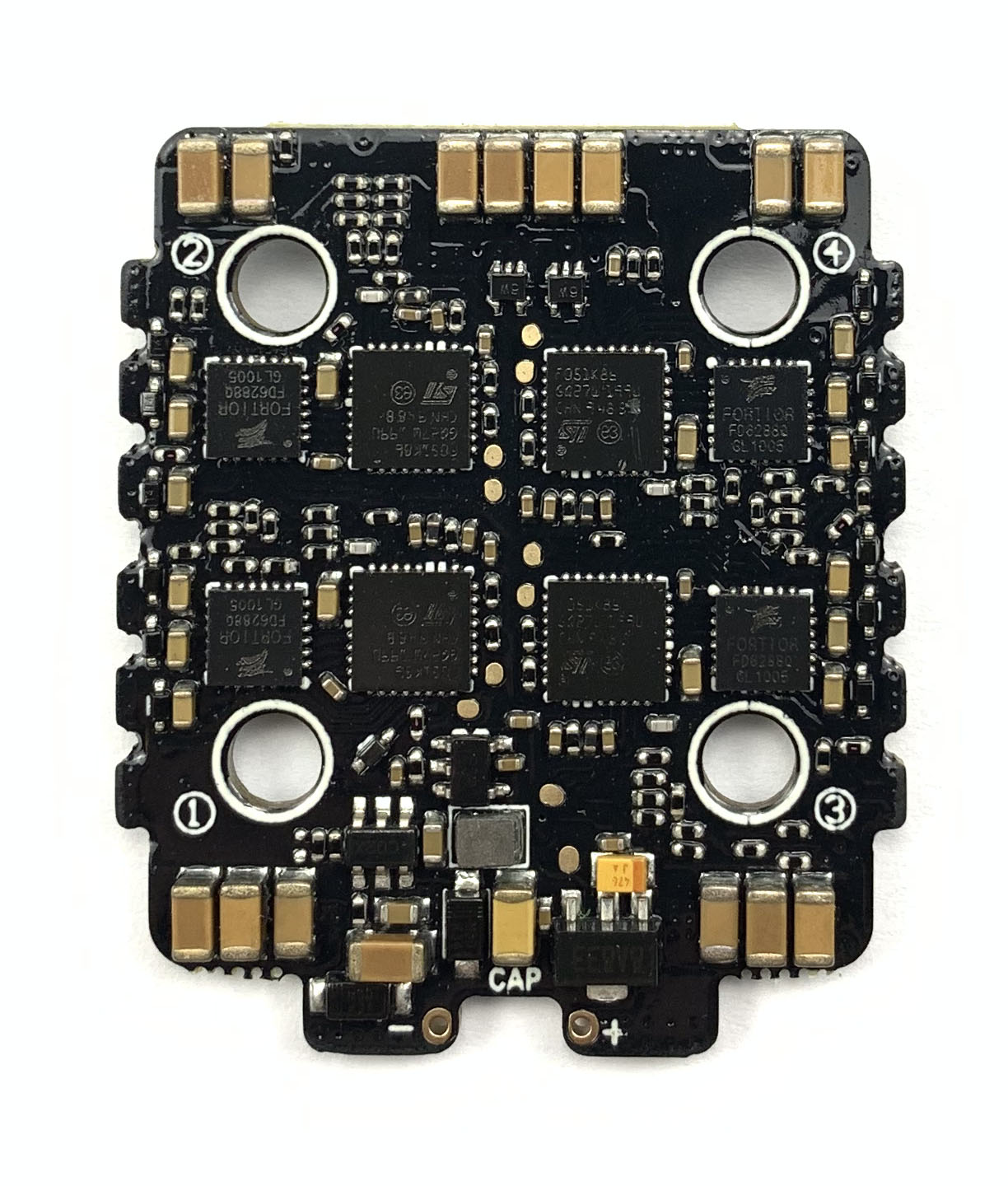

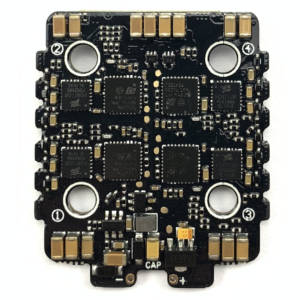

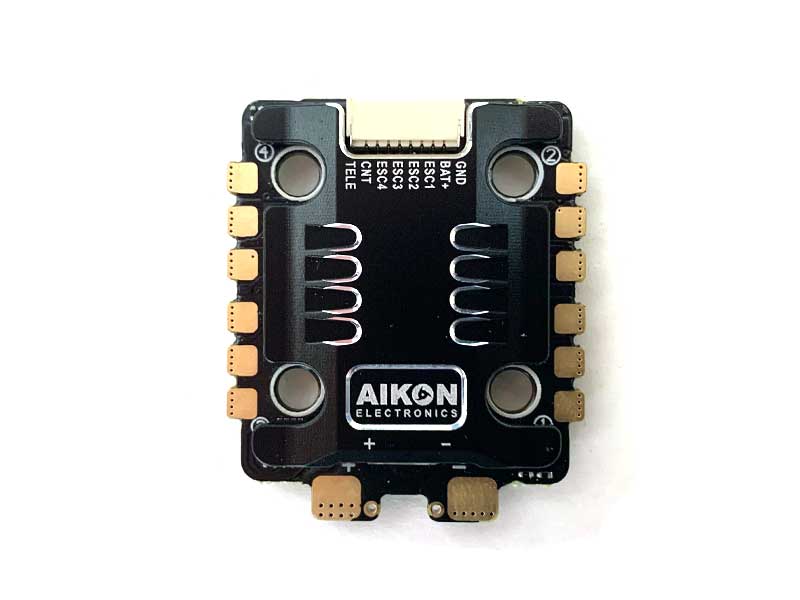

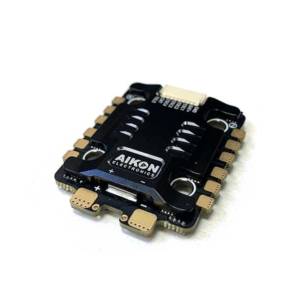

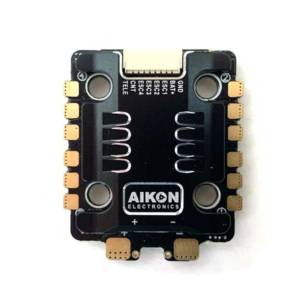

Aikon AK32PIN 35A 6S 4-in-1 20×20 ESC
The Aikon AK32 4-in-1 35A 6S is a new generation ESC that uses a variety of bleeding edge technologies in hardware and firmware.
What makes the AK32 worth your investment?
- BLHeli_32 code base
- Programmable PWM frequency of up to 48KHz
- Auto-timing for higher efficiency and reliability
- Analog Voltage/Current sensing
- Adjustable āBrake on Stopā force
- Improve direction change in Bidirectional mode
- One current sensor to measure the total amp draw and telemetry functions.
- ESC Telemetry (Voltage and RPMs and current)
- Configuring from FC using DShot commands
- Programmable sine modulation mode
- Programmable soft bidirectional mode
- Programmable autonomous periodic (every 32ms) telemetry mode
- Hardware noise filter on the signal input
SPECIFICATIONS
| Battery | 2-6s |
| Constant Current | 35A |
| Burst Current | 45A |
| Mount Hole | 20*20mm |
| Firmware | BLHeli32 |
| MCU | STM32PINF0 |
| Bootloader | Yes |
| Weight( with/wire) | 10g |
| Signal wire length | 100mm |
| Battery wire length | 100mm |
