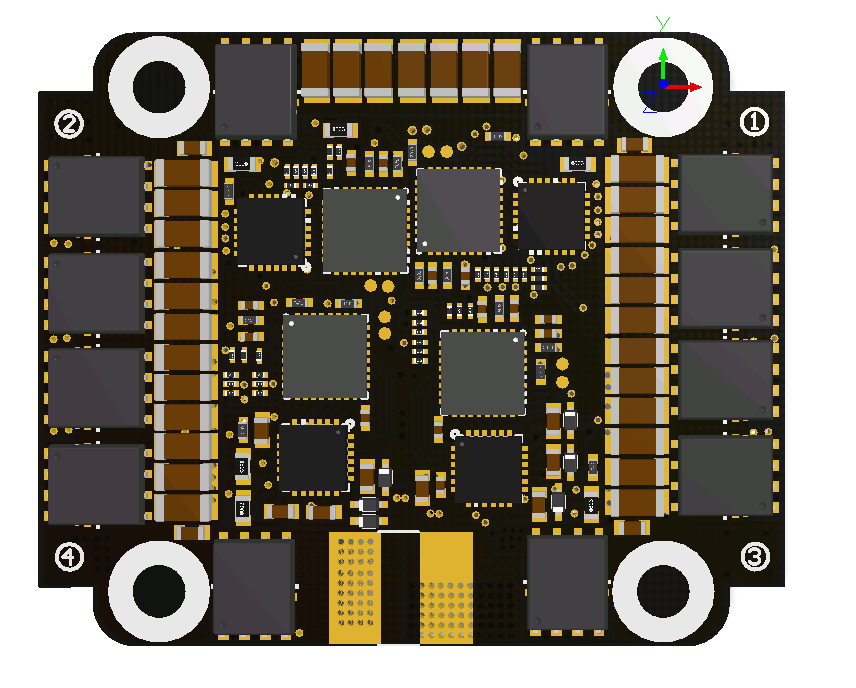

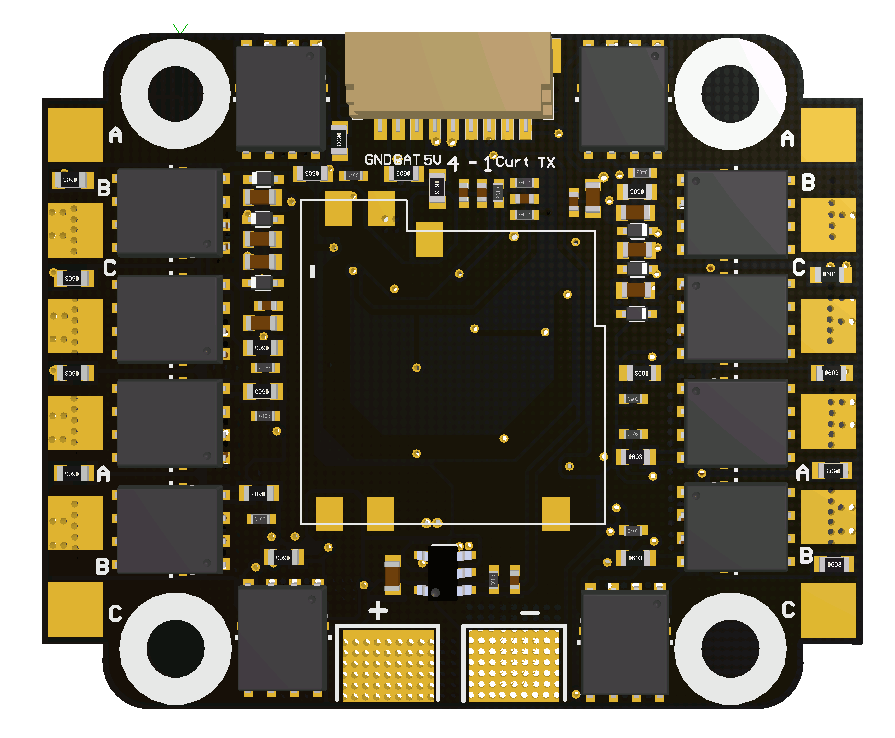

Aikon AK32 V2 32Bit 35A 3-6S 30×30 4in1 ESC w/ BEC

The Aikon AK32 4-in-1 35A 6S is a new generation ESC that uses a variety of bleeding edge technologies in hardware and firmware.

What makes the AK32 different?

Features

• New BLHeli_32 code base
• Programmable PWM frequency of up to 48KHz
• Auto-timing for higher efficiency and reliability
• Voltage/Current sensing
• Adjustable “Brake on Stop” force
• Improve direction change in Bidirectional mode
• ESC Telemetry (Voltage and RPMs only, no current)
• Configuring from FC using DShot commands

Note: Sensor default value is 210.

Specifications:

• Battery: 3-6s
• Constant Current: 35A
• Burst Current: 45A 10s
• Size: 37*45mm
• BEC: 5V/2A
• Firmware: BLHeli32
• MCU: STM32 F051
• Bootloader: Yes
• Weight(without wire): 14.3g

Includes:

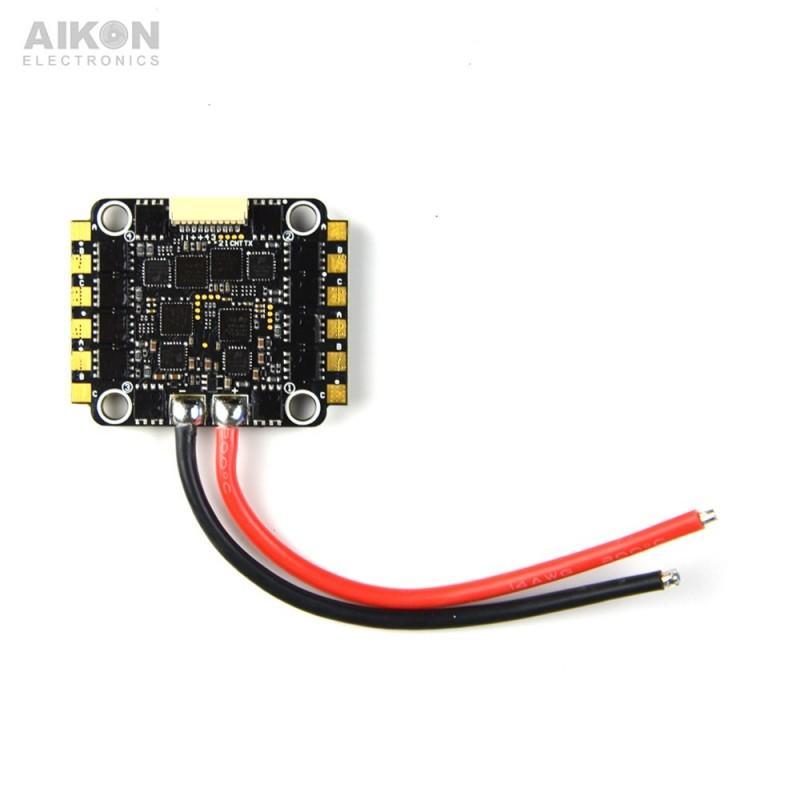

• 1x AK32 35A V2 4in1 ESC
• 1x 10 Pin sh cable
• 5x Vibration Dampeners
• 2x 14awg 100mm wire (red and black)
• 1x 330uf 35V Capacitor
