WANPTEK DPS305U 5A 150W SWITCHING DC POWER SUPPLY AC 115V/230V

SPECIFICATIONS:

• Plug Type: US
• Material: Aluminium alloy
• Model: DPS305U
• Output Voltage: 0～30V
• Output Current: 0～5A
• Output Power: 150W
• Auxiliary Output: USB quick charging 18W, supports multiple quick charging protocols
• Input Voltage: AC230V ± 10%, 50Hz; AC115V ± 10%, 60Hz
• Working Temperature: 0~40℃; Humidity: <80%RH
• Storage Temperature: -10~70℃; Humidity: <70%RH

CV:

• Voltage Stability: ≤0.1% ± 3mV
• Load Stability: ≤0.1% ± 3mV
• Ripple Noise: ≤20mVrms (effective value)

CC:

• Current Stability: ≤0.1% ± 3mA
• Load Stability: ≤0.2% ± 3mA
• Ripple Noise: ≤5mArms (effective value)

• Protection Mode: Current limiting protection/short circuit alarm stop output and self-recovery

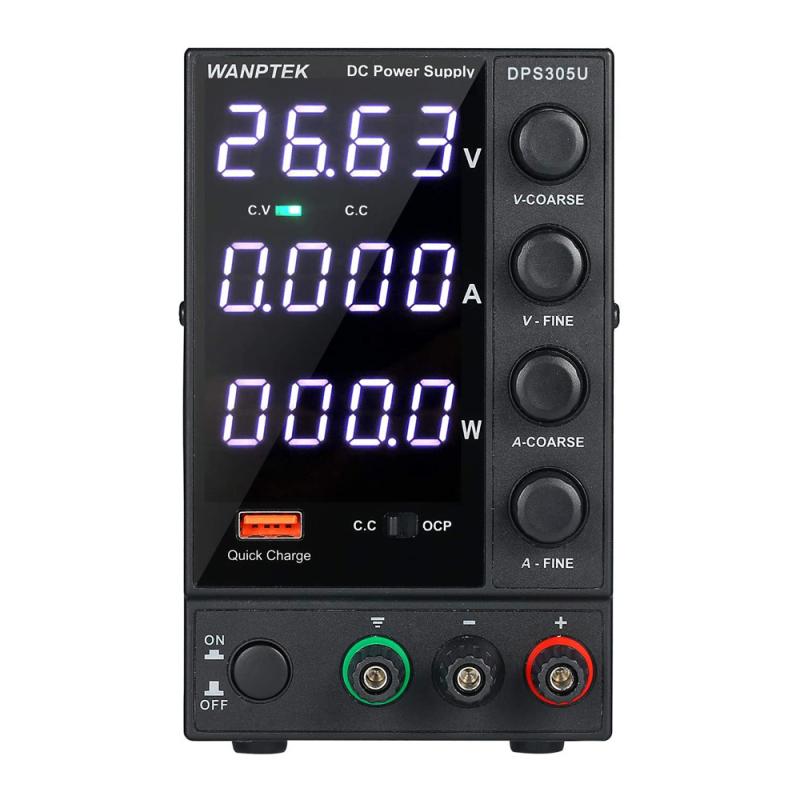

• Display: Four-digit digital tube, three-window display: voltage, current, power
• Display Accuracy: 0.5% ± 3 digits
• Display Resolution: voltage 00.01V; current 0.001A
• Fuse: 2A

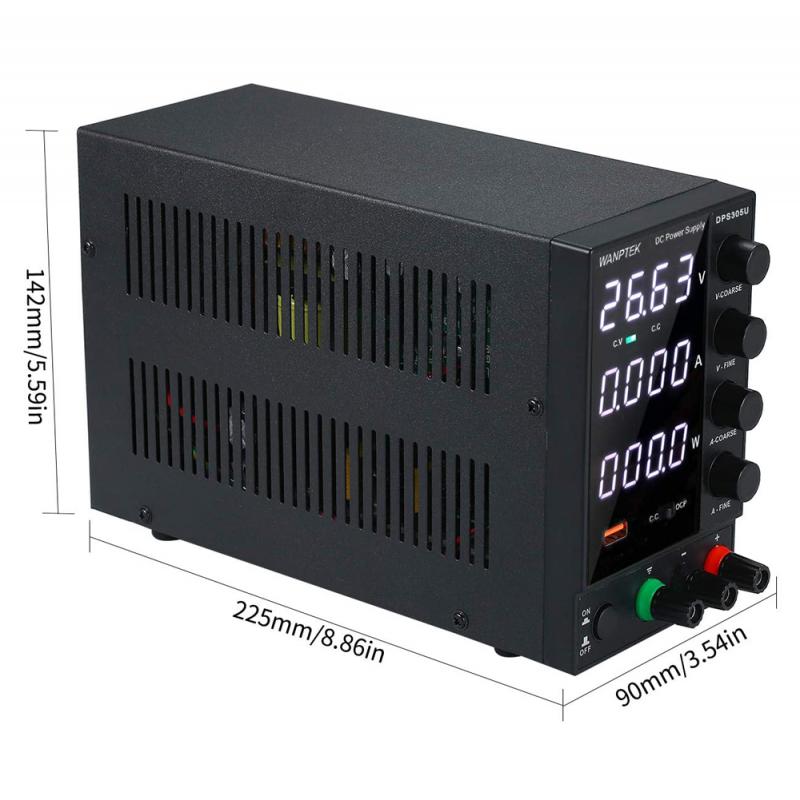

• Item Size: 246 * 90 * 152mm / 9.68 * 3.54 * 5.98in
• Item Weight: 1571g / 55.42oz
• Package Weight: 1737g / 61.29oz
• Package Size: 30 * 20 * 14cm / 11.81 * 7.87 * 5.51in

PACKAGE LIST

• 1 * DC Power Supply
• 1 * Power Cord
• 1 * Alligator Clip Line
• 1 * User Manual (English)
