Product Description:

(1) Working Temperature: 50-500℃/122-932℉. Support multiple power supplies: PD3.1/3.0/2.0, QC3.0/2.0, DC(5-28V), Lipo Battery, power adapters, etc.

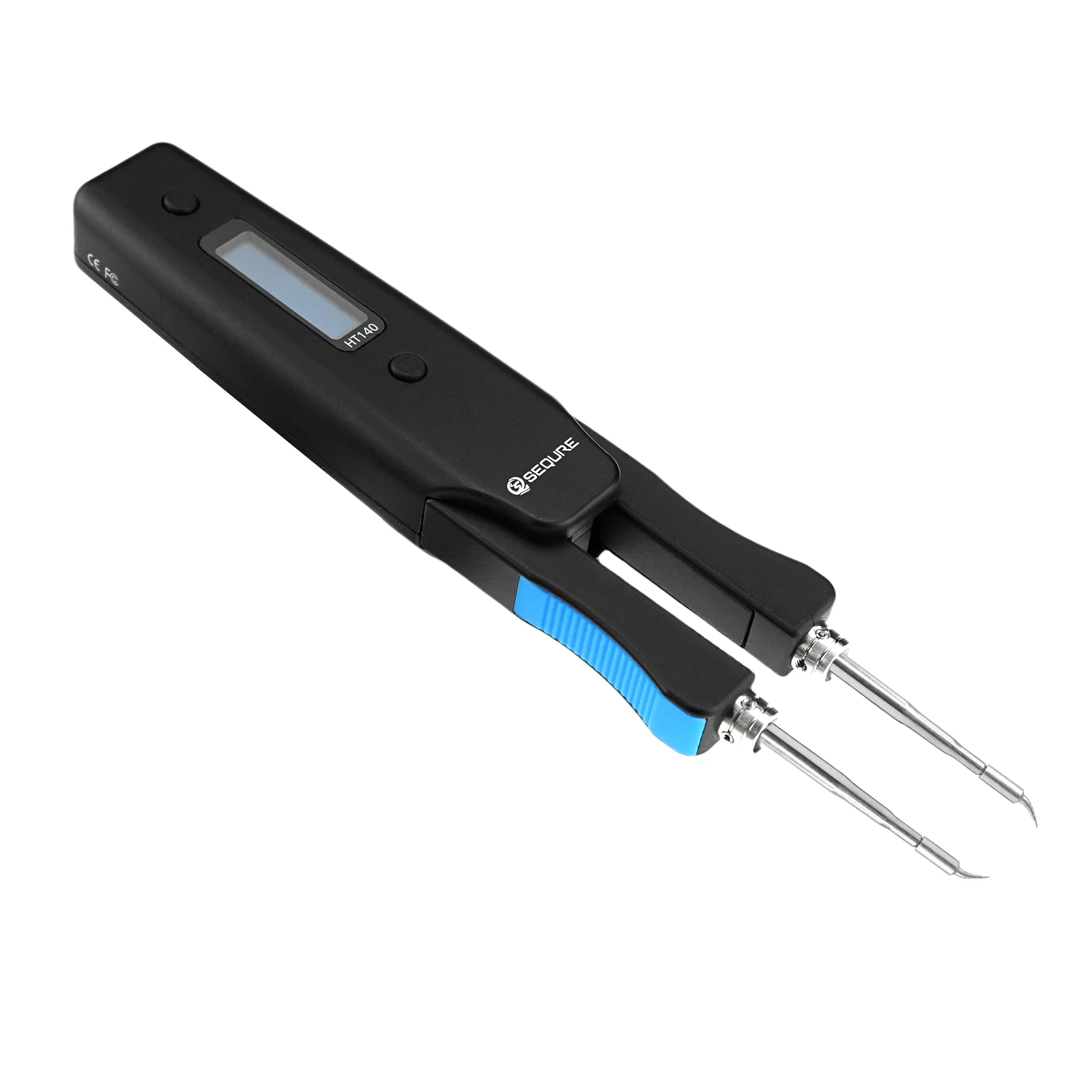

(2) HT140 is a combination of hot tweezers and soldering iron, which can be independently controlled for single-sided heating. It can be used as a soldering iron when installing a soldering tip. When set to heat on both sides, it becomes hot tweezers, making it easier to desoldering SMD components.
(3) Support setting the working voltage and current according to the actual power plug, meeting the usage of various power heads with different power. Maximum working power is 140W.
(4) Built-in dual system to control temperature. Supports multiple functions such as preset temperature, one key to increasing temperature, fine-tuning, etc.
(5) Adopting 128 * 32 OLED, the screen brightness and display direction can be adjusted. The menu supports multiple languages such as Chinese, English, Russian, etc. Temperature unit can be switched between ℃/℉. Supports upgrade firmware.
(6) HT140 features high precision heating element, precise temperature, and intelligent temperature control algorithm, with a maximum accuracy of ±1%. It only takes 2s to melt the tin.
(7) Intelligent standby & sleep & wake-up function, extending the service life of desoldering tips as well as improving work efficiency.
(8) Support temperature calibration & compensation, meeting desoldering scenarios that require high-precision temperature.

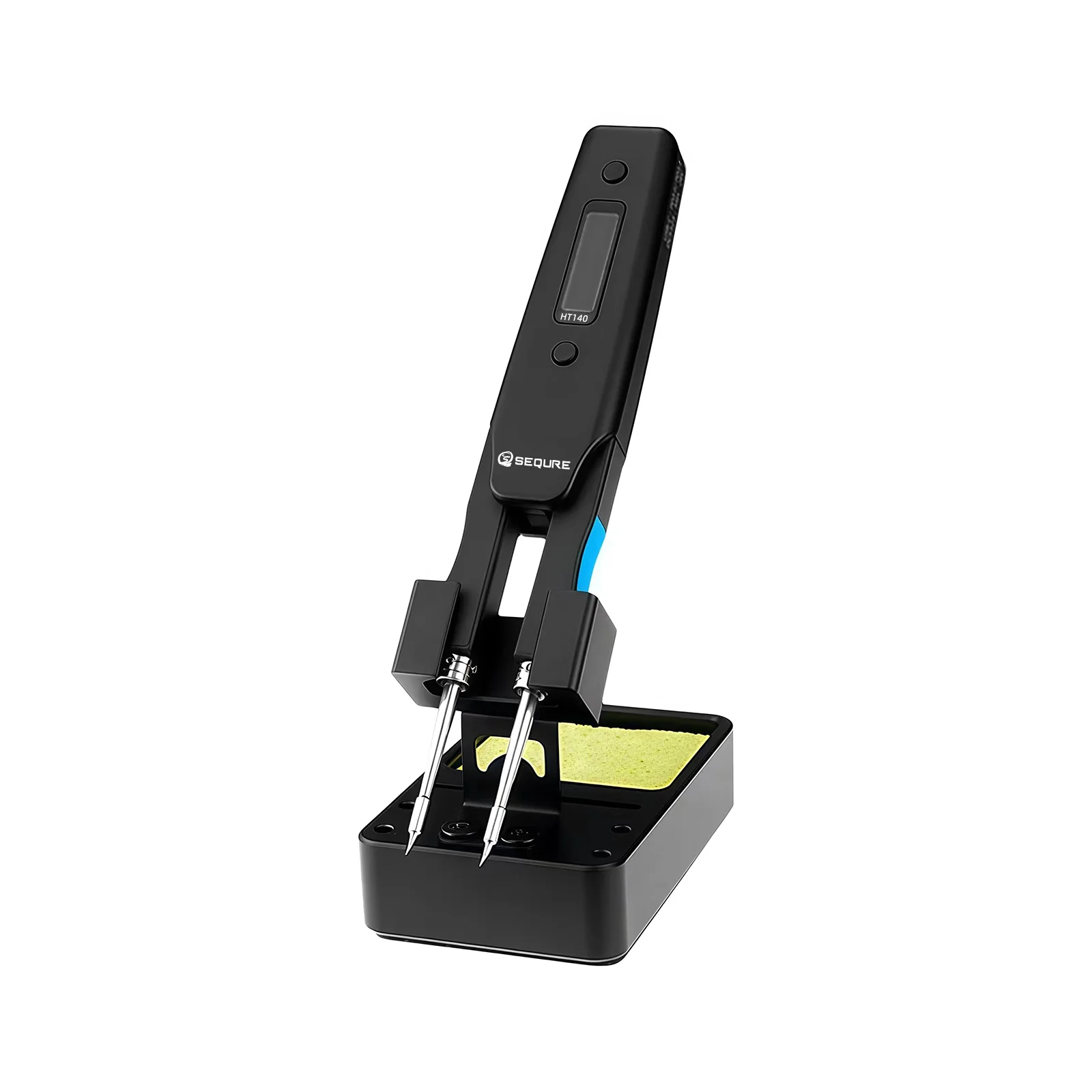

(9) Equipped with a 1.5m high-temperature resistant silicone PD 150W wire and an all-metal base HT Station for easy use and storage.

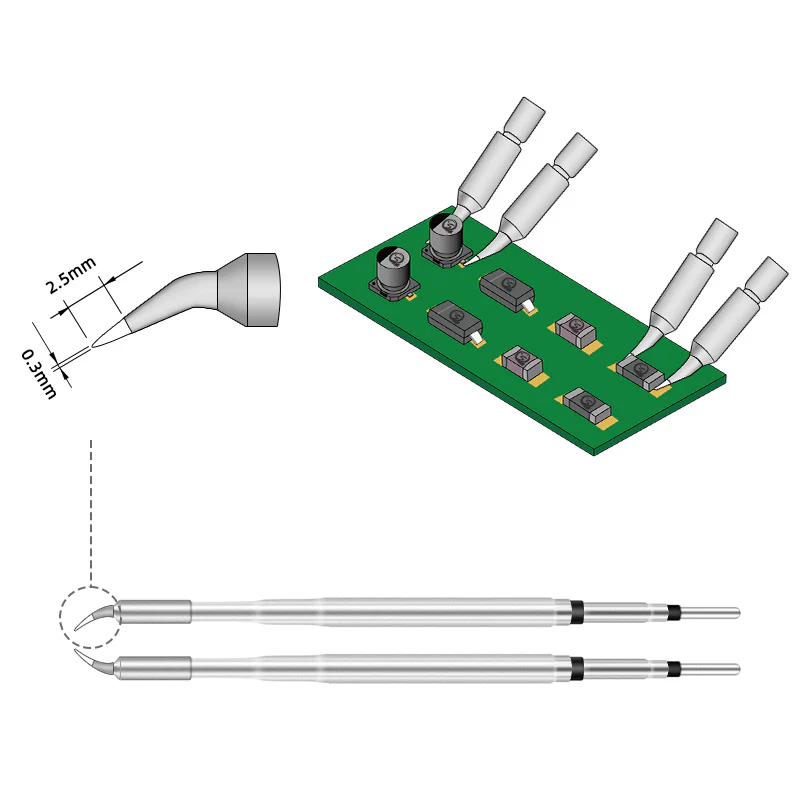

(10) HT140 can replace the desoldering tips and freely adjust the working angles to meet the needs of different SMD welding scenarios.

Parameters of Product:

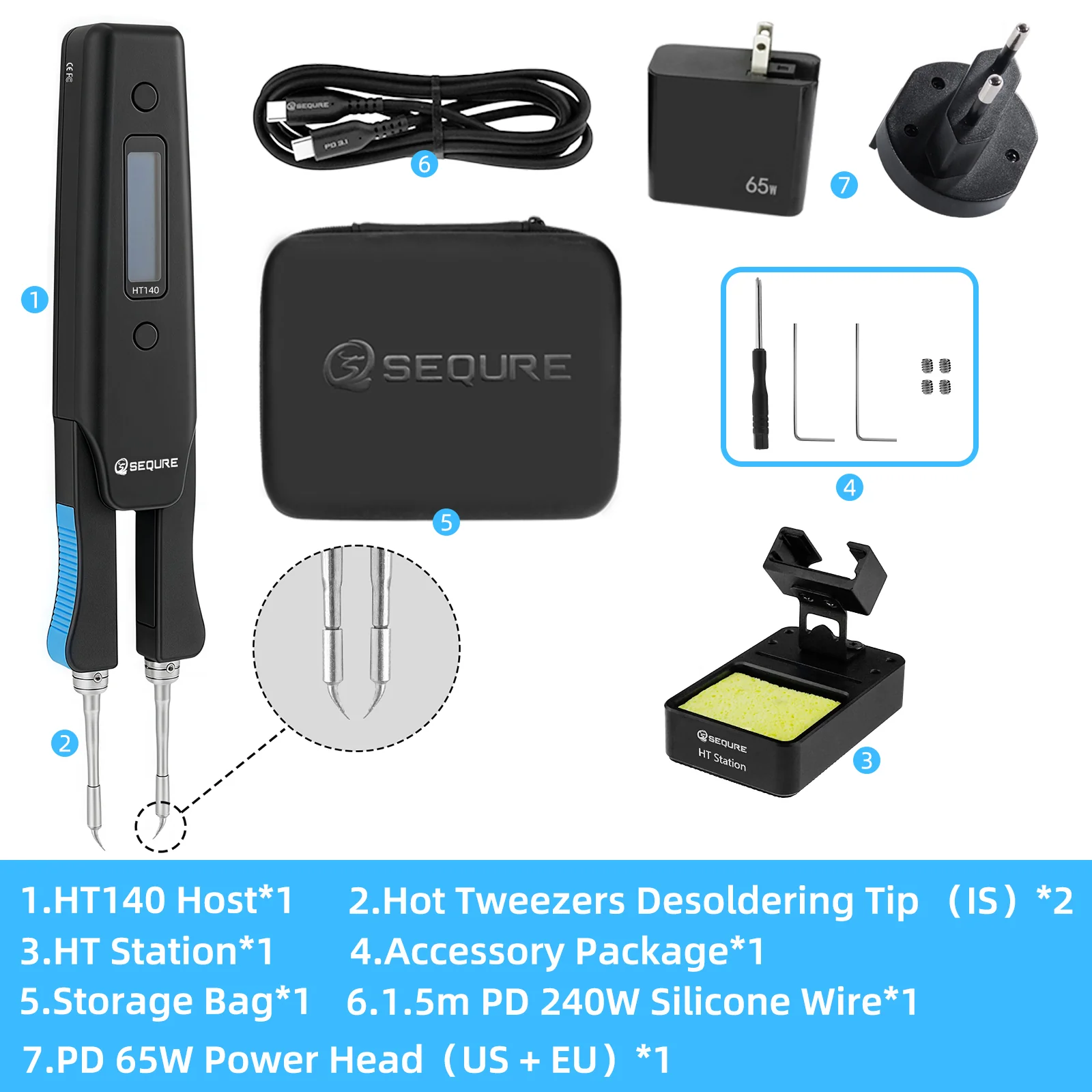

Package included:

HT140（IS）

HT140 Host x 1
Hot Tweezers Desoldering Tip x 2

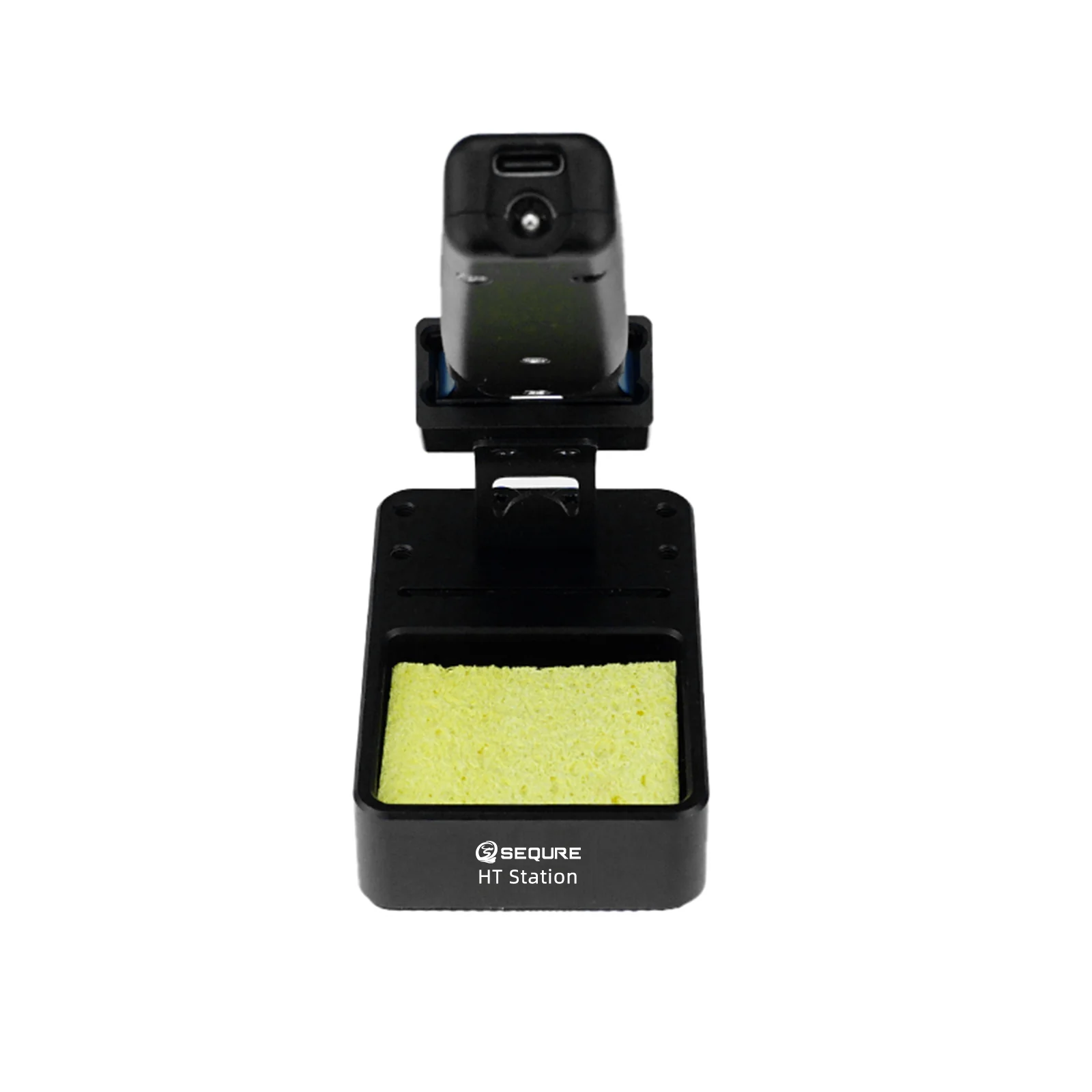

HT Station×1
Accessory Package x 1
Storage Bag x 1
1.5m PD 240W Silicone Wire x 1

HT140（IS）-（US+EU），HT140（IS）-（US+EU），HT140（IS）-（US+UK）

HT140 Host x 1
Hot Tweezers Desoldering Tip x 2
HT Station×1
Accessory Package x 1
Storage Bag x 1
1.5m PD 240W Silicone Wire x 1
PD 65W Power Head x 1
Power Converter x 1

Overall Dimension:

HT140（IS）

(1) Product Size: 160*27*17.5mm
Net Weight Of Product: 50g
(2) Package Size: 210*150*55mm
Packing Weight: 488g
(3) Package Size (Including Outer Carton)：235*165*60mm
Packing Weight (Including Outer Carton)：554g

HT140（IS）-（US+EU），HT140（IS）-（US+EU），HT140（IS）-（US+UK）

(1) Product Size: 160*27*17.5mm
Net Weight Of Product: 50g
(2) Package Size: 210*150*55mm
Packing Weight: 614g
(3) Package Size (Including Outer Carton)：235*165*60mm
Packing Weight (Including Outer Carton)：680g
