iFlight Blitz BEC Power Modules V1.1
BLITZ BEC V1.1 – High-Efficiency Step-Down Voltage Regulator

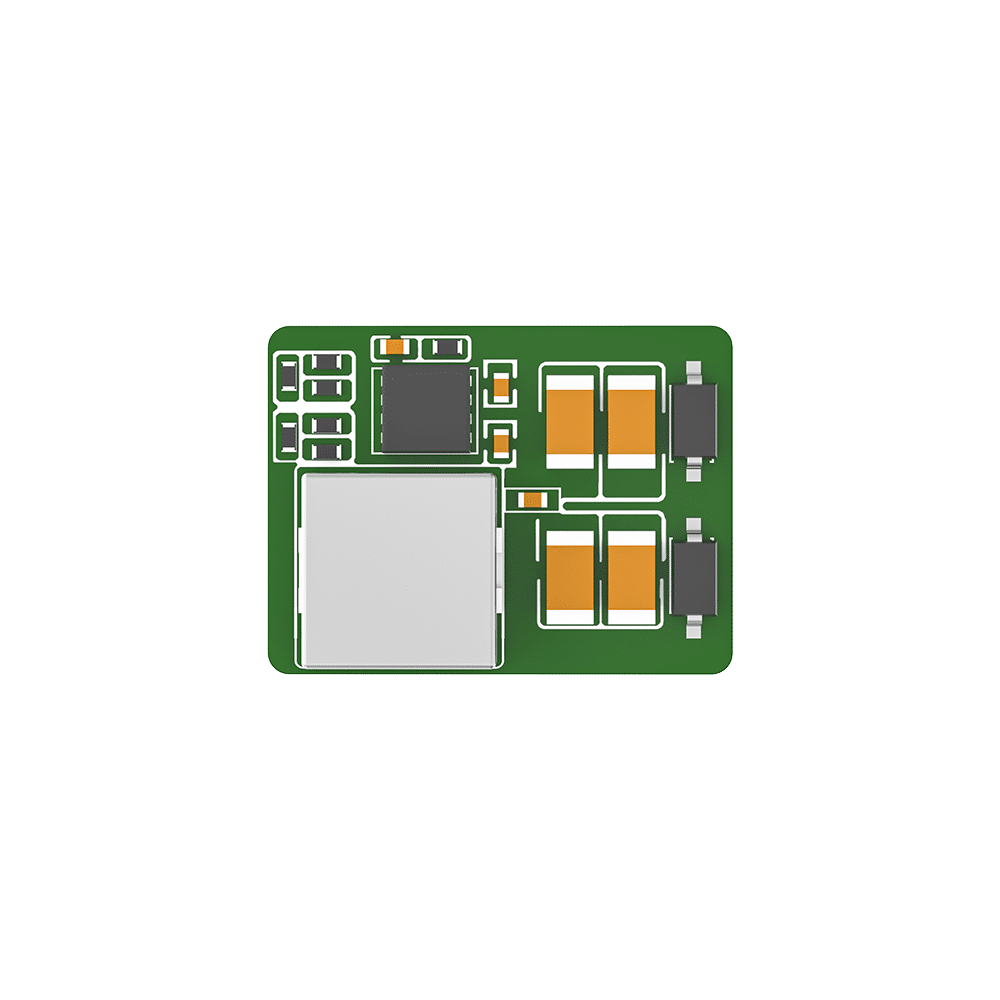

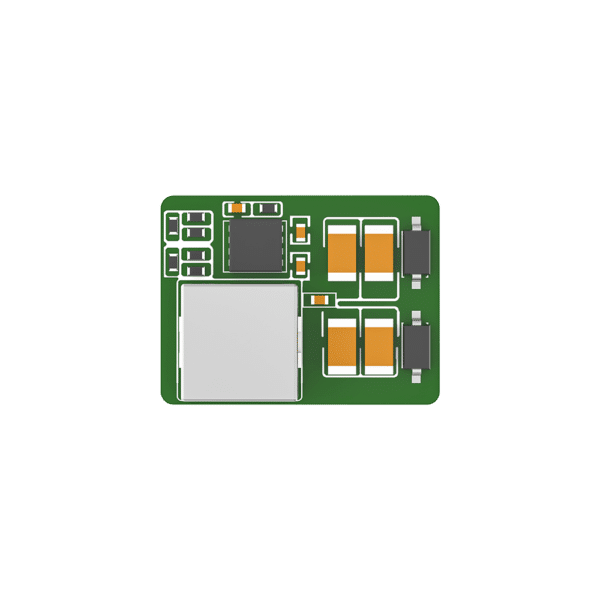

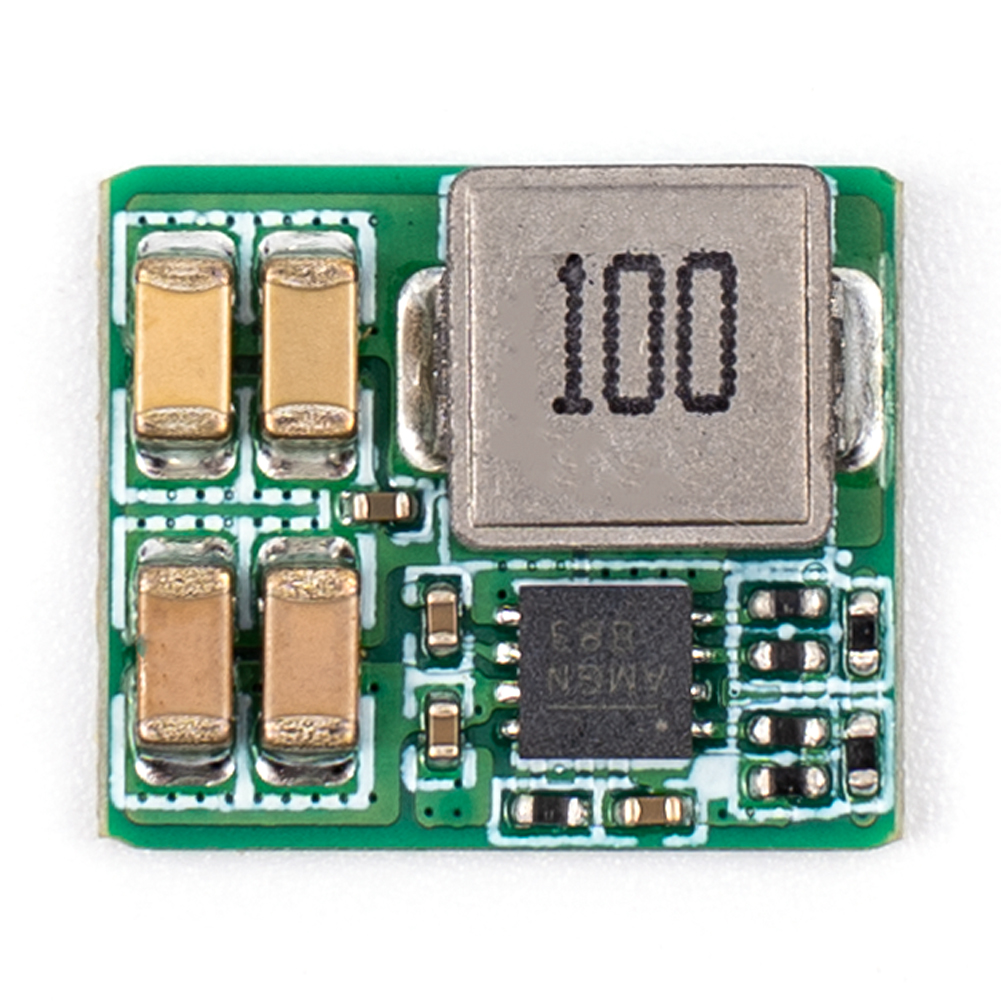

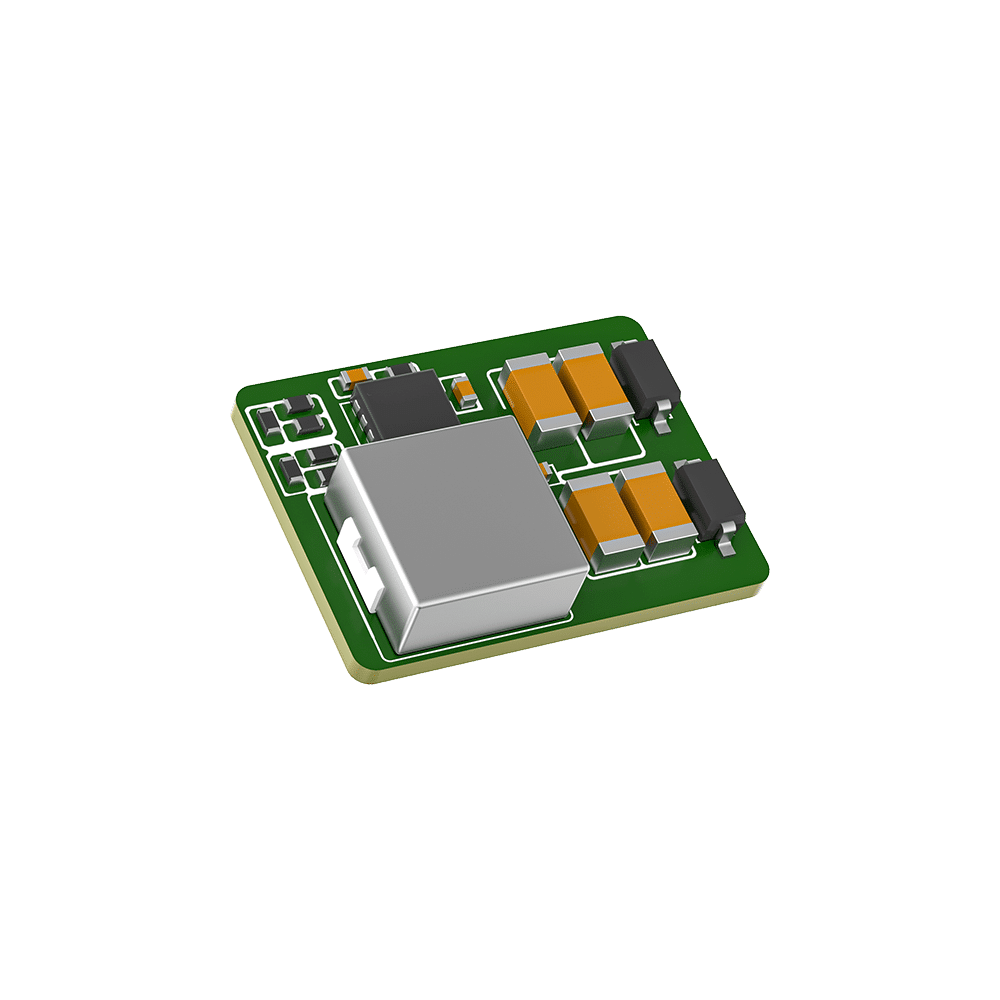

The BLITZ BEC V1.1 is designed for high-efficiency step-down voltage applications, offering a stable and compact power solution. With step-down switch mode technology and high-efficiency synchronous rectification, this regulator efficiently steps down input voltages of up to 26V, providing a reliable 5V or 12V output.
Key Features
- Step-Down Switch Mode Technology – Ensures efficient power conversion with minimal heat generation.
- High-Efficiency Synchronous Rectification – Enhances power stability and reduces energy loss.
- Wide Input Voltage Range (6V to 26V) – Compatible with a variety of applications.
- Adjustable Output Voltage (5V or 12V) – Default setting is 5V, providing flexibility for different power requirements.
- Compact and Lightweight Design – Ideal for space-constrained builds.
Specifications

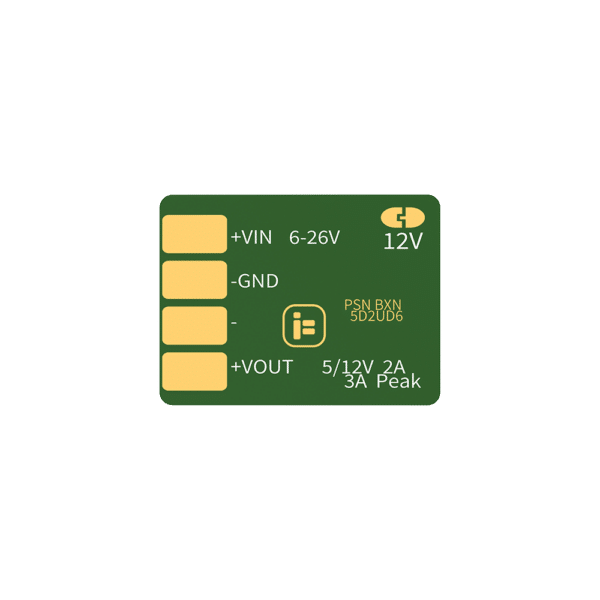

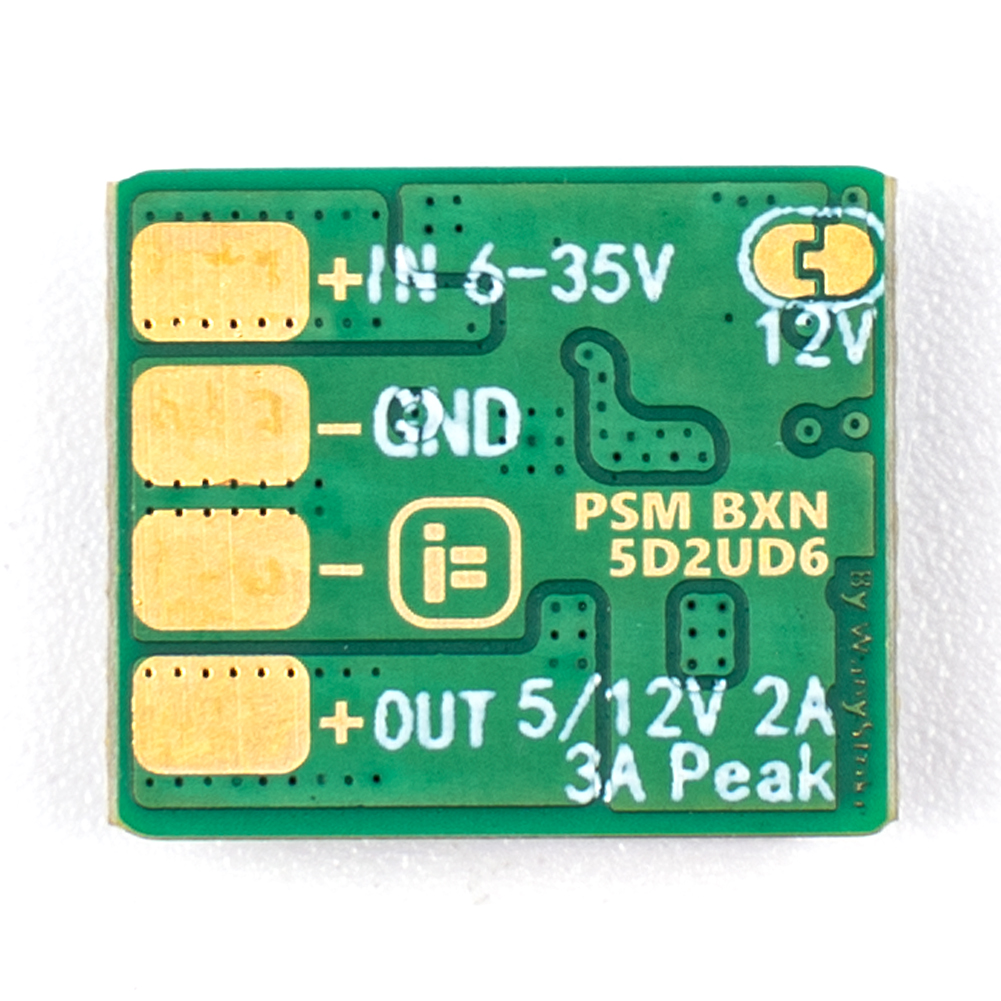

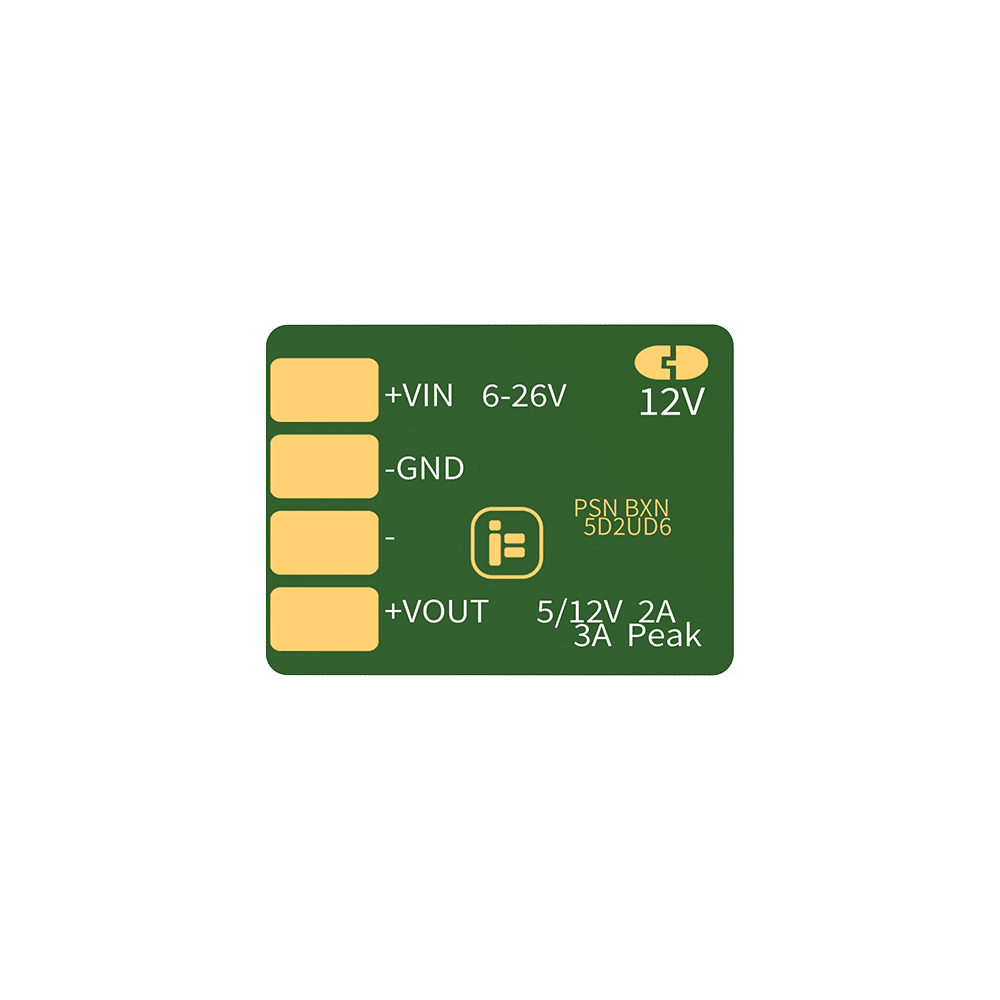

- Input Voltage: 6-26V
- Output Voltage/Current: 5V or 12V (Average 2A / Peak 3A)
- Conversion Efficiency:
- 12V output: Above 92% efficiency
- 5V output: Above 88% efficiency
- Size: 16×12×4.5mm
- Pin Distance: 2.55mm

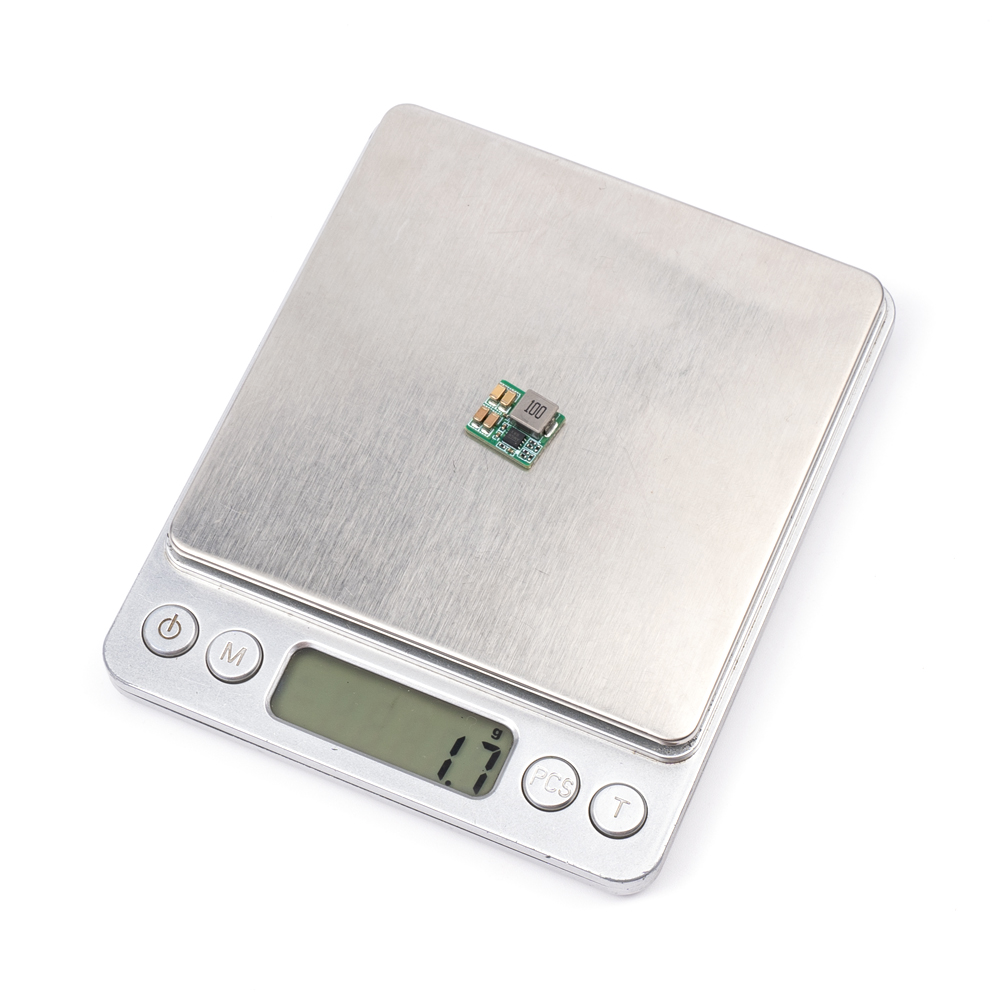

- Weight: 1.8g ± 0.1g
Changelog
- November 25, 2024: Size updated from 12×14mm to 12×16mm.
Packing List
- 1 x BLITZ BEC V1.1
- 1 x Connecting Cables
Important Note
If sparking occurs when powering on, ensure the input voltage does not exceed 26V.
