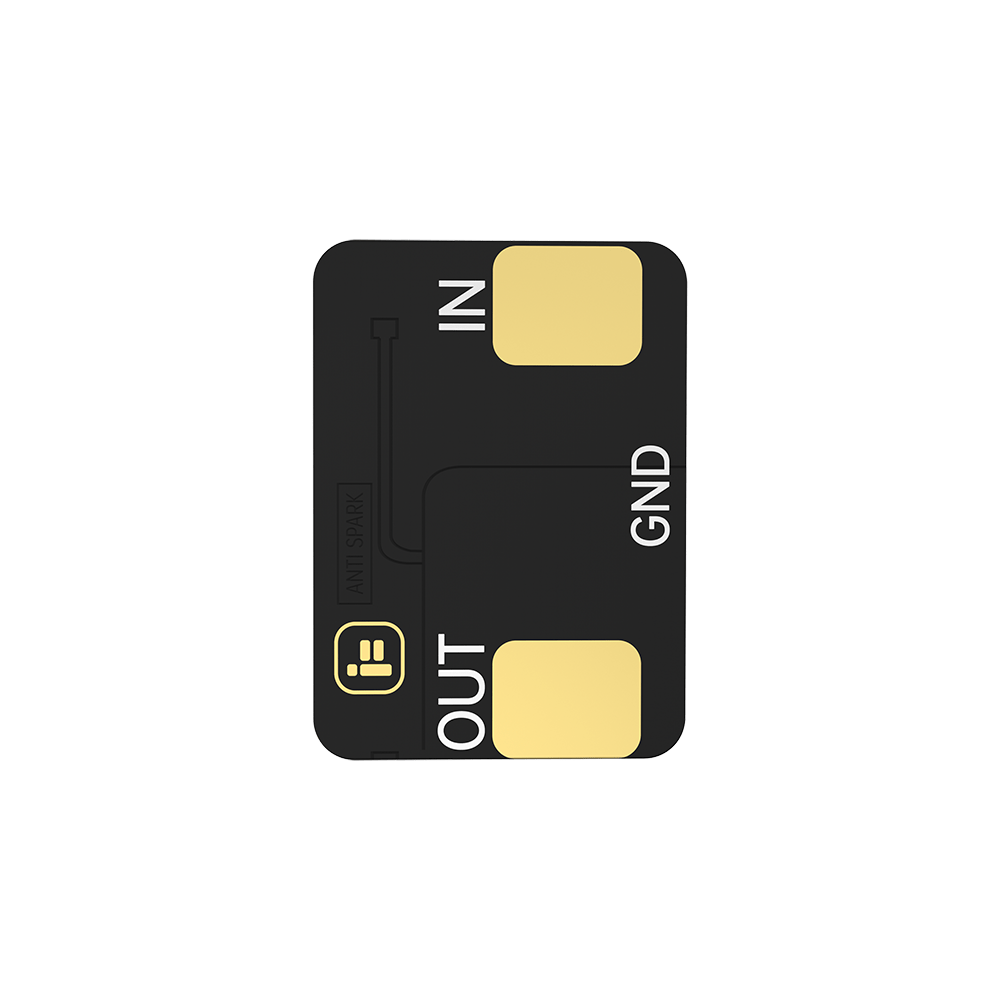

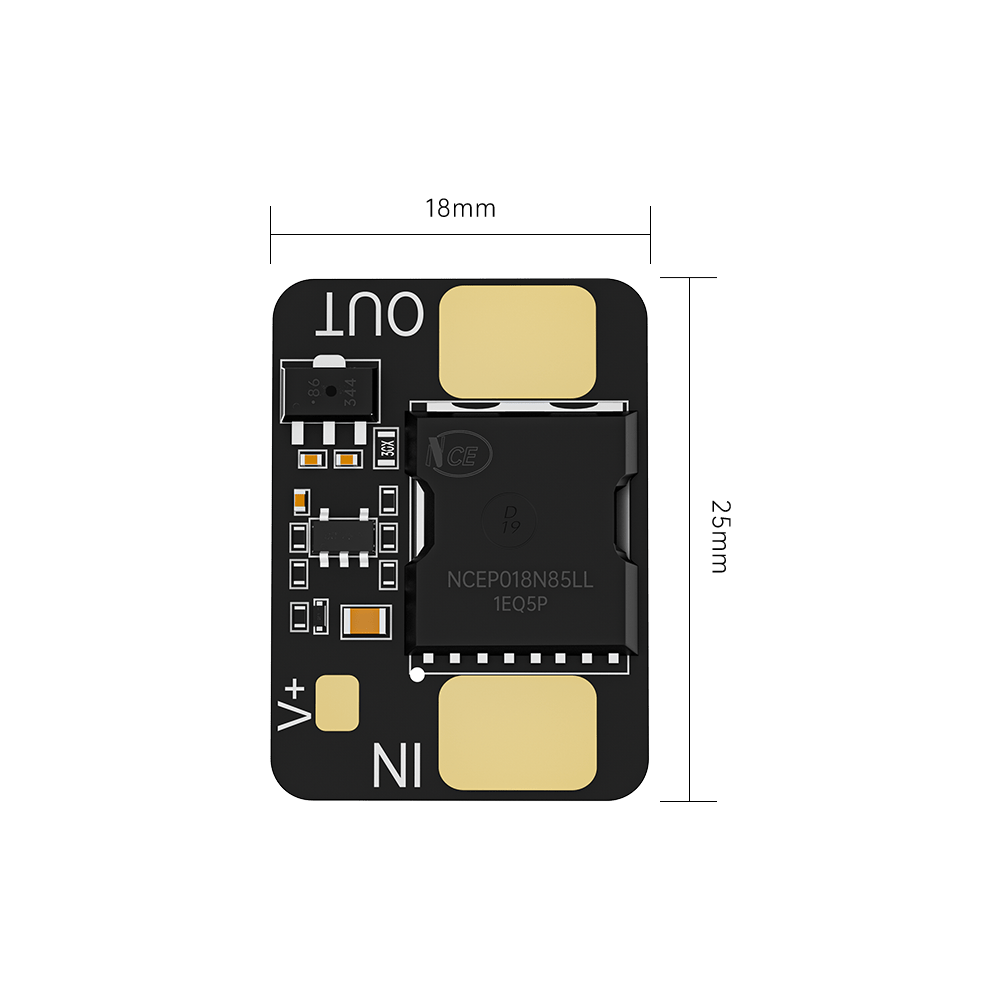

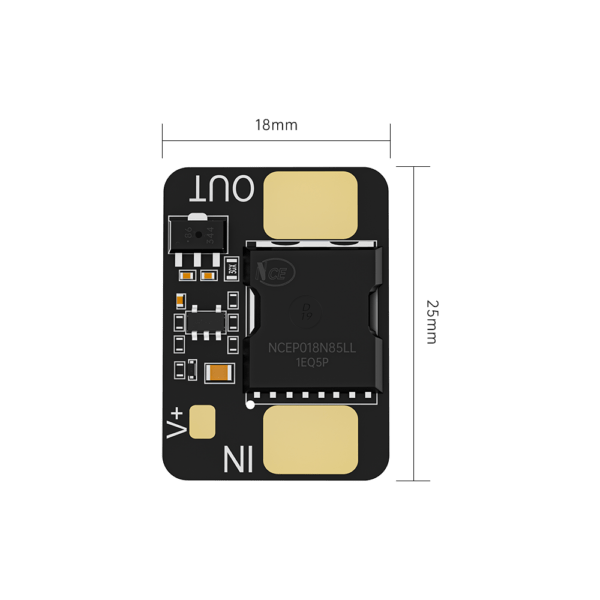

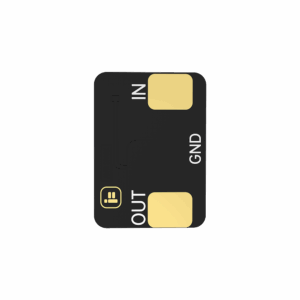

iFlight Anti Spark Filter 25*18mm

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specifications

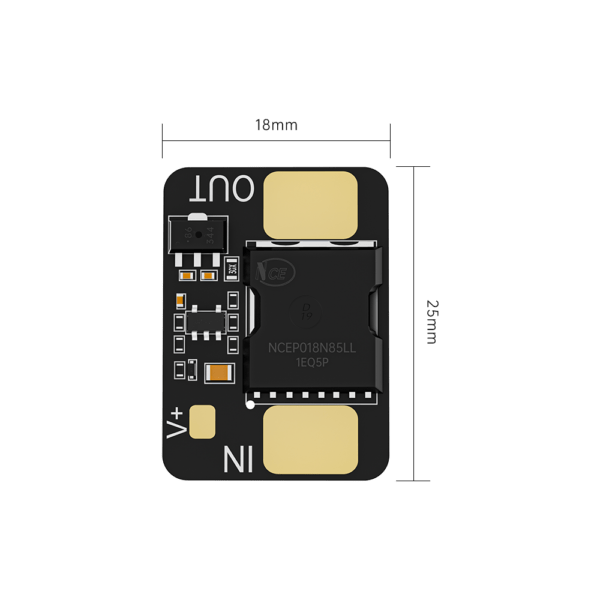

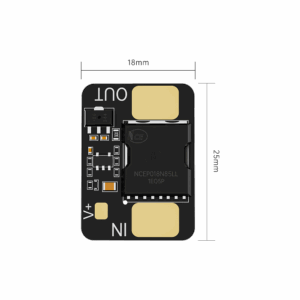

• Size: 25*18mm
• Input voltage: 3-6S (9-26V)
• Continuous overcurrent: 30A for 60 minutes
• Weight: 2.6g
• Compatible:
  • Nazgul Evoque F4 Frame kit
  • Nazgul Evoque F5 V2 Frame Kit
  • Nazgul Evoque F6 V2 Frame Kit
