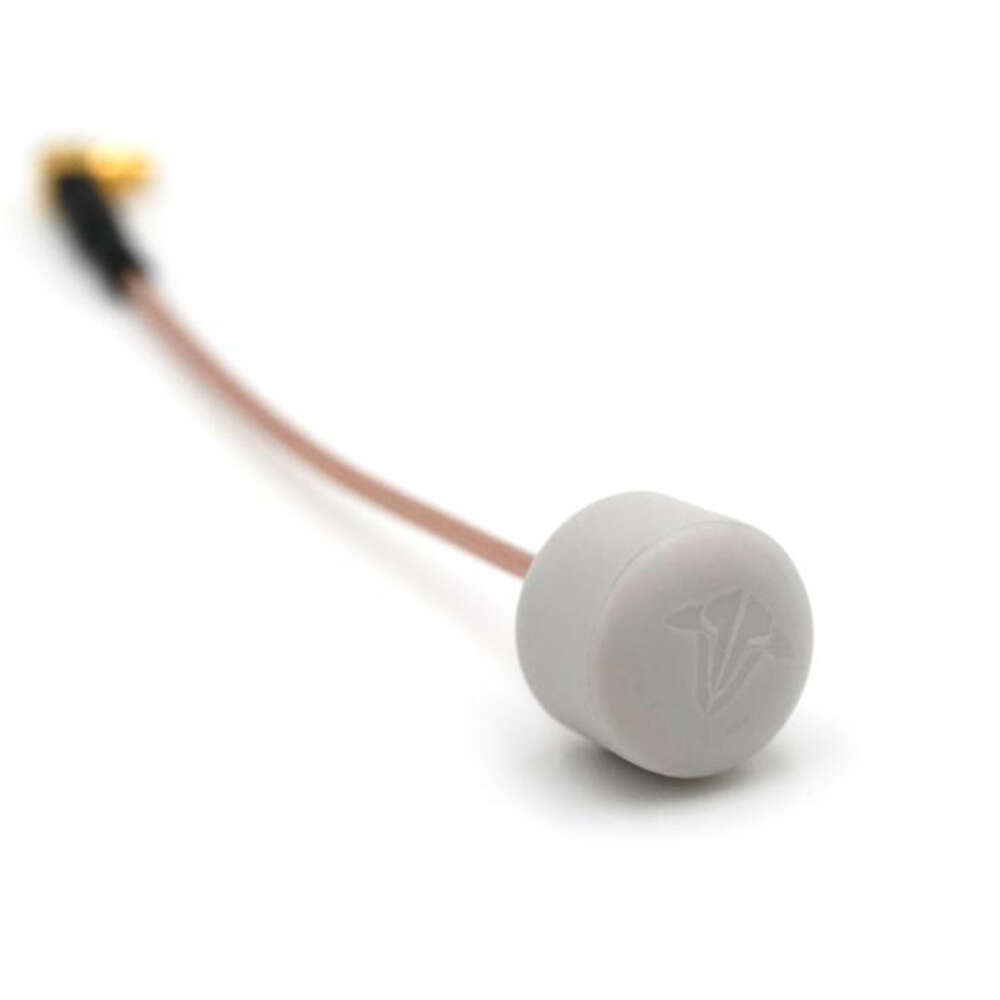

TBS Triumph Pro 5.8GHz FPV Antenna LHCP (U.FL)

See all of our TBS Products!

Continuing the tradition of the TBS Triumph and following the tradition of VideoAerialSystem’s “Performance First” mantra, TBS is proud to present the TBS Triumph Pro! We managed to decrease the size of the TBS Triumph design while maintaining range and durability. The circular signal rejection signal consistency was further improved over the traditional TBS Triumph, making this antenna better in every way!

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allows mounting in exposed places, where the signal propagates better. The antenna comes in 4 connector flavors: U.FL, MMCX, MMCX 90º, and SMA.

Features:

• Manufactured and tested to the highest standards
• Best-in-class range and signal quality
• Incredibly small and low weight
• Ultrasonic welded and foam-infused cover for ultimate crash-protection
• Double-jacket semi-rigid cable for heavy impact resistance

Technical specifications:

• Frequency range: 5500-6000MHz
• Gain: 1.26dbic
• Axial Ratio:   0.74
• Cable: RG402 (heavy duty)
• Weight: 11.5g
• Height: 85mm, 3.3 in
• Connector: u.FL
• Dimensions (PDF)

Package contents:

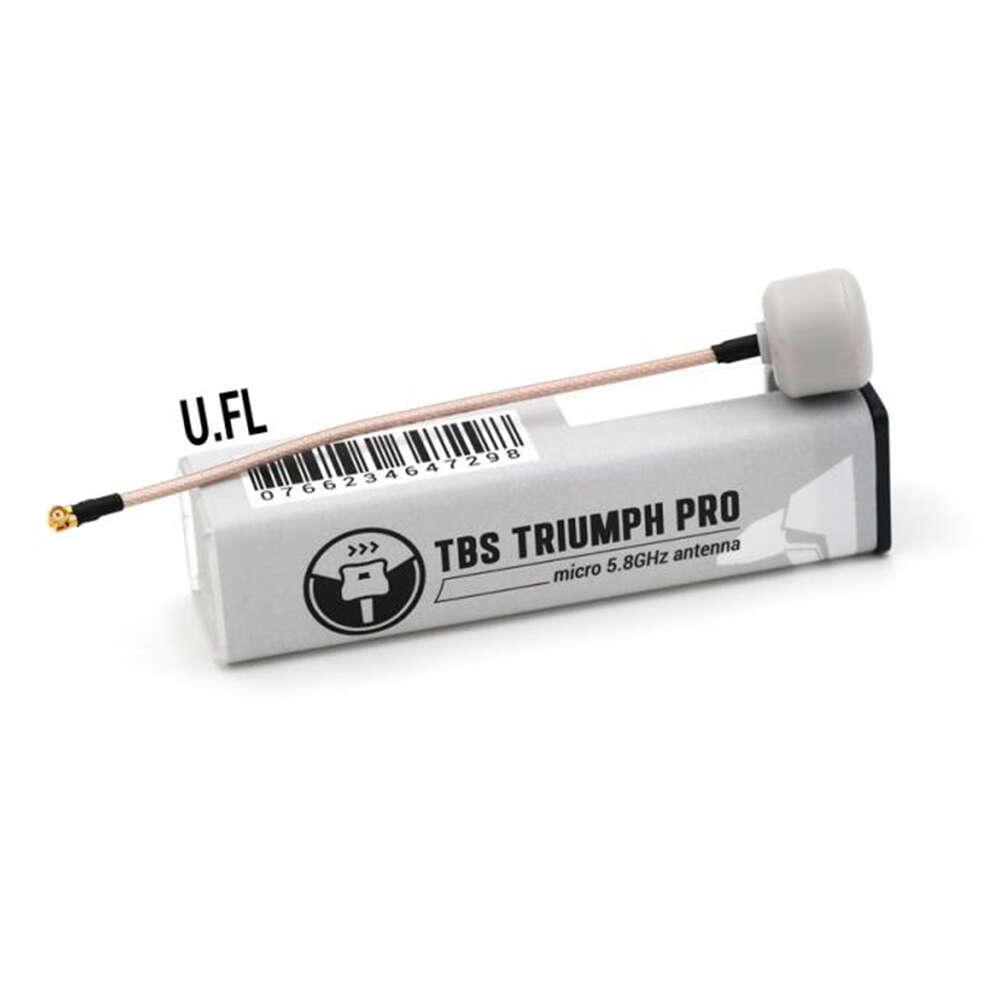

• 1x TBS Triumph Pro u.FL
