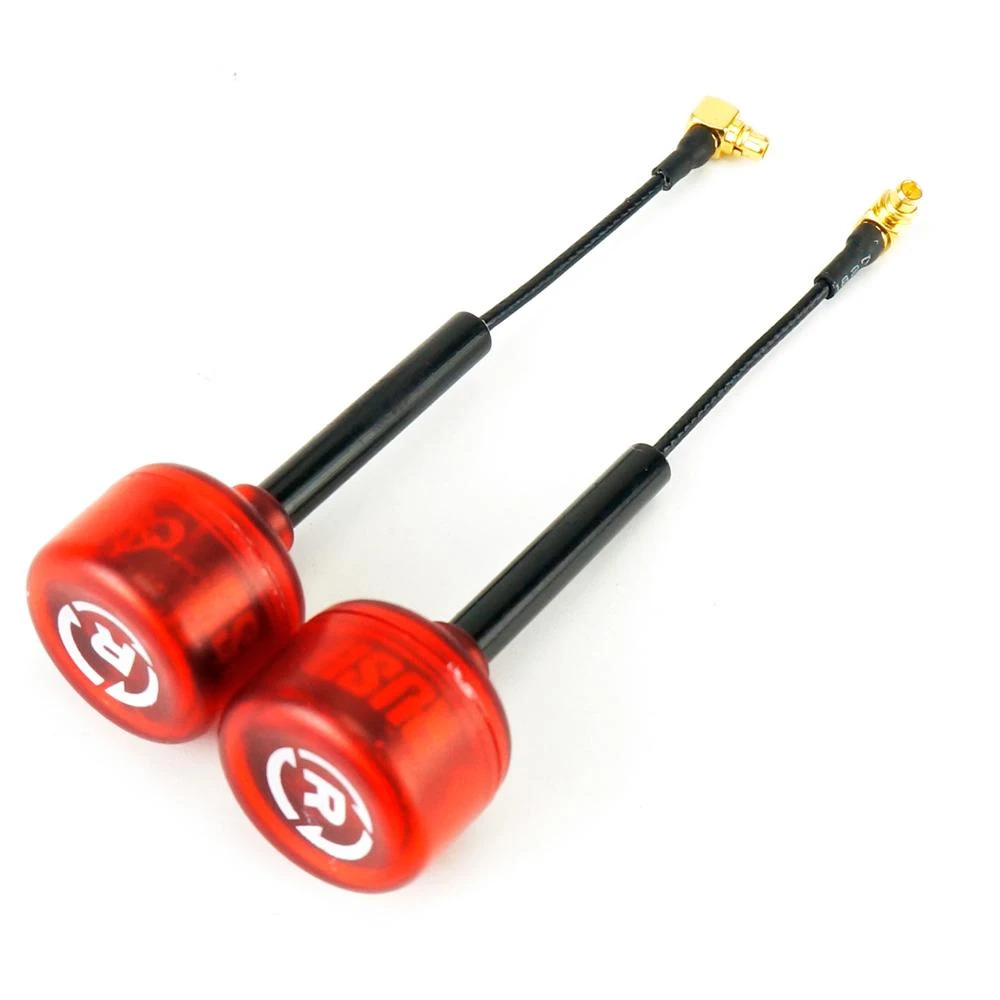

RUSHFPV Cherry Antenna 90 Degree MMCX LHCP/RHCP

$24.99

Rush FPV Antennas are optimized for FPV racing drones, with maximal signal coverage and a sturdy design that will reduce interference.

Free Shipping

RUSHFPV Cherry Antenna MMCX LHCP/RHCP

RUSHFPV Cherry Antenna Extended SMA LHCP/RHCP

Optimized for FPV racing drones
Maximum signal coverage. 5.6-6GHz bandwidth covers all of the raceband and all channels have nearly uniform transmission strength.
Perfect circular polarization axis ratio. Effectively suppress screen flicker caused by multi-path interference.
Small and sturdy. Optimized design obtained through massive impact tests. The flexible tube can withstand angle bends and crash impacts to avoid cable damage.
Thin cable. Teflon skin, double shielded RG-137 coaxial cable with the silver plated core. This wire is soft and flexible and has a low signal loss.
Between 5650 and 5950MHz, VSWR is below 1.2 meaning transmission efficiency is up to 98% This can also help reduce VTX heat.
Quick installation. Antenna clips are designed to be the same size as standard flange SMA sockets. The length of the antenna tube can be cut to meet your needs.
Quality Assurance. Cherry antennas are tuned for performance by the Rush FPV Professional Microwave Laboratory, and each antenna is qualified by a network analyzer before leaving the factory.

RUSHFPV Cherry Antenna 90 Degree MMCX LHCP/RHCP
