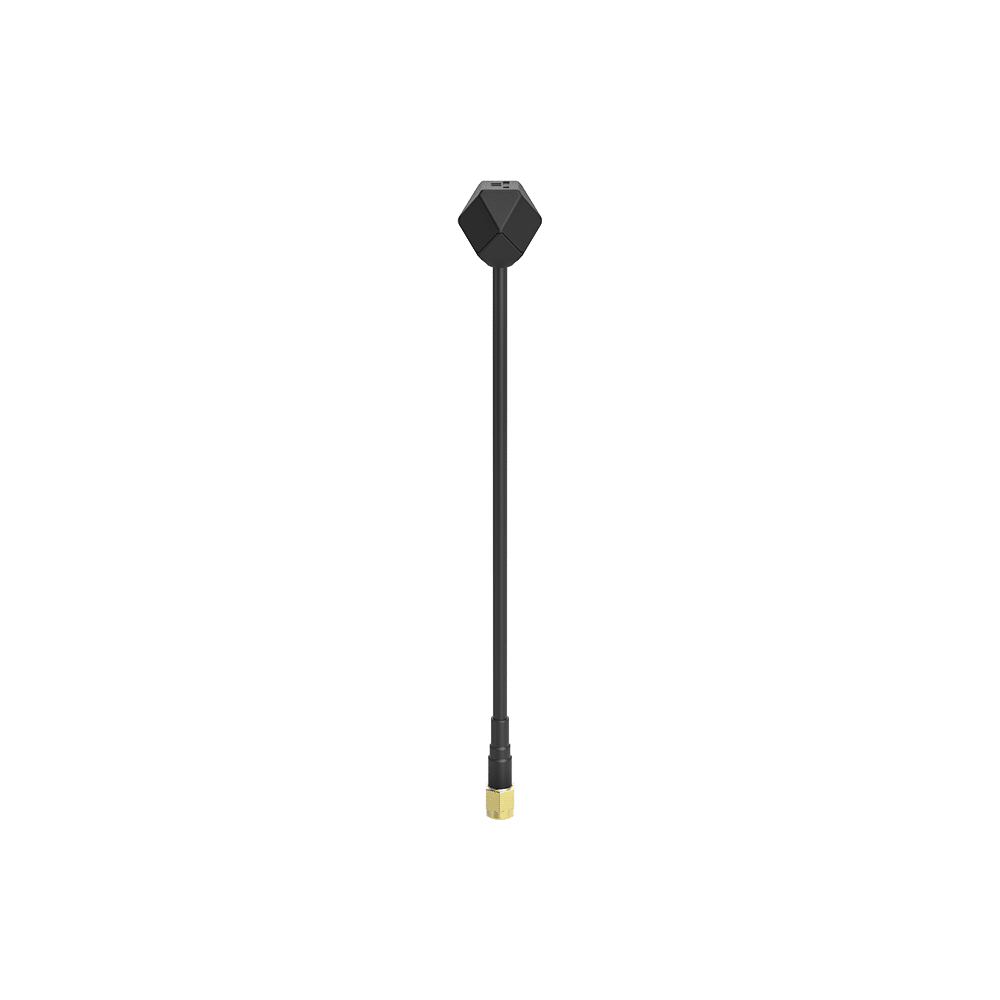

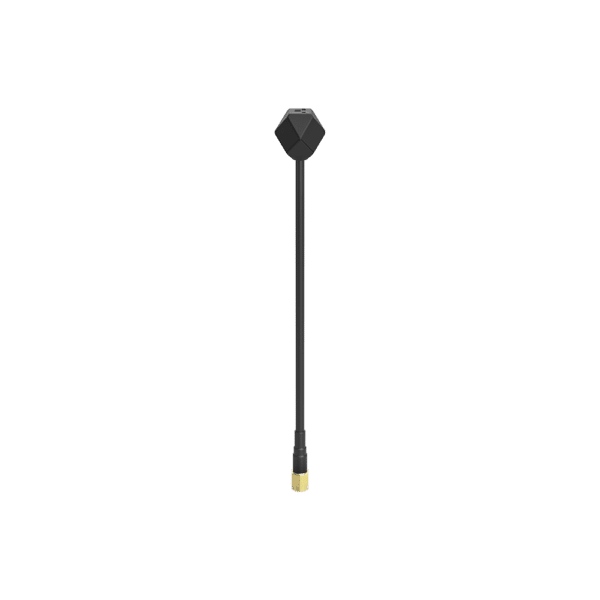

iFlight Albatross V2 5.8GHz 150mm Antenna – LHCP
Check out all of our iFlight Products!

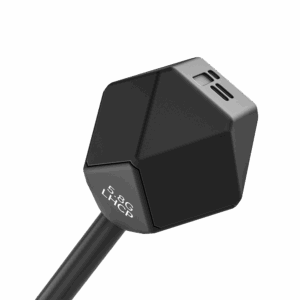

Upgrade your FPV setup with the iFlight Albatross V2 5.8GHz Antenna, designed for superior signal clarity and durability. Built with advanced ultrasonic welding technology, this LHCP (Left Hand Circular Polarization) antenna is lighter, stronger, and more reliable than ever. Its rugged hexagonal design ensures enhanced durability, while the right-angle fixation provides convenient installation and optimal positioning for your DJI Digital FPV system.
Whether you’re racing, freestyling, or capturing cinematic footage, the Albatross V2 delivers consistent performance with high gain and low VSWR (Voltage Standing Wave Ratio). Perfect for matching with DJI Digital FPV systems, this antenna ensures seamless communication between your drone and goggles, reducing signal interference and improving overall flight stability.
Key Features:

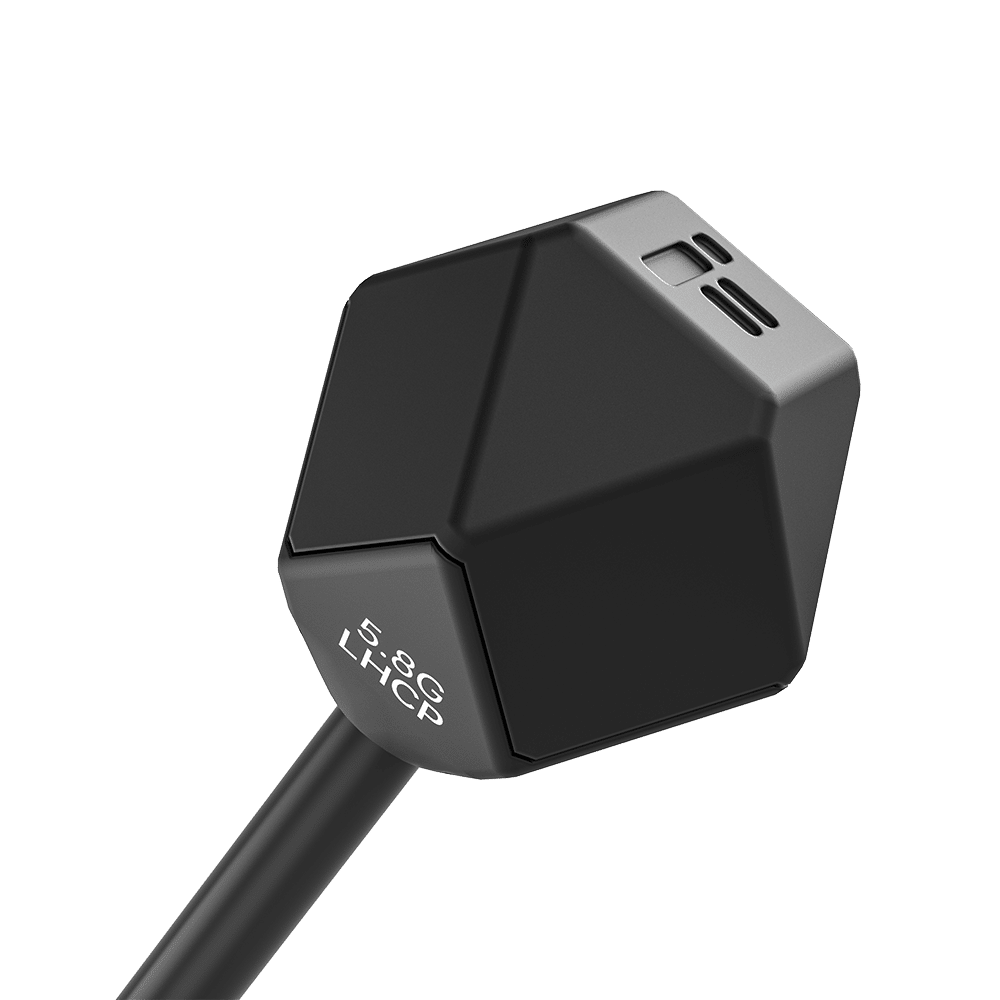

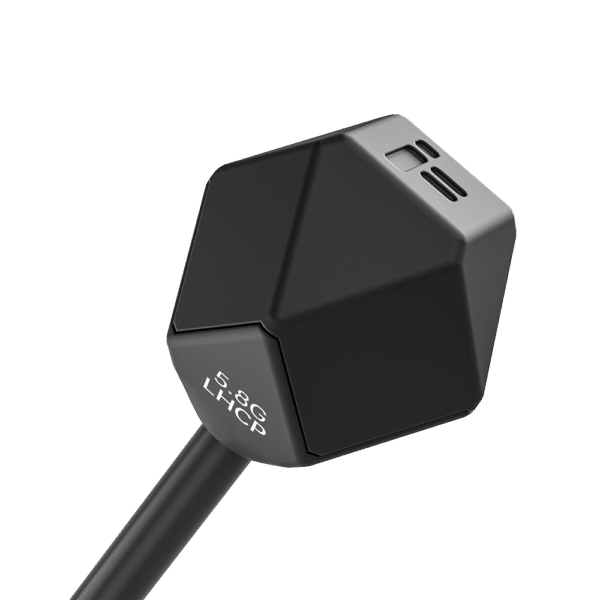

- Enhanced Durability: Hexagonal design and ultrasonic welding technology for a lightweight yet sturdy build.
- High-Performance Signal: Consistent gain and low VSWR for reliable signal transmission.
- LHCP Compatibility: Matches DJI Digital FPV systems for optimal performance.
- Right-Angle Design: Easy installation and secure fixation for hassle-free use.
- Lightweight and Compact: Weighs just 11.5g, making it ideal for FPV drones.
Specifications:

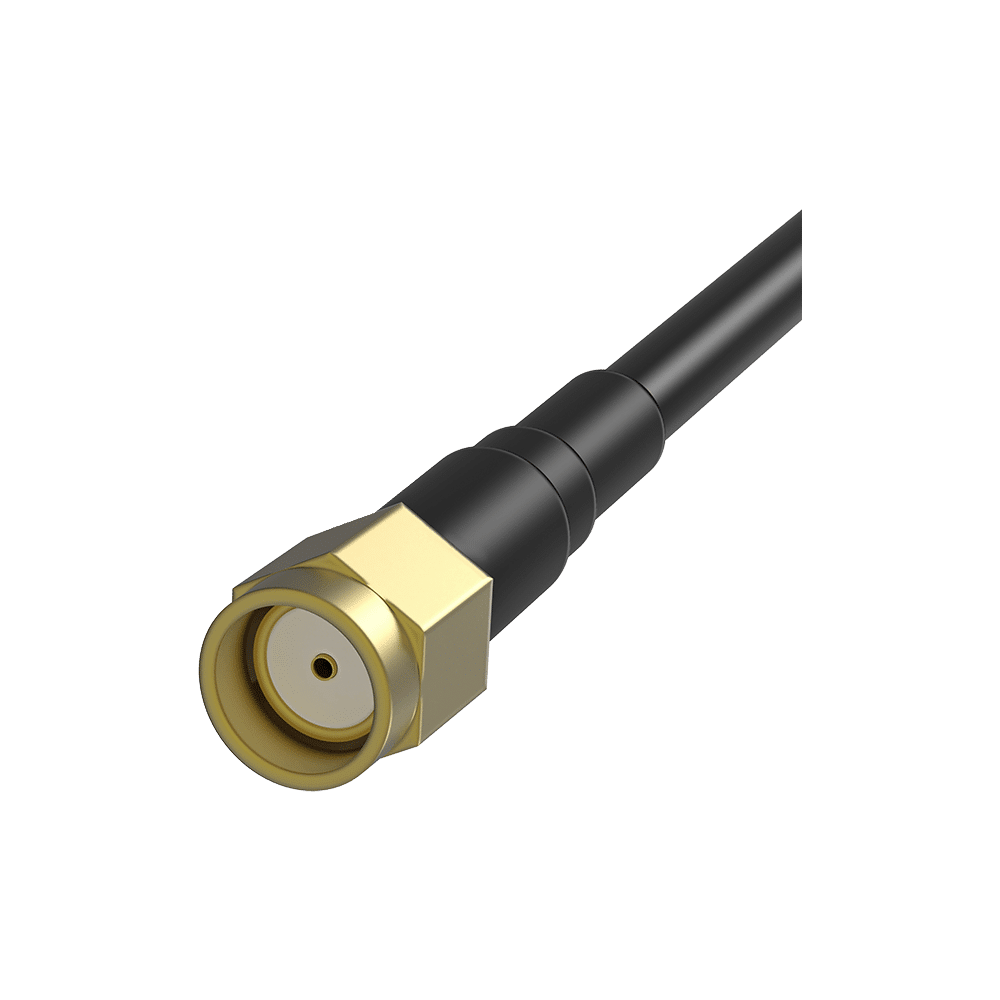

- Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna
- Frequency Range: 5.3GHz-6GHz
- Max Gain: 2.72dBi (5621MHz) | Min Gain: 2.12dBi (5436MHz) | Avg Gain: 2.42dBi
- Max VSWR: 1.72 (5326MHz) | Min VSWR: 1.35 (5917MHz) | Avg VSWR: 1.62
- Radiation Efficiency: Max 84.25% (5917MHz) | Min 73.5% (5326MHz) | Avg 80.3%
- Polarization: LHCP | Cross Polarization Suppression: -26.7dB
- Cable: RG141 | Weight: 11.5g
- Size: Total Length: 180mm (±2mm) | Cable Length: 150mm
