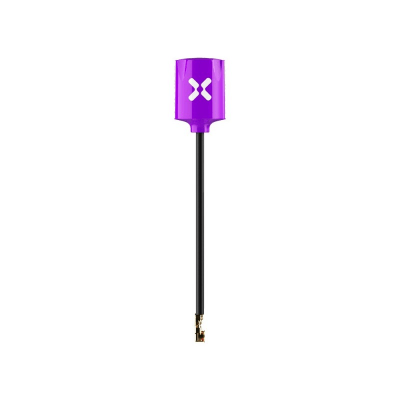

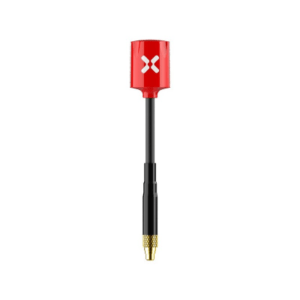

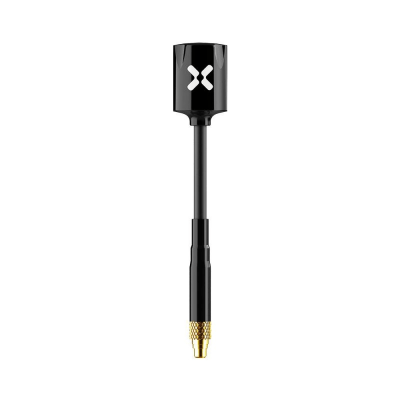

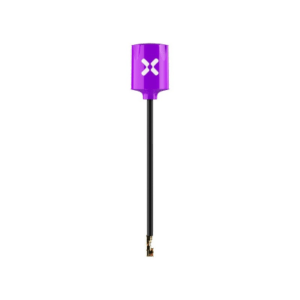

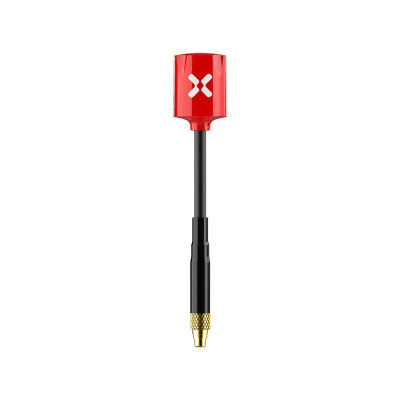

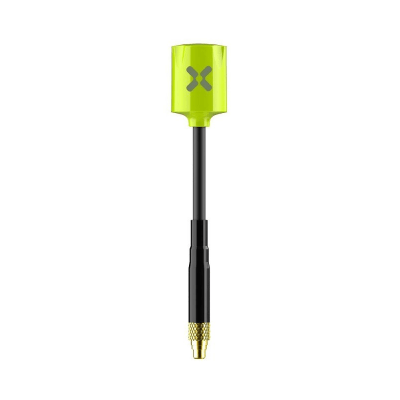

Foxeer 5.8G Micro Lollipop 2.5dBi High Gain Super Tiny FPV Omni Antenna
See all of our Foxeer Products and all of our 5.8G Antennas!
The exceptional performance and reasonable cost of Foxeer FPV antennas have earned them a well-deserved reputation. Their latest offering, the micro Lollipop antennas, brings that same level of performance to smaller builds such as Toothpick and Ultralite. However, it’s worth noting that these antennas are not limited to smaller rigs and can be used in larger setups as well!

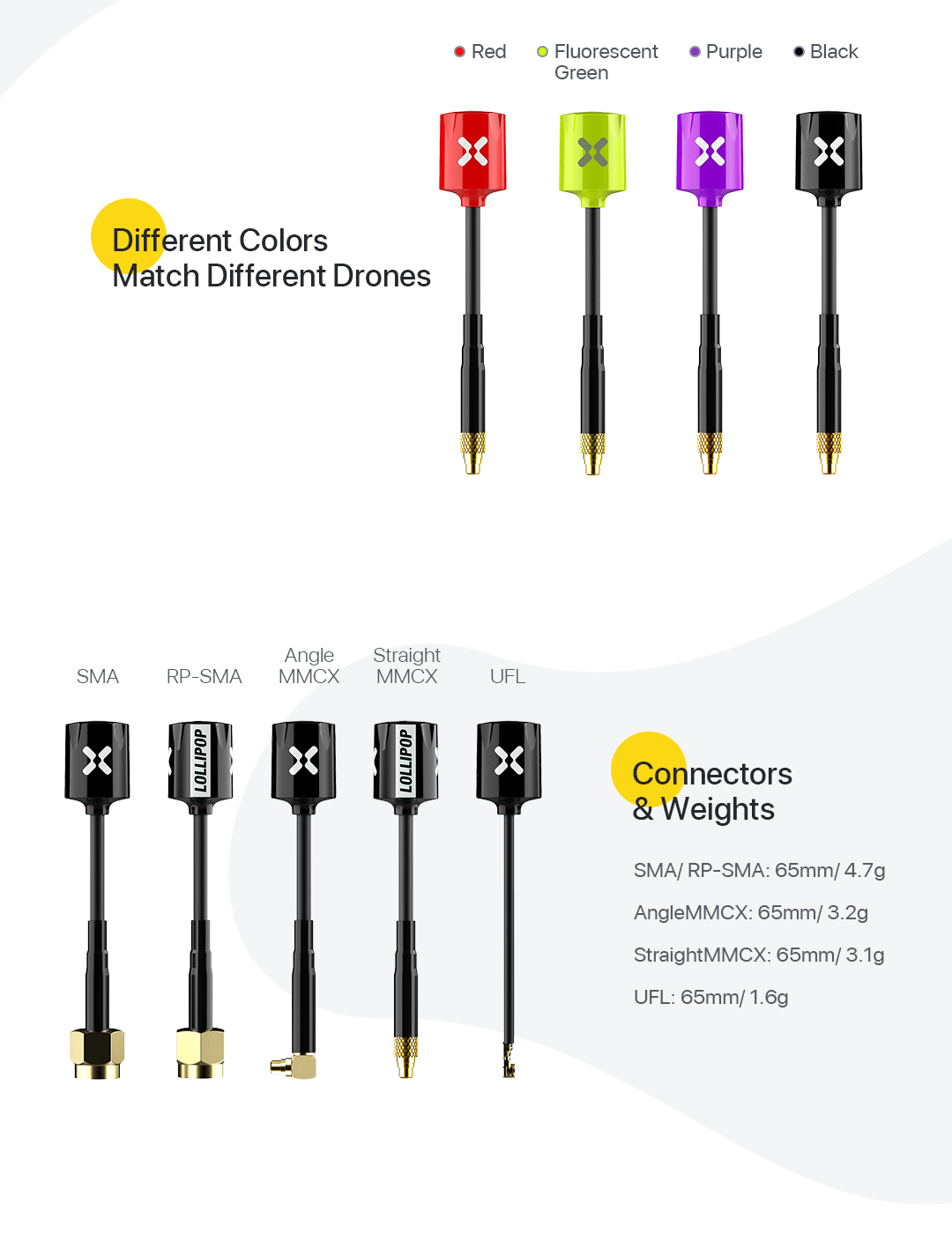

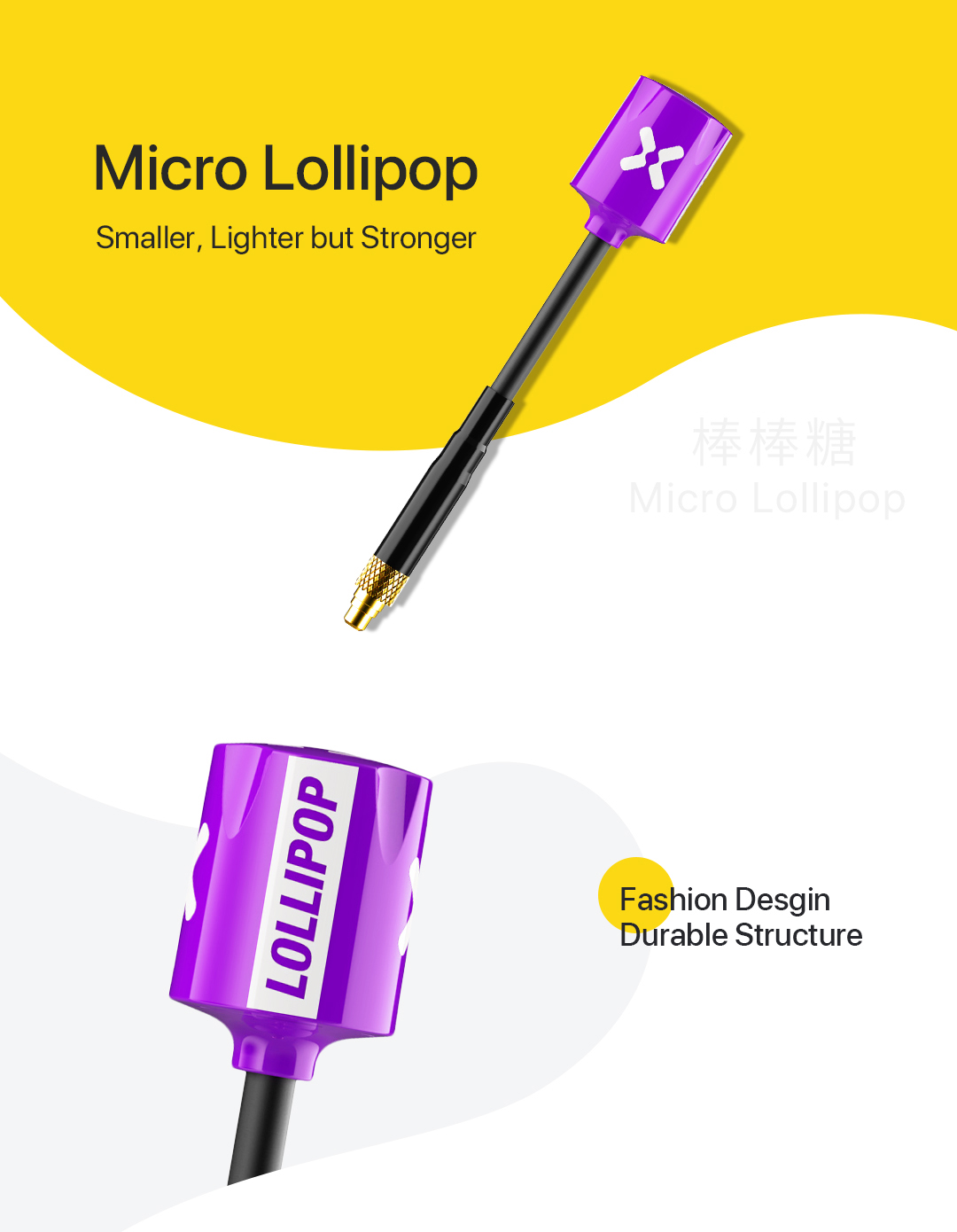

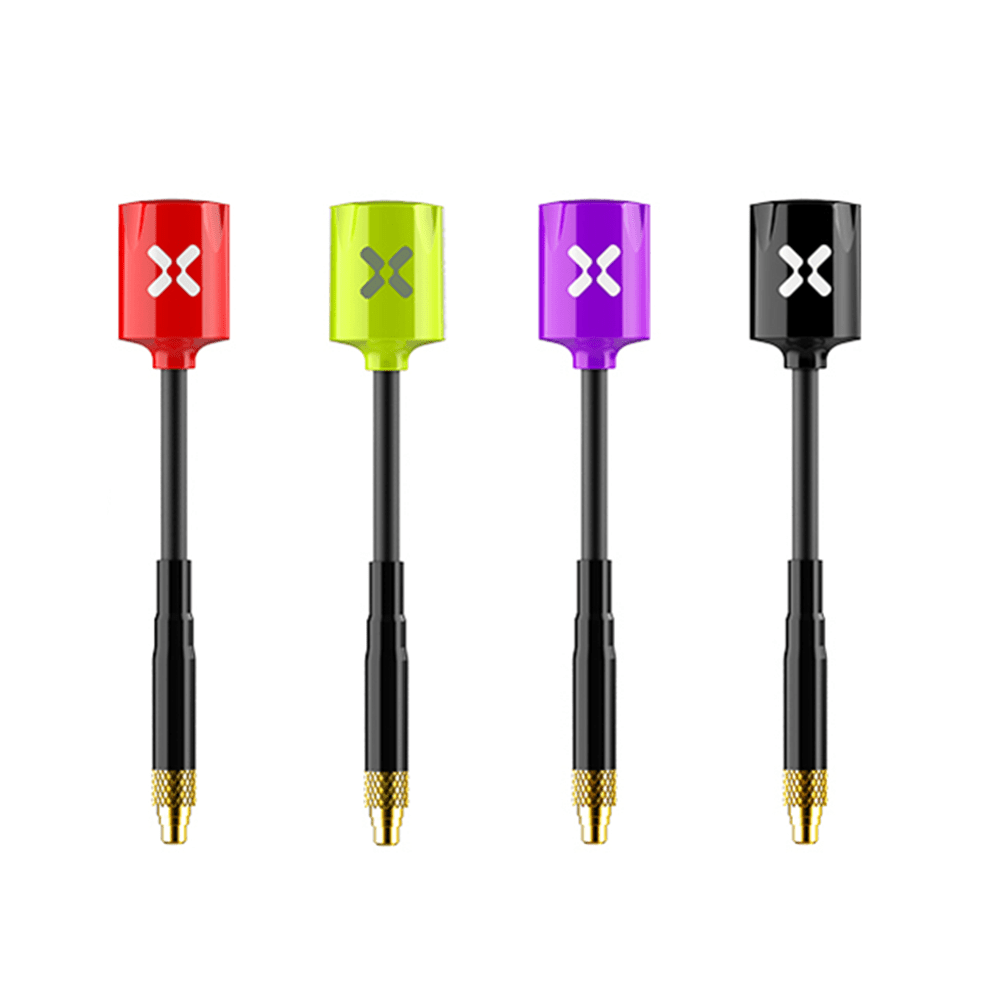

This product boasts a durable structure that is smaller, lighter, and stronger than ever before. It comes in four different colors and is ultra-lightweight, making it easy to transport and install. Here are the detailed specifications:
- Center Frequency: 5.7GHz
- Gain: 2.5dBi
- Axial Ratio: Nearly 1
- Band Width: 5.5G~6GHz
- Radiation Efficiency: 98%
- SWR: 1.06 at Center Frequency

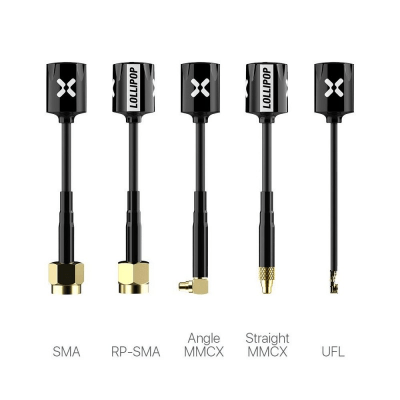

- Connector: SMA/RPSMA/StraightMMCX/AngleMMCX/UFL
- Dimension: 11*65mm
- Cable Length: 51mm
- Polarization: RHCP/LHCP
- Case Material: PC+ABS
- Cable: RG178 SFX086
- Weight: 1.6 Grams (with u.Fl connector)
This set includes two Micro Lollipop Antennas.
Specifications:
| Center Frequency | 5.7GHz |
| Gain | 2.5dBi |
| Axial Ratio | Close to 1 |
| Band Width | 5.5G~6GHz |
| Radiation Efficiency | 98% |
| SWR | 1.06 at Center Frequency |
| Connector | SMA/RPSMA/StraightMMCX/AngleMMCX/UFL |
| Dimension | 11*65mm |
| Cable Length | 51mm |
| Polarization | RHCP/LHCP |
| Case Material | PC+ABS |
| Cable | RG178 SFX086 |
| Weight | SMA/RP-SMA: 4.7g |
| StraightMMCX: 3.1g | |
| AngleMMCX: 3.2g | |
| UFL: 1.6g | |
| Cable | 2pcs Antennas |
