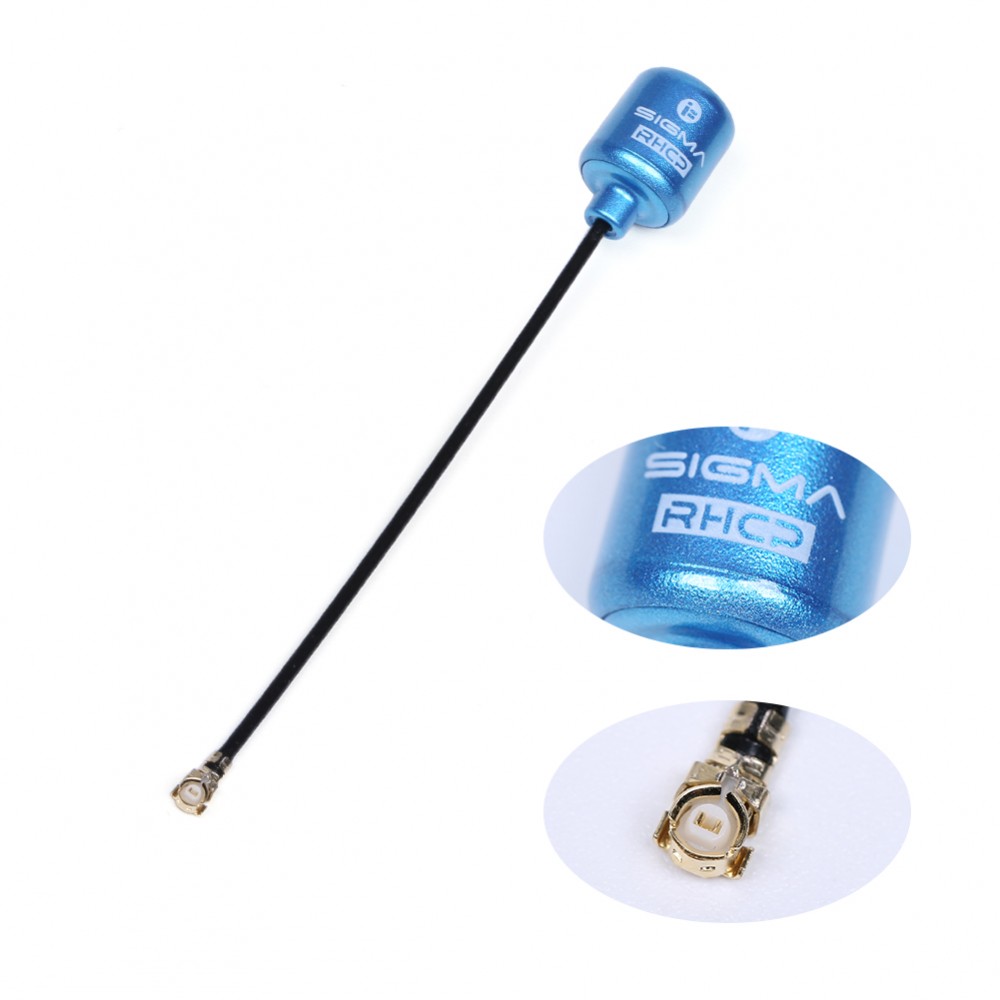

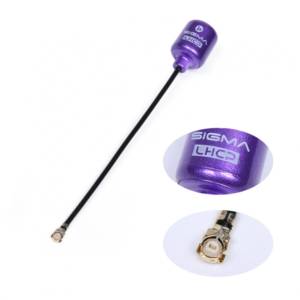

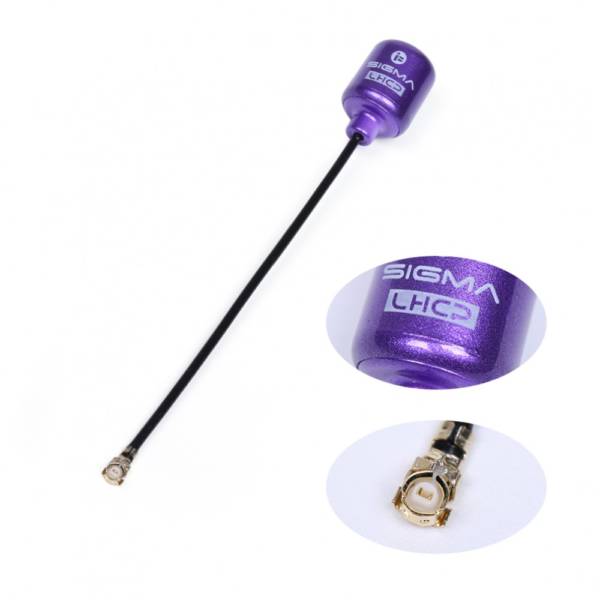

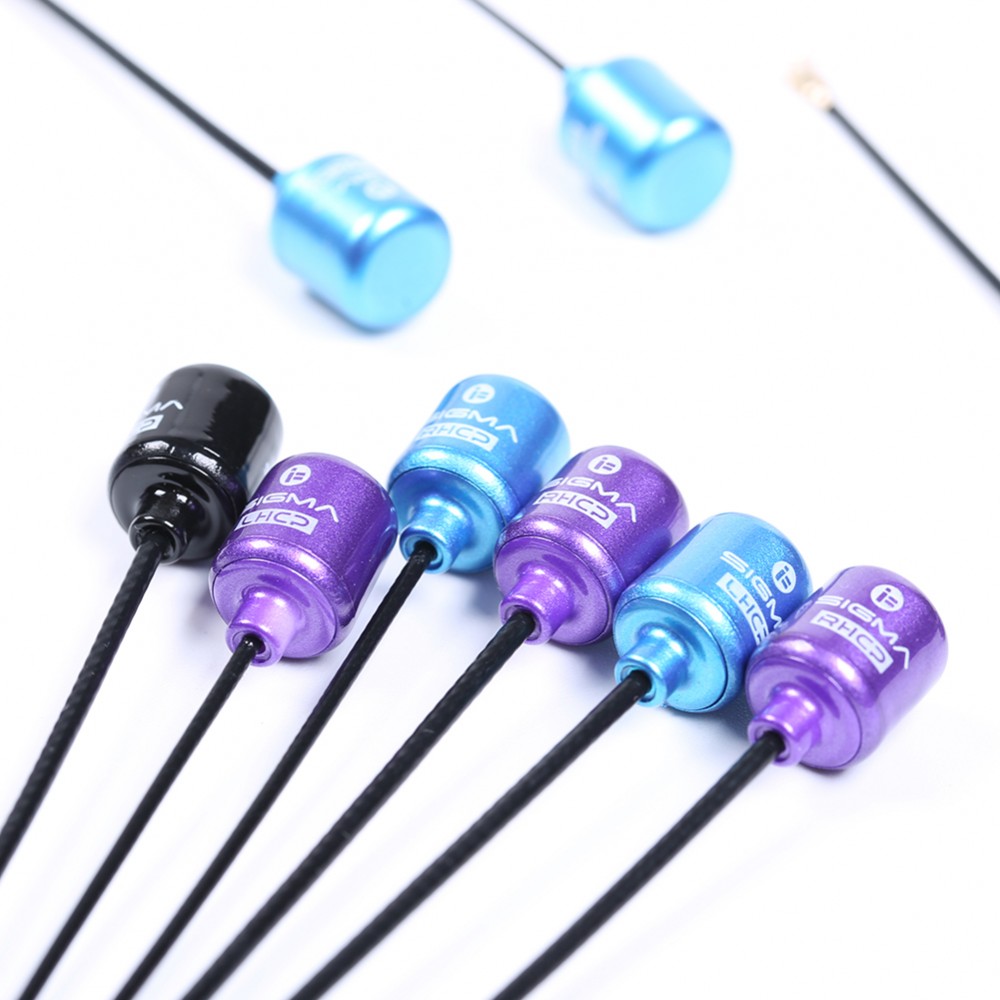

iFlight SIGMA 5.8GHz 60mm RHCP/LHCP FPV Antenna – MMCX/UFL – (Pick your Color)
Durable 5.8G antenna for Analog or Digital FPV. The perfect upgrade part for your DJI Air Unit to avoid buying fragile stock antennas again and again…Â Use LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!Â
Specifications:
- Model: SIGMA 5.8GHz 60mm RHCP/LHCP FPV Antenna ( MMCX/UFL )
- Frequency range:Â 5500-6000MHz
- Gain:Â 3dbi
- Axial Ratio: 0.7
- Cable: RG1.37Â
- Weight: 1.2g
- Length: 60mm/ total length 75mm
- Interface:Â Â ipex/UFL
- Polarization: RHCP/LHCP
- SWR: ≤1.5 (ON 5.8GHz)
Package includes:
1pc x SIGMA 5.8GHz 60mm RHCP/LHCP FPV Antenna ( MMCX/UFL )
