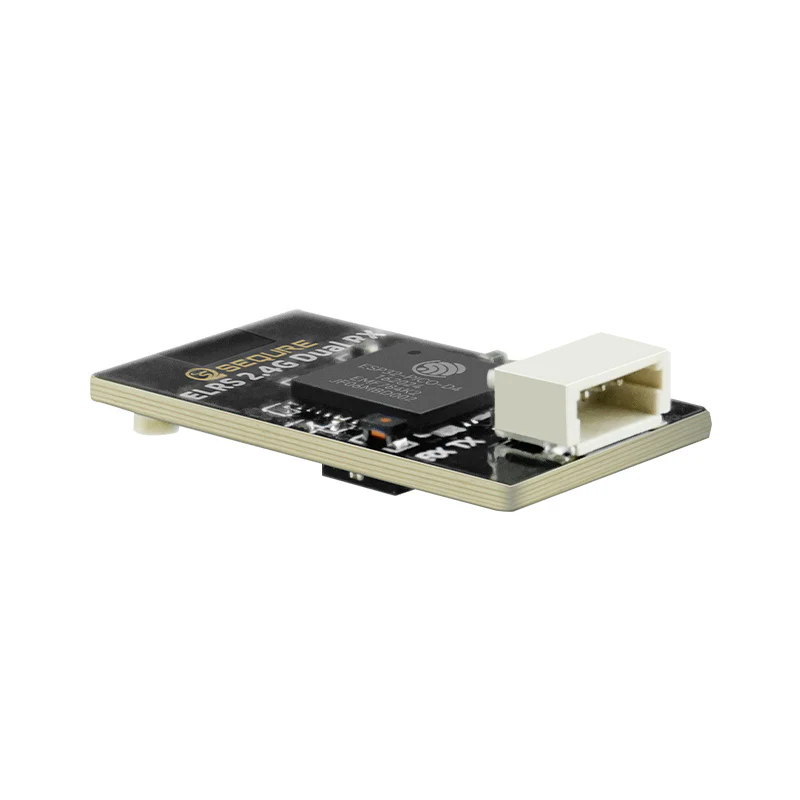

Sequre 2.4GHz High Quality ELRS Receiver w/ Plug – Dual Antenna 80mm
See all of our Sequre Products!
-
Product Description:

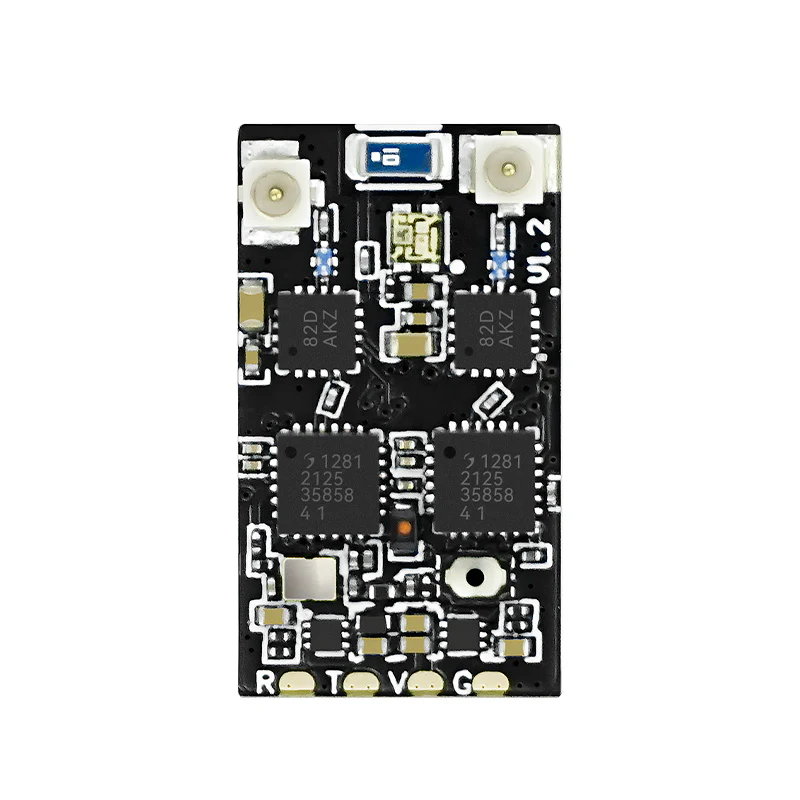

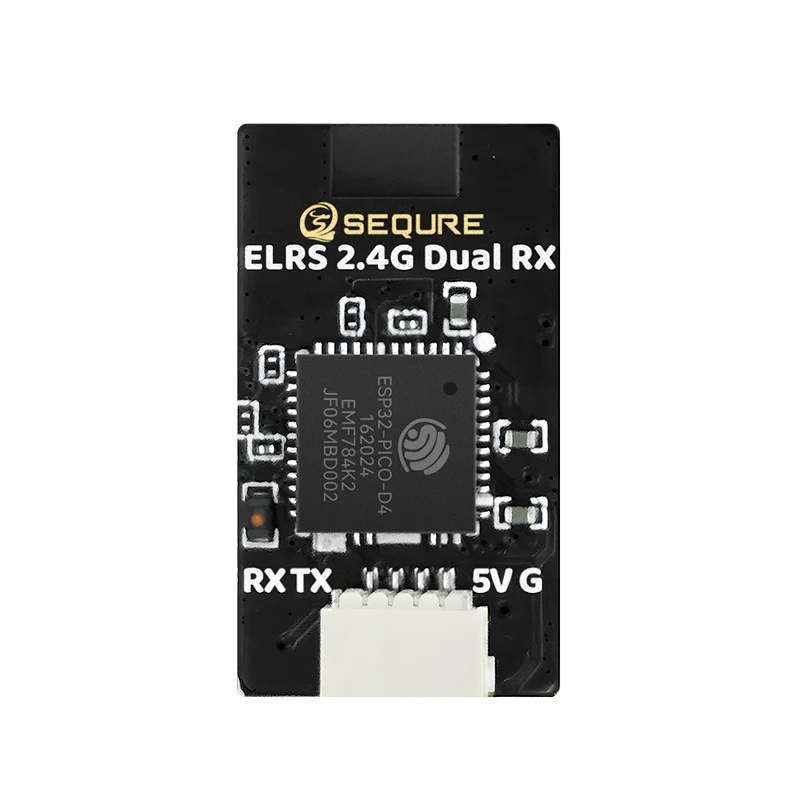

(1) High-performance ESP32-PICO-D4 master control, dual-frequency SX1281 chip, true diversity dual antenna receiver.
(2) High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.
(3) High-speed data transmission, support F1000Hz and F500Hz ultra-high refresh rates, meet the low latency requirements of racing players.
(4) Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer.
(5) Integrated with dual-channel high-power PA+LNA low-noise amplifier and 100mW (20dBm)*2 telemetry return, the return of flight data is more stable.
(6) Onboard RGB color indicator, quickly identify different working status.
(7) Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.Parameters of Product:
Model SEQURE ELRS 2.4GHz Dual RX Factory Firmware SEQURE 2.4GHz Dual RX_3.4.0 MCU ESP32-PICO-D4 RF Chip SX1281 Crystal Oscillator Type Temperature Compensated Crystal Oscillator（TCXO） PA Power (Telemetry Power) 100mW（20dBm）* 2 LNA YES Indicator Light Colorful RGB Light Frequency Band 2.4GHz ISM Protocol CRSF RF Mode Dual /True Diversity/True diversity dual antenna Antenna Interface Ipex1 Receiver Interface SH1.0-4P connector, 2.54-4P pad Working voltage 5V Weight 1.5g Size 23*12.8*5mm Package included:

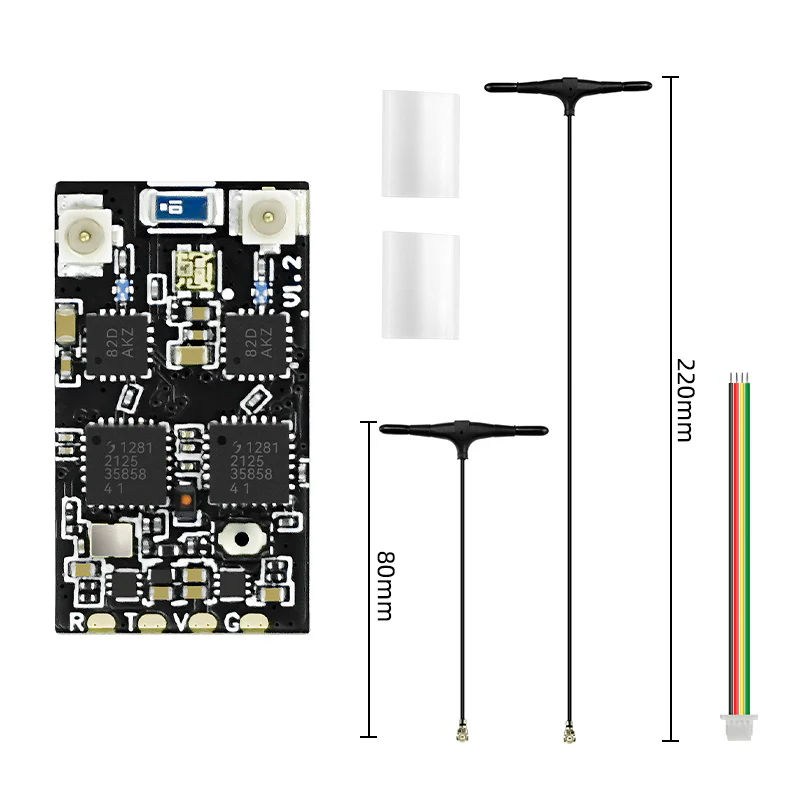

SEQURE ELRS 2.4GHz Dual RX×1
2.4G antenna×2
30AWG 100mm single-end SH1.0-4P cable×1
12*30mm heat shrink tube×2Overall Dimension:

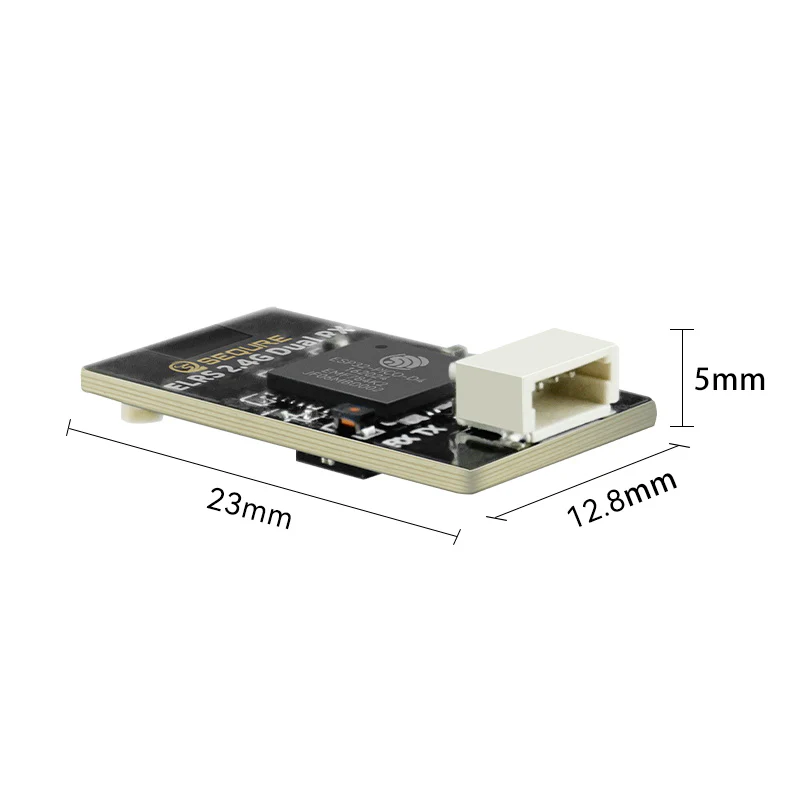

(1)Â Product Size: 23*12.8*5mm

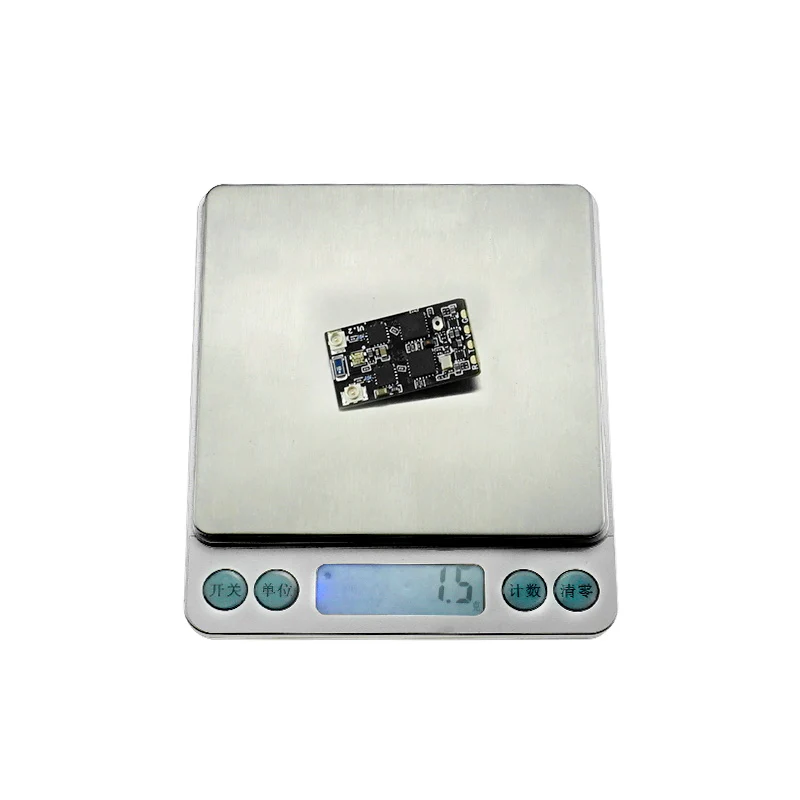

Net Weight Of Product: 1.5g(2)Â Package Size: 150*100*15mm
Packing Weight: 11.5g(3) Package Size (Including Outer Carton)：200*110*40mm
Packing Weight (Including Outer Carton)：56g -
Packing Weight (Including Outer Carton)：52.5g
